8000BPH Bottle Carbonated Beverage Filling Machine /Carbonated Drink Production Line Price

This machine is one cost-effective machine suitable for washing, filling and sealing bottled carbonated soft drinks.It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling repose fully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can be equipped long-distance control system.

Video

Detailed Images

Machine Parameters

Main features :

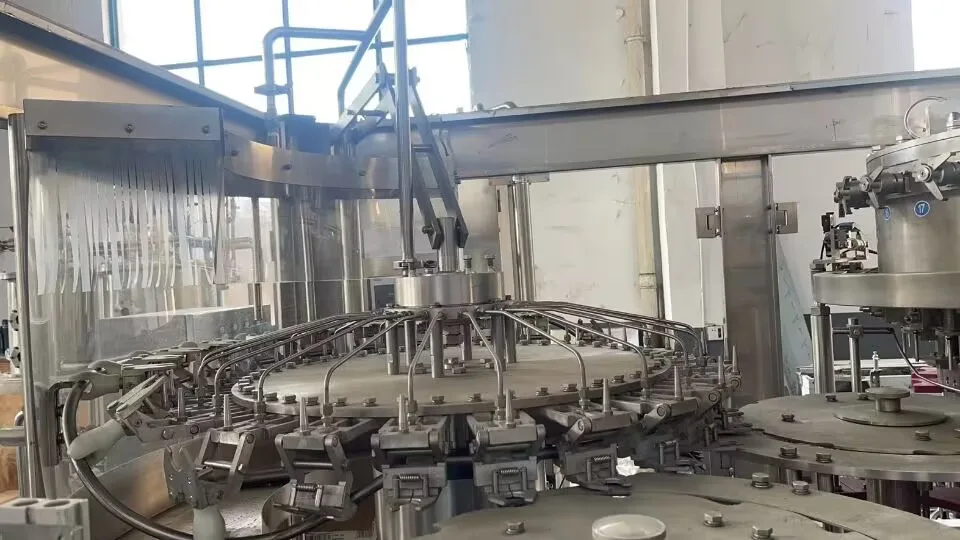

1.Washing Part

All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean, 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing, 304 stainless steel washing pumps

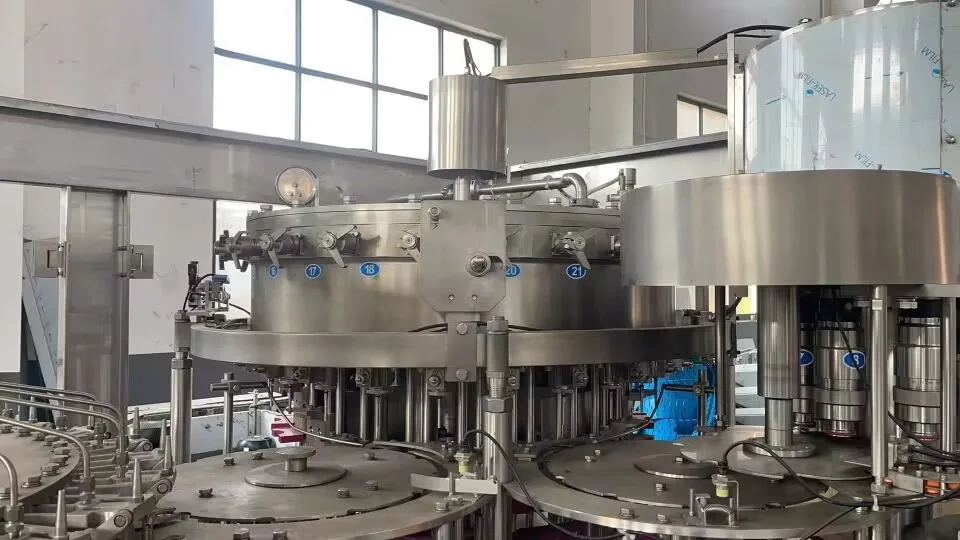

2.Filling part

Isobaric filling , & filling smoothly & steadily

The centering oriented adopts guide rod with special bottle neck holding

Filling temperature：0～４℃

All 316 stainless steel contact parts & liquid tank, fine polish, easy to clean

3. Capping part:

Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

All 304 stainless steel construction

No bottle no capping and Automatic stop when lack of bottle

Project Name: Carbonated Soft Drink Filling Machine
Model	DXGF 24-24-8
Washing Nos	24
Filling Nos	24
Capping Nos	8
Capacity(BPH)	8000
Suitable bottle and cap	PET circular or square with screw cap
Bottle Volume	150ml to 2.5Ltr (Customized)
Bottle diameter(mm)	Dia50-Dia115mm
Bottle heighter	160-320mm
Compress air pressure(Mpa)	0.3-0.4Mpa
Washing medium	Aspetic water
Rinsing pressure(Mpa)	>0.06Mpa<0.2Mpa
Filling temperature	0～４℃
Filling theory	Isobaric filling
Total powder3	3KW
Dimension (meter)	2.882.182.65M

Production Lines Flow Chart

Water Treatment System

Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc. Raw water source: Bore whole, river, well, mountain spring, lake, etc

View Details

Blowing Molding System

With our automatic blow molding machine, you can effortlessly create PET plastic containers and bottles in various shapes. It is widely utilized in the production of carbonated beverage bottles, mineral water containers, pesticide bottles, edible oil containers, cosmetic bottles, wide-mouth containers, and hot-fill bottles.

View Details

Automatic Labeling Machine

This machine adopts international advanced technology; cover the circle label on the PET bottle. And then hot shrinking to fix on the position which bottle body designated.This machine’s structure is compact, and suitable for the production line of different direction and different height. The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.

View Details

Shrink Wrapping Machine

Designed for mass production packaging lines, the Pet Bottle Shrink Wrapping Machine is an automatic L-type sealing and cutting system. It can accommodate products of different widths and heights and features a contact function for efficient small product packaging.

View Details

Water Beverage Soft Drinks Bottle Carton Box Packaging Machine

It can open vertical cardboard and correct the right-angle automatically. Automatic carton opening machine is a case packer that deals with unpacking ,carton flexing and packing. This machine adopts PLC and touch screen to control. As a result, it is more convenient to operate and manage. Additionally, it can reduce labour input and lower labour intensity. It is the ideal choice of the automation producing lines. It will greatly reduce the cost of packing. Hot melt adhesive can also be utilized in this machine.

View Details

Automatic Pallet Stretch Wrapping Machine

In short, the pre stretching wrapping machine is to stretch the film in advance in the mold base device when wrapping the film, so as to improve the stretching proportion as much as possible, use the wrapping film to a certain extent, save materials and save packaging costs for users. Pre stretching wrapping machine can save wrapping film to a certain extent

View Details

Carbonated Soft Drinks Mixing System

Beverage CO2 mixer, used in the production of acidification and mixing of various gas contained beverages(water, syrup,Carbon dioxide), such as citric drink, coke, juice etc. aerated water, is the main equipment in a drink production line(especially the key equipment in the middle and high grade of drink production).

View Details

Why Choose US

We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
We will supply the spare parts fast and with cost price.
