Air Conveyor

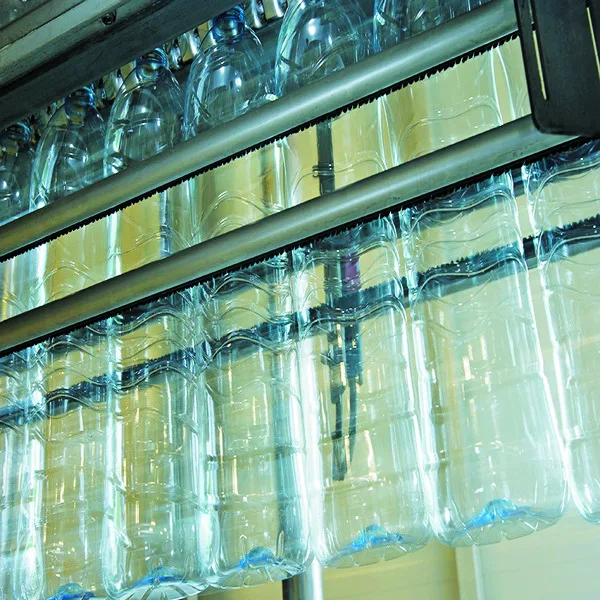

Air conveyor is a bridge between the unscrambler/blower and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. Two set of photoelectric switch settled in the bottle inlet of the air conveyor. The bottle is transferred to 3 in 1 machine through wind.

Video

Detailed Images

Machine Parameters

Main features :

Except support arm etc. which are made of plastic or rilsan material, other parts are made of SUS AISI304.

Air blower is settled with air filter to prevent dust coming into the bottle.

There is an adjustable joint settled in air conveyor. Do not have to adjust the height of unscrambler and air conveyor to meet the demand of different bottle, only adjust the height of bottle inlet.

There is a block bottle clear device driven by cylinder. When bottle block in the inlet, it clear the bottle automatic, this can avoid breaking the parts of unscrambler/blower.

Model FS-00
Capacity 300 cans/min
Size and weight of transport Semidiameter of bend swerve 1200mm
Applicable bottle size Neck size 25mm~38mm
Energy consumption Power 2.2KW
Dimensions Size of section 200×220mm
Machine volume Depend on plan

Air Conveyor Configuration

No. Name Material Brand
1 Side panels SUS304,thickness 1.5mm
2 Outrigger SUS304
3 Bottle strips 9.6 million ultra-polymers Shanghai Pinsu
4 guardrail Polyethylene/bristle brush Shanghai Li Lai
5 Anchor plate Reinforced nylon + stainless steel screw Shanghai Li Lai
6 Filter Camfil Sweden
7 fan Siemens
8 Frequency converter FC051 series Danfoss
9 Low voltage electrical components Schneider
10 PLC controller Siemens
11 touchscreen HMI

Production Lines Flow Chart


Warning: Invalid argument supplied for foreach() in /home/customer/www/sinopakmachinery.com/public_html/wp-content/themes/iwonder/functions.php on line 253

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
