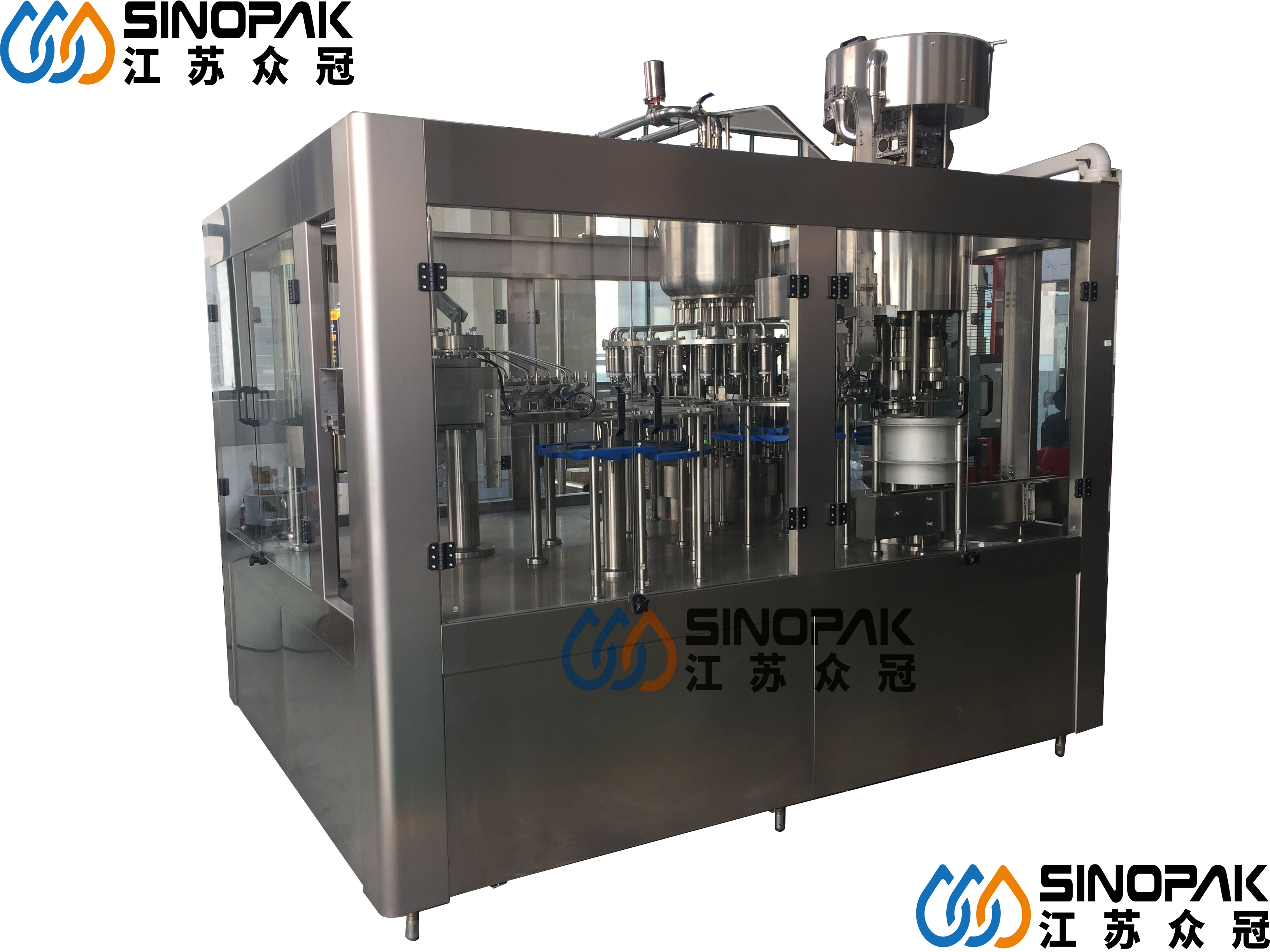

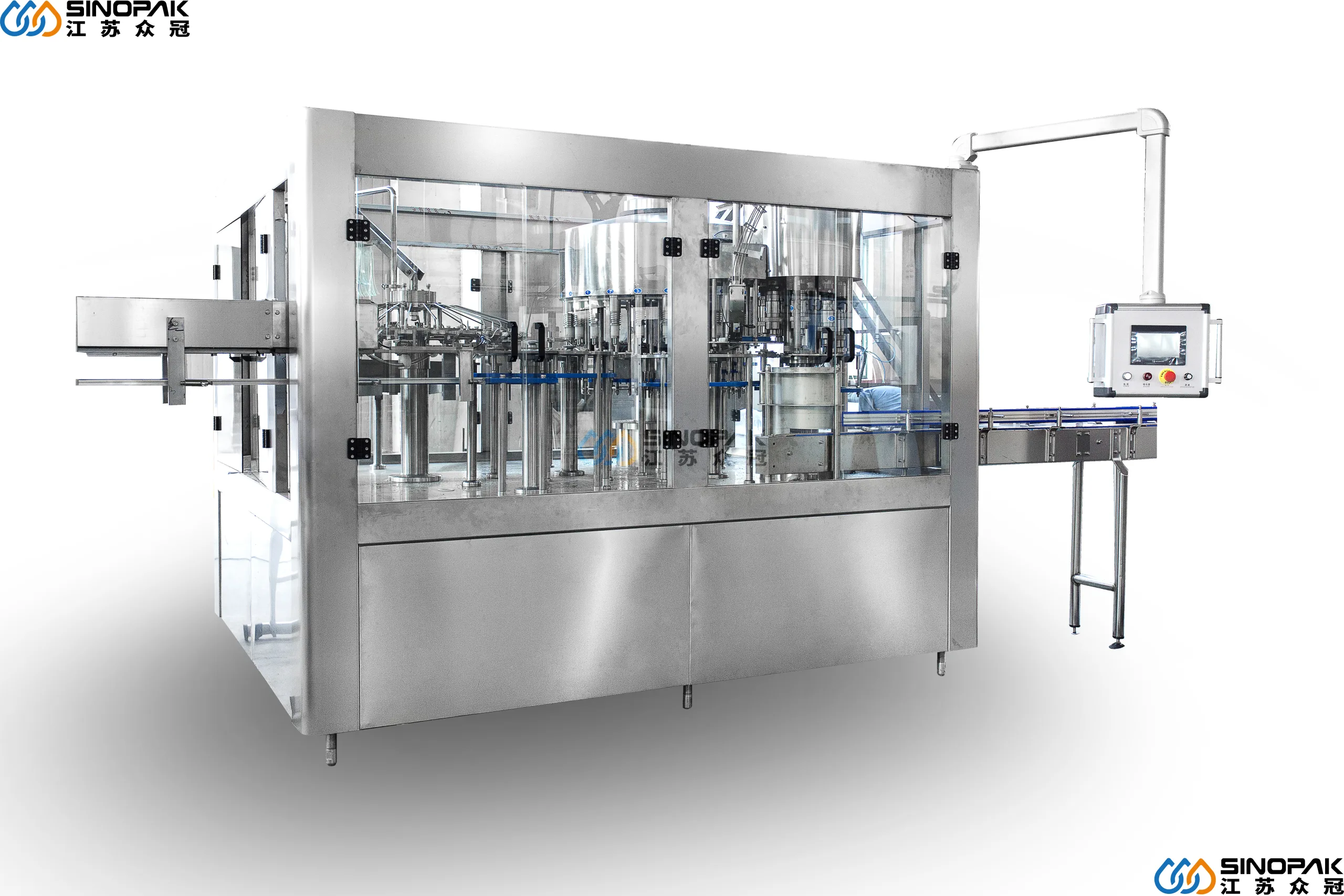

XGF60-60-15 30000BPH Triblock Plastic Bottle Washing /Filling Capping Machine

This Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

Video

Detailed Images

Machine Parameters

Main features :

  1. The machine has compact structure, perfect control system, convenient operation and high automation
  2. Parts in contact with materials are made of imported high quality stainless steel, no process dead Angle, easy to clean
  3. High precision, high speed quantitative filling valve, accurate liquid level without liquid loss, to ensure excellent filling quality
  4. The capping head adopts constant torque device to ensure the capping quality
  5. Adopt efficient capping management system, with perfect cap loading  technology and protection device
  6. It is not necessary to adjust the height of the equipment to change the bottle size. It can be realized by replacing the star wheel of the bottle, which is simple and convenient to operate
  7. The filling system adopts the bottle – bottling technology to avoid the secondary pollution of the bottle mouth
  8. The control system has the functions of automatic water level control, missing cap detection, automatic stop of bottle flushing and output counting
  9. The bottle washing system adopts the efficient cleaning spray nozzle produced by American spray Company technology, which can be cleaned to every place in the bottle
  10. The main electrical components, electronic control valves, frequency converters and so on are imported parts to ensure the excellent performance of the whole machine
  11. All components of pneumatic system adopt international famous products.This machine integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles
Project Name: Drinking Water Filling Machine
Model XGF 60-60-15
Washing Nos 60
Filling Nos 60
Capping Nos 15
Capacity(BPH) 30000
Suitable bottle and cap PET circular or square with screw cap
Bottle Volume 150ml to 2.5Ltr (Customized)
Bottle diameter(mm) Dia50-Dia115mm
Bottle heighter 160-320mm
Compress air pressure(Mpa) 0.3-0.4Mpa
Washing medium Aspetic water
Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
Filling temperature Room temperature
Filling theory By gravity
Total powder 15KW
Dimension  (meter) 6.00*4.68*2.75M



Production Lines Flow Chart

Water treatment system

Water treatment system

By utilizing our water purification machine, we can efficiently process fresh water, yielding high-quality pure, drinking, and mineral water. Our advanced manufacturing facility is equipped to produce various types of water, including drinking water, mineral water, pure water, and potable water. We source water from a diverse range of bodies, encompassing groundwater, mountain springs, rivers, wells, brackish water, and lakes. The core of our water treatment operations centers around raw water sources such as boreholes, rivers, wells, mountain springs, lakes, and more. These sources form the foundation of our water treatment processes.

View Details
Blow molding system

Blow molding system

Tailored to accommodate PET plastic bottles of all shapes, our system offers a comprehensive bottle molding solution to meet diverse capacity and shape requirements. Additionally, we provide a complimentary design service to ensure a customized approach. The system supports bottle sizes ranging from 100ml to 20L, catering to various packaging needs, and boasts a capacity ranging from 1000 to 20000 bottles per hour for efficient production.

View Details
Automatic labeling machine

Automatic labeling machine

The BOPP labeling machine is highly versatile, making it suitable for containers and labels of different materials.

  • With relatively lower label costs, it caters to users with diverse container types, offering an economical solution for mass production and integrated operations.
  • Container positioning is precise, achieved through the plate’s upward pressure and downward holding, ensuring accurate placement in various locations.
  • Utilizing roller gluing, the label is affixed at the head and tail, minimizing glue usage and creating uniform and aesthetically pleasing glue marks.
  • The machine facilitates easy and rapid configuration changes for different containers and labels.
  • Featuring a dual station setup—one for usage and one for storage—the label station enhances operational efficiency.
View Details
Shrink wrapping machine

Shrink wrapping machine

Tailored for the high-speed packing demands of beverages such as pure water, beverage, juice, and dairy products, this machine is specially designed and manufactured. It seamlessly groups products into packages during the forward conveying process, optimizing time efficiency and packing speed. The touch-screen operating panel, featuring a user-friendly interface and convenient parameter setup, ensures that this machine is easy to operate. Representing the ideal model for a high-speed heat-shrinking packager in the domestic market, it excels in both functionality and user-friendliness.

View Details
Water Beverage Soft Drinks Bottle Carton Box Packaging Machine

Water Beverage Soft Drinks Bottle Carton Box Packaging Machine

The automatic carton opening machine is equipped to open vertical cardboard and automatically correct the right-angle. Serving as a case packer, it seamlessly handles unpacking, carton flexing, and packing. The machine is driven by PLC and touch screen controls, ensuring convenient operation and management. This not only makes it user-friendly but also reduces labor input and lowers labor intensity. As an ideal choice for automated production lines, it significantly reduces packing costs. Moreover, the machine offers the option to utilize hot melt adhesive for added efficiency in the packaging process.

View Details
Palletizer machine

Palletizer machine

In accordance with a specified order, the palletizer systematically stacks the packed products (in boxes, bags, buckets) onto designated empty pallets through a series of mechanical actions. This process is designed to streamline the handling and transportation of product batches, ultimately improving overall production efficiency. Additionally, the palletizer can incorporate stack layer pads to enhance the stability of each layer in the stack. The machine is designed in various forms to meet diverse palletizing requirements based on specific needs and configurations.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
