XGF 80-80-22 42000BPH Drinking Mineral Pure Water Bottle Filling Machinery/Production Line Factory Price

Suitable for big capacity bottled water filling lines. Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck,avoiding the second contamination. High speed and mass flow filling valve ensures the high filling speed and exact fluid level.parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.the electric system is from international brand and achieves the national food hygienic standard.the bottle-out starwheel is helical structure.while changing over bottle size. It is no need to adjust bottle-out conveyor height.

Video

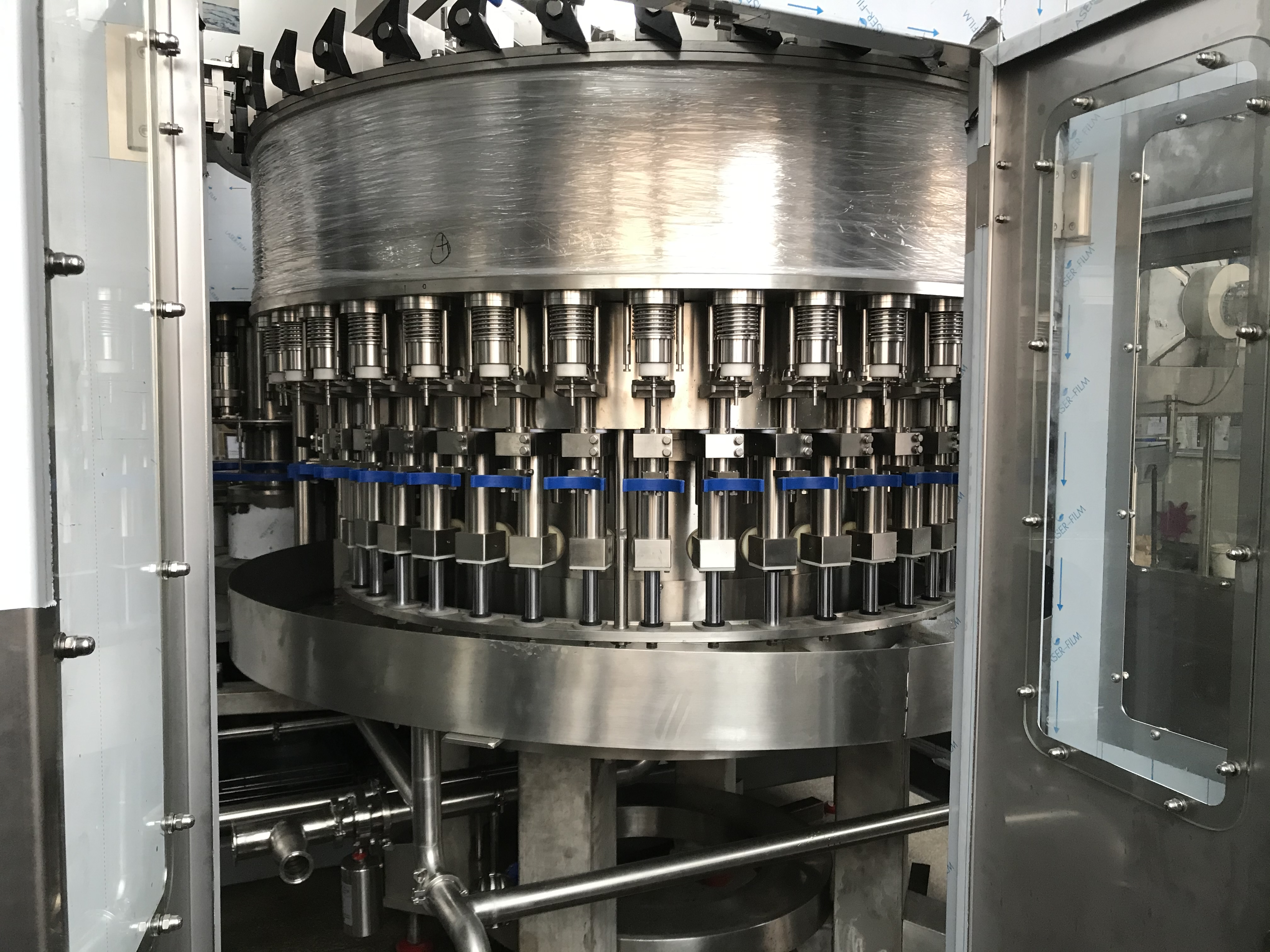

Detailed Images

Machine Parameters

Main features :

This machine offers a host of advantages, featuring a compact structure, a well-designed control system, user-friendly operation, and high levels of automation. The parts that come into contact with materials are crafted from high-quality stainless steel sourced from reputable international suppliers, ensuring no dead angles in the manufacturing process and making cleaning a breeze.For precise and efficient filling, the machine is equipped with a high-precision, high-speed quantitative filling valve, guaranteeing an accurate liquid level with no losses, resulting in exceptional filling quality. To maintain high capping quality, the capping head employs a constant torque device. An efficient capping management system, equipped with advanced cap loading technology and protective measures, enhances the overall operation.One notable feature is its adaptability, as it accommodates bottle size changes without requiring equipment height adjustments. This is achieved by simply replacing the bottle’s star wheel, offering a straightforward and convenient operation. Additionally, the machine utilizes bottle-bottling technology for filling, mitigating the risk of secondary bottle mouth contamination.The control system is equipped with automated functions, including water level control, missing cap detection, automatic bottle flushing stoppage, and output counting. The bottle washing system is highly effective, utilizing cleaning spray nozzles from an American spray company, ensuring thorough cleaning in every part of the bottle.To ensure the machine’s excellent overall performance, key electrical components, electronic control valves, frequency converters, and more are sourced from reputable international manufacturers. Furthermore, all components within the pneumatic system are built using renowned global products.In terms of functionality, this machine seamlessly integrates three vital processes: rinsing empty PET bottles, filling the cleaned bottles, and securely capping the filled bottles.

Project Name: Drinking Water Filling Machine
Model XGF 80-80-22
Washing Nos 80
Filling Nos 80
Capping Nos 22
Capacity(BPH) 42000
Suitable bottle and cap PET circular or square with screw cap
Bottle Volume 150ml to 2.5Ltr (Customized)
Bottle diameter(mm) Dia50-Dia115mm
Bottle heighter 160-320mm
Compress air pressure(Mpa) 0.3-0.4Mpa
Washing medium Aspetic water
Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
Filling temperature Room temperature
Filling theory By gravity
Total powder 19KW
Dimension  (meter) 7.8*6.38*2.75M

Production Lines Flow Chart

Water treatment system

Water treatment system

By utilizing our water purification machine, we can efficiently process fresh water, producing high-quality pure, drinking, and mineral water. Our advanced manufacturing facility is equipped to produce various types of water, including drinking water, mineral water, pure water, and potable water. We source water from a diverse range of bodies, encompassing groundwater, mountain springs, rivers, wells, brackish water, and lakes. The core of our water treatment operations centers around raw water sources such as boreholes, rivers, wells, mountain springs, lakes, and more. These sources form the foundation of our water treatment processes.

View Details
Blow molding system

Blow molding system

Our automatic blow molding machine empowers you to effortlessly manufacture PET plastic containers and bottles in diverse shapes. It finds extensive application in producing carbonated beverage bottles, mineral water containers, pesticide bottles, edible oil containers, cosmetic bottles, wide-mouth containers, and hot-fill bottles. The versatility of the machine makes it a valuable asset in catering to various packaging needs across different industries.

View Details
Automatic labeling machine

Automatic labeling machine

The OPP hot melt glue labeling machine represents the latest continuous operation in labeling technology. Primarily designed for labeling cylindrical containers such as detergents, beverages, mineral water, and food products, this machine utilizes environmentally friendly OPP films as label material. Notably, it incorporates automatic oxidative decomposition, resulting in a reduction of production costs by more than 30 percent. Controlled by a PLC touch screen and equipped with imported advanced electric eye configurations, this labeling machine offers high speed, accuracy, stable performance, ease of operation, and an elegant appearance.

View Details
Shrink wrapping machine

Shrink wrapping machine

Tailored for mass production packaging lines, this system is designed to accommodate products of varying widths and heights. Additionally, it features a contact function specifically for efficient packaging of smaller-sized products. The versatility of the system makes it well-suited for diverse product dimensions, ensuring an efficient and adaptable solution for high-volume packaging operations.

View Details
Water Beverage Soft Drinks Bottle Carton Box Packaging Machine

Water Beverage Soft Drinks Bottle Carton Box Packaging Machine

The automatic carton opening machine is equipped to open vertical cardboard and automatically correct the right angle. Functioning as a case packer, it handles unpacking, carton flexing, and packing operations. Controlled by a PLC and touch screen, the machine ensures convenient operation and management. This not only makes it user-friendly but also reduces labor input and lowers labor intensity. An ideal choice for automation in production lines, it significantly decreases packing costs. Moreover, hot melt adhesive can be utilized in this machine, adding to its efficiency in the packaging process.

View Details
Fully Automatic Pallet Stretch Wrapping Machine

Fully Automatic Pallet Stretch Wrapping Machine

In summary, the pre-stretching wrapping machine pre-stretches the film in advance within the mold base device during the wrapping process. This optimizes the stretching proportion, allowing users to use the wrapping film more efficiently, saving materials, and reducing packaging costs. The pre-stretching wrapping machine is designed to achieve significant savings in wrapping film usage.

View Details
Palletizer machine

Palletizer machine

In accordance with a specified order, the palletizer systematically stacks the packed products (in boxes, bags, buckets) onto designated empty pallets through a series of mechanical actions. This process is designed to streamline the handling and transportation of product batches, ultimately improving overall production efficiency. Additionally, the palletizer can incorporate stack layer pads to enhance the stability of each layer in the stack. Its versatile design encompasses various forms to meet diverse palletizing requirements based on specific needs and configurations.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
