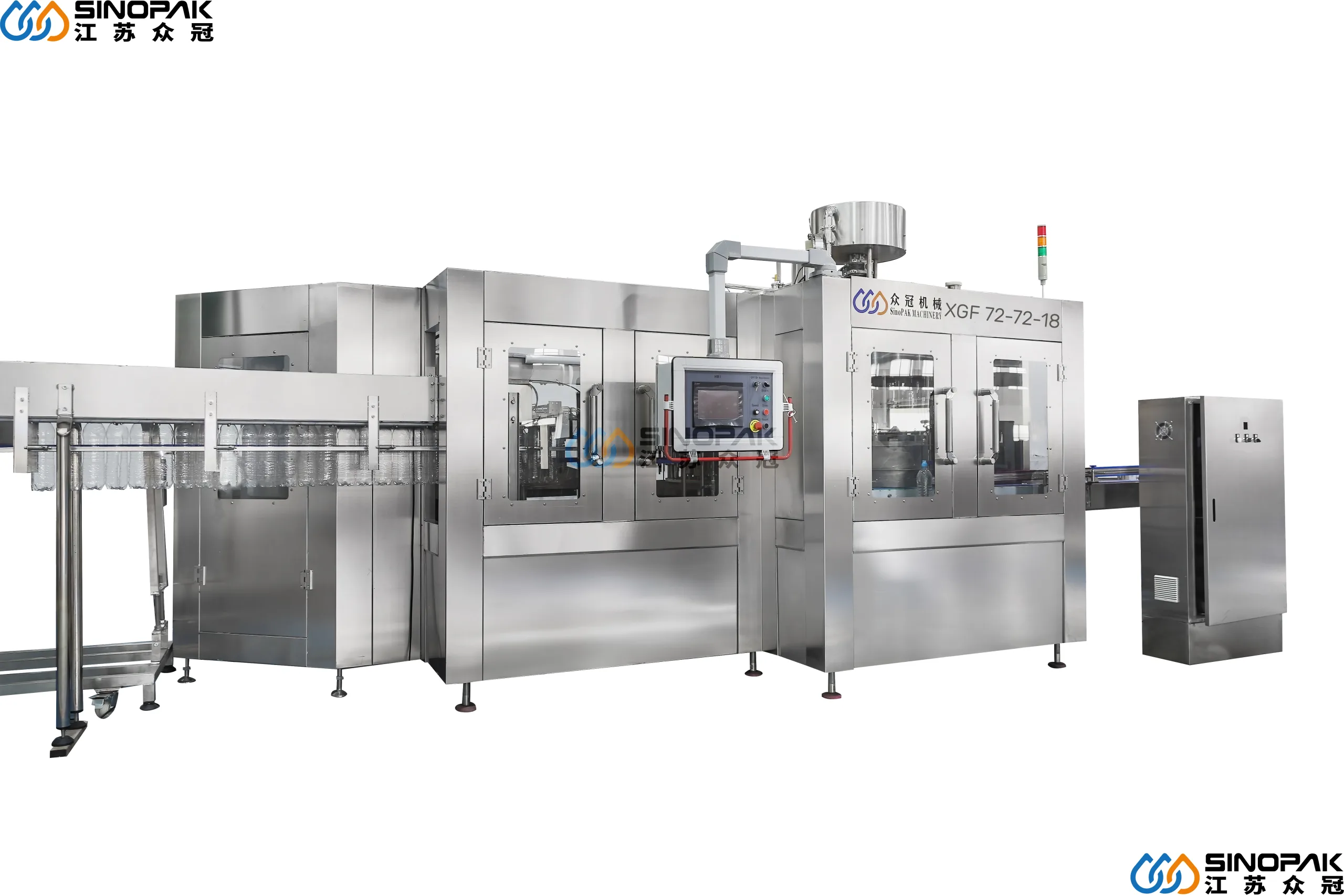

XGF 72-72-18 36000BPH Pure Water Bottling Project From A to Z Mineral Water Production Line Price

3-in-1 filling machine, combined with rinsing, filling and capping. It is used for mineral water, pure water, and other drinking water filling in PET bottles ranges from 200ml-2L, and capacity from 2000-36000BPH.

Video

Detailed Images

Machine Parameters

Main features :

  1. The machine has compact structure, perfect control system, convenient operation and high automation.
  2. Parts in contact with materials are made of imported high quality stainless steel, no process dead Angle, easy to clean.
  3. High precision, high speed quantitative filling valve, accurate liquid level without liquid loss, to ensure excellent filling quality.
  4. The capping head adopts constant torque device to ensure the capping quality.
  5. Adopt efficient capping management system, with perfect cap loading  technology and protection device.
  6. It is not necessary to adjust the height of the equipment to change the bottle size. It can be realized by replacing the star wheel of the bottle, which is simple and convenient to operate.
  7. The filling system adopts the bottle – bottling technology to avoid the secondary pollution of the bottle mouth.
  8. The control system has the functions of automatic water level control, missing cap detection, automatic stop of bottle flushing and output counting.
  9. The bottle washing system adopts the efficient cleaning spray nozzle produced by American spray Company technology, which can be cleaned to every place in the bottle.
  10. The main electrical components, electronic control valves, frequency converters and so on are imported parts to ensure the excellent performance of the whole machine.
  • All components of pneumatic system adopt international famous products.
    This machine integrated three function:
  • 1. Rinse the empty pet bottle,
  • 2. filling the rinsed bottles,
  • 3. capping the filled bottles
Project Name: Drinking Water Filling Machine
Model XGF 72-72-18
Washing Nos 72
Filling Nos 72
Capping Nos 18
Capacity(BPH) 36000
Suitable bottle and cap PET circular or square with screw cap
Bottle Volume 150ml to 2.5Ltr (Customized)
Bottle diameter(mm) Dia50-Dia115mm
Bottle heighter 160-320mm
Compress air pressure(Mpa) 0.3-0.4Mpa
Washing medium Aspetic water
Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
Filling temperature Room temperature
Filling theory By gravity
Total powder 15KW
Dimension  (meter) 6.5*4.68*2.75M

Production Lines Flow Chart

Water treatment system

Water treatment system

By utilizing our water purification machine, we can efficiently process fresh water, producing high-quality pure, drinking, and mineral water. Our advanced manufacturing facility is equipped to produce various types of water, including drinking water, mineral water, pure water, and potable water. We source water from a diverse range of bodies, encompassing groundwater, mountain springs, rivers, wells, brackish water, and lakes. The core of our water treatment operations centers around raw water sources such as boreholes, rivers, wells, mountain springs, lakes, and more. These sources form the foundation of our water treatment processes.

View Details
Blow molding system

Blow molding system

Our automatic blow molding machine empowers you to effortlessly manufacture PET plastic containers and bottles in diverse shapes. It finds extensive application in producing carbonated beverage bottles, mineral water containers, pesticide bottles, edible oil containers, cosmetic bottles, wide-mouth containers, and hot-fill bottles. The versatility of the machine makes it a valuable asset in catering to various packaging needs across different industries.

View Details
Automatic labeling machine

Automatic labeling machine

The OPP hot melt glue labeling machine stands out as the latest advancement in continuous labeling operations. Primarily designed for labeling cylindrical containers such as detergents, beverages, mineral water, and food products, this machine utilizes environmentally friendly OPP films as label material. Its innovative features include automatic oxidative decomposition, resulting in a reduction of production costs by more than 30 percent. Controlled by a PLC touch screen and incorporating imported advanced electric eye configurations, this labeling machine boasts high speed, accuracy, stable performance, ease of operation, and an elegant appearance.

View Details
Shrink wrapping machine

Shrink wrapping machine

Tailored for mass production packaging lines, this system is designed to accommodate products of varying widths and heights. Additionally, it features a contact function specifically for efficient packaging of smaller-sized products. The versatility of the system makes it well-suited for diverse product dimensions, ensuring an efficient and adaptable solution for high-volume packaging operations.

View Details
Water Beverage Soft Drinks Bottle Carton Box Packaging Machine

Water Beverage Soft Drinks Bottle Carton Box Packaging Machine

The automatic carton opening machine is equipped to open vertical cardboard and automatically correct the right angle. Functioning as a case packer, it handles unpacking, carton flexing, and packing operations. Controlled by a PLC and touch screen, the machine ensures convenient operation and management. This not only makes it user-friendly but also reduces labor input and lowers labor intensity. An ideal choice for automation in production lines, it significantly decreases packing costs. Moreover, hot melt adhesive can be utilized in this machine, adding to its efficiency in the packaging process.

View Details
Fully Automatic Pallet Stretch Wrapping Machine

Fully Automatic Pallet Stretch Wrapping Machine

In brief, the pre-stretching wrapping machine pre-stretches the film within the mold base device during the wrapping process, maximizing the stretching proportion. This efficient method optimizes film usage, resulting in material savings and reduced packaging costs for users. The pre-stretching wrapping machine is designed to economize wrapping film usage effectively.

View Details
Palletizer machine

Palletizer machine

In adherence to a specific order, the palletizer systematically stacks the packed products (in boxes, bags, buckets) onto designated empty pallets through a series of mechanical actions. This process is designed to streamline the handling and transportation of product batches, ultimately enhancing overall production efficiency. Additionally, the palletizer can incorporate stack layer pads to bolster the stability of each layer in the stack. Its versatile design encompasses various forms to meet diverse palletizing requirements based on specific needs and configurations.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
