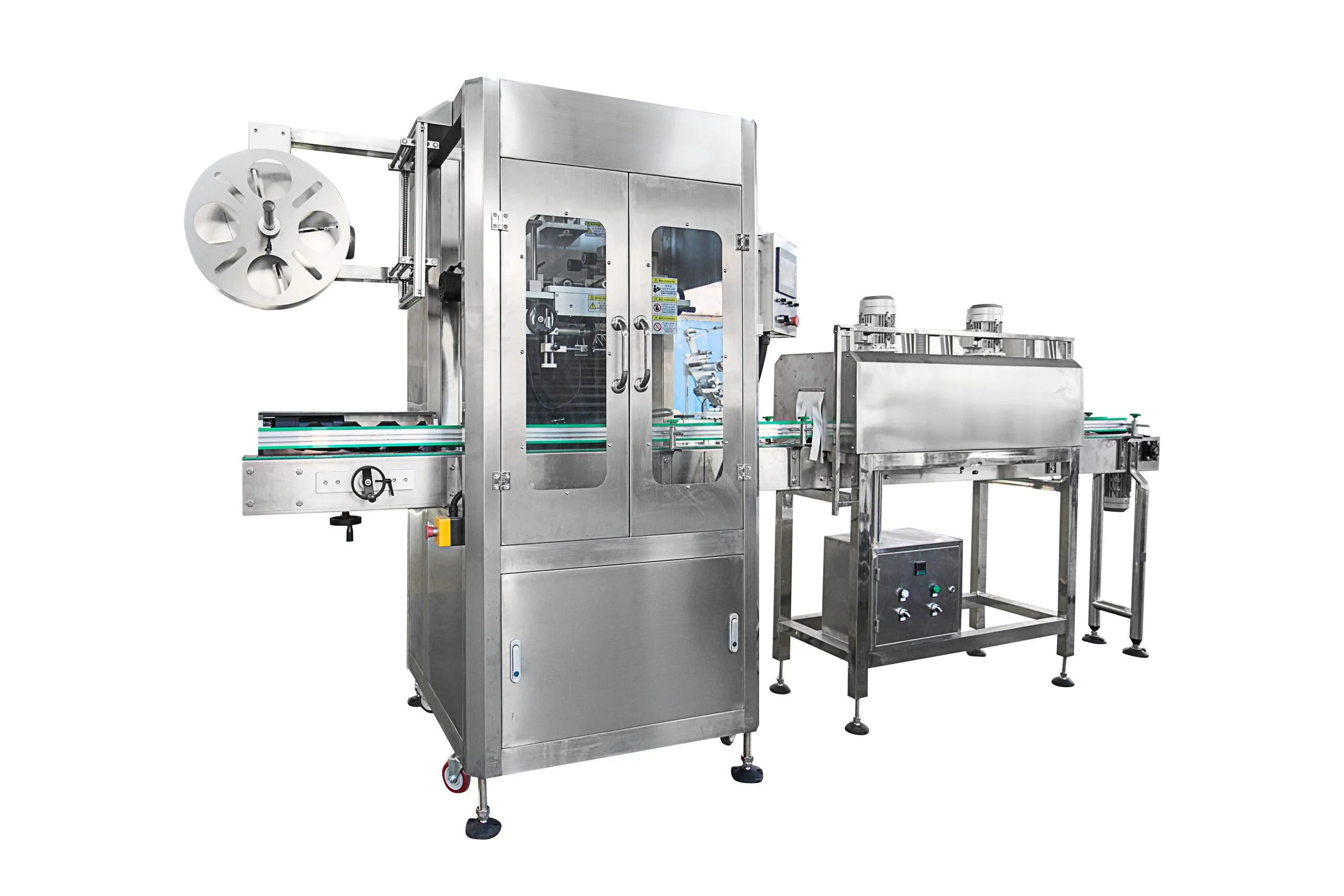

Automatic Shrink Sleeve Labeling Machine

As a professional China drinking water bottles labeling machine automatic shrink sleeve labeling machine expert, we provide labeling machine for glass bottles automatic labeling machine

Product Description

Such as the filling and bottling production line of Mineral Water, Purified Water, Drinking Water, Beverage, Beer, Juice, Dairy,Condiment,etc.

The PVC shrink sleeve labeling machine is suitable for round bottles, flat, square bottles, curved bottles, cups and other products in food and beverage, medical, daily chemical and other light industries.

Characteristics

 ☆ the whole machine adopts stainless steel and high-quality aluminum, well-structured, compact and easy to adjust.

 ☆ without anchor bolts can be easily mobile, flexible space with the production.

 ☆ shrink film label rack, with adjustable brake, and paper tube according to label 5 “~ 10” to facilitate adjustment.

 ☆ unique set of standard methods, the use of compression-type sets of tender, in a convenient and reasonable.

 ☆ Automatic feed motors, at the same time leveling materials shrink film tension adjustment.

 ☆ Volume label detection system ensure that the minimum error.

 ☆ Unique design of the knife is special in the framework, can change blocks ATC freely, ATC quickly and easily.

 ☆ Center column clamping system, change quickly and without any tools.

 ☆ Label positioning device, according to the demand for container shape, position adjustment can be synchronized movements.

 ☆ Hours bottle-screw, positioning belt, chain adjustment using synchronous manner, and speed adjustment is simple, quick.

 ☆ Adopt Japanese servo motor and high-sensitivity photoelectric, standard length is precision

 ☆ Stainless steel electrical control box, control the use of Japan’s Mitsubishi PLC.

 ☆ adopt advanced automatic control technology of the man-machine interface, the key electrical components are adopted internationally renowned products

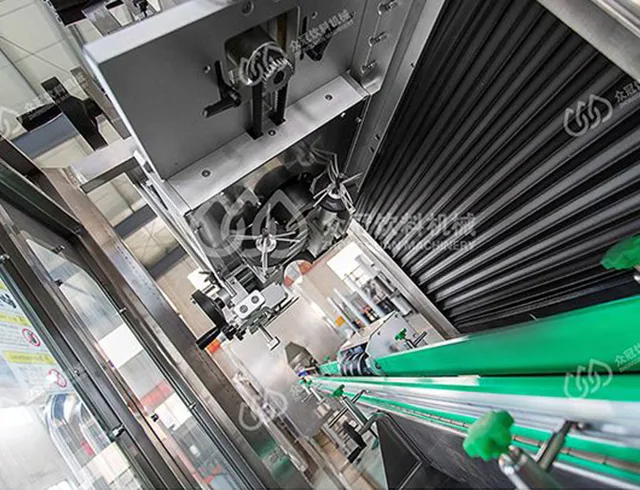

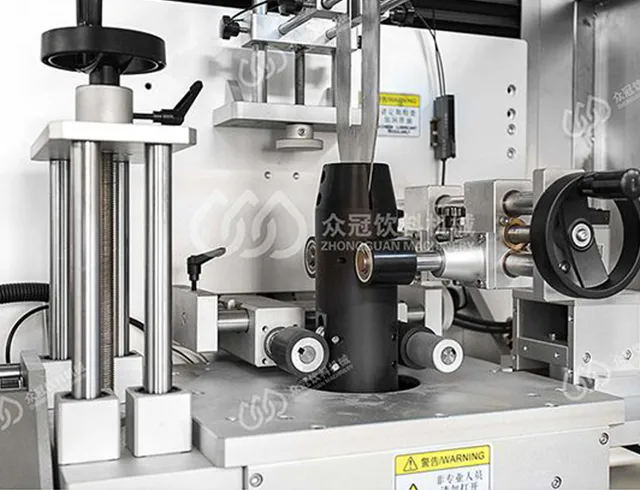

Detailed Images

Machine Parameters

Main technical parameters of the equipment

Model

SL-100

SL-200

SL-300

SL-400

SL-500

Voltage

AC220V, 50/60HZ,       1.5-2KW             (Host machine)    AC380V,50/60HZ, 18KW    (Shrinking machine)

AC220V, 50/60HZ,         1.5 KW               (Host machine)         AC380V,50/60HZ, 18KW    (Shrinking machine)

AC220V, 50/60HZ, 2.5 KW        (Host machine)         AC380V,50/60HZ, 24KW    (Shrinking machine)

AC220V, 50/60HZ, 3 KW        (Host machine)         AC380V,50/60HZ, 36KW    (Shrinking machine)

AC220V, 50/60HZ, 3 KW        (Host machine)         AC380V,50/60HZ, 36KW    (Shrinking machine)

Production speed

6000 BPH

9000-12000 BPH

15000-18000 BPH

22000-24000 BPH

28000-30000 BPH

Diameter of bottle body

∮28mm-∮125mm

∮28mm-∮125mm

∮28mm-∮125mm

∮28mm-∮125mm

∮28mm-∮125mm

Length of label

30mm-250mm

30mm-250mm

30mm-250mm

30mm-250mm

30mm-250mm

Thickness of label

0.035mm-0.13mm

0.03mm-0.13mm

0.03mm-0.13mm

0.03mm-0.13mm

0.03mm-0.13mm

Material of label

PVC、 PET、 OPS

PVC、 PET、 OPS

PVC、 PET、 OPS

PVC、 PET、 OPS

PVC、 PET、 OPS

Size                          (label sleeving host machine)

L2000mm*W850mm* H2000mm

L780mm*W1200mm* H2000mm

L2100mm*W1100mm*H2000mm

L2100mm*W850mm* H2000mm

L2500mm*W1200mm*H2000mm

Size                            (Bulk of steam shrinking label)

L1800mm*W500mm* H1500mm

L1800mm*W500mm* H1500mm

L1800mm*W500mm* H1500mm

L1800mm*W500mm* H1500mm

L1800mm*W500mm* H1500mm

Steam shrinking tunnel          (quantity of steam)

20Kg/H

30Kg/H

30Kg/H

50Kg/H

50Kg/H



Packaging & Shipping

Packaging

As usual, we adopt wooden case as package type. It’s suitable for long-distance transport.According to customers’ special demand, we could adopt sheet iron case and so on.

Shipping

Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Warranty

1.We guarantee all our machine, parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the machine in the     factory.
3.After warranty ,we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we     get it and offer you a good solution to solve the problem.

List of Standard electricl appliance Configuration

Module name

Electric appliance name

Type

Quantity

Merchant

Place of production

Machine frame fluctuation unit

Low power a-c dynamo

5IK90GU-CF-5GU30KB

1

TWT

Taiwan

Clean-down unit

Low power a-c dynamo

5IK120A-CFT

1

TWT

Taiwan

Feeding unit

Low power a-c dynamo

RV50-15K-180

1

TWT

Taiwan



Frequency converter

VFO-0.25KW

1

Panasonic

Japan



Photoelectricity inductor

CX-421

1

Panasonic

Japan

Bottle Carrying unit

Low power a-c dynamo

5IK90GN-YFT-5GN20K

1

TWT

Taiwan



Frequency converter

VFO-0.25KW

1

Panasonic

Japan

Bottle Separation unit

Low power a-c dynamo

5IK90GN-YF-5GN10K

1

TWT

Taiwan



Frequency converter

VFO-0.25KW

1

Panasonic

Japan

Hairbrush unit

Low power a-c dynamo

4IK25GN-CFT-4GN3K

2

TWT

Taiwan

Cutter head unit

Cutter head servo motor

MHMD042P1U(400w)

1

Panasonic

Japan



Cutter head servo driver

MBDDT2210003(400w)

1

Panasonic

Japan



Minitype  photoelectricity inductor

PM-L44

2

Panasonic

Japan

Driving unit

Driving servo motor

MHMD042P1U(400w)

1

Panasonic

Japan



Driving servo driver

MBDDT2210003(400w)

1

Panasonic

Japan

Electric eye unit

High speed fibre-optical inductor

FX-301

1

Panasonic

Japan

Bottle monitor unit

Photoelectricity inductor

CX-442

1

Panasonic

Japan

Conveyor unit

Frequency converter

VFO-0.75KW

1

Panasonic

Japan

FAQ

Q:Are you a manufacturer or trade company?

A:We are a manufacturer in beverage machine field more than 15 years, located at Jinfeng town,zhangjiagang,2 hours from Shanghai,1 hour from Wuxi by car. We will pick you up to visit our factory.

Q:What about the delivery time?

A:Usually 40 Working days

Q:The after-sale service

A:24 months warranty.

solve basic questions by telephone, email, whatsapp, wechat and video call.

Engineer will go to buyer’s factory to install, test machines, and train buyer’s staff how to operate, maintain machines.

Operating manuals will be sent with machine or by email.

We also have overseas service center

Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes.

Q:Do you have any certification?

A:SGS,ISO,CE

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
