Semi-automatic Shrink Sleeve Labeling Machine

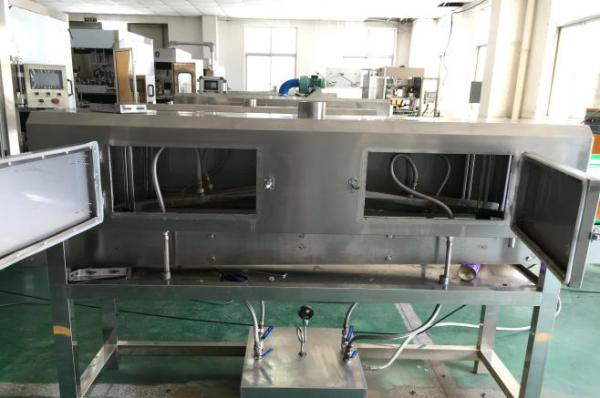

PM-1800 Steam Heating Shrink Tunnel can be applied to different and irregular bottle types, e.g. round,square and flat bottles. It adopts seamless tube, the distribution of low-pressure steam drum and the spout of steam use the separation style which make the tunnel smooth.

Applicable bottle types: glass bottles, cans, PET bottles, square-necked bottles, round-necked bottles, and so on.

Semi-automatic compared to fully automatic, that is, there is only one shrinking oven, the speed depends on the speed of manual labelling.

Video

Detailed Images

Machine Parameters

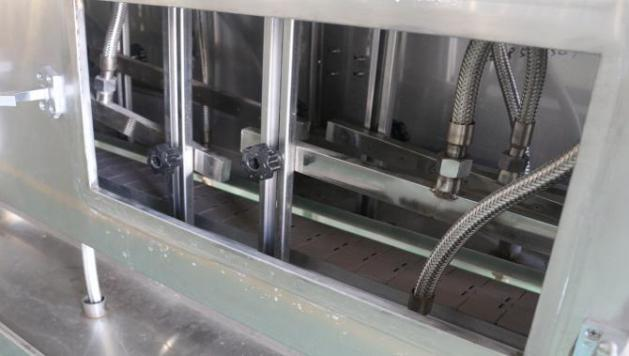

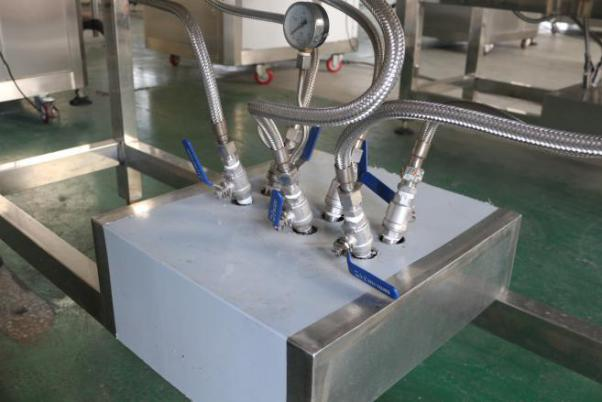

The steam nozzle is divided to three adjustable segments; the height, position and steam output of each segment can be adjusted respectively; this guarantees a perfect shrinking effect.

The whole machine is made of stainless steel with heat preservation, it not only saves energy, but also match with the international safety standard. The reductor and transportation machine is made by Spirax Sarco which has a good working environment. The whole machine adopts the water-proof design with the convenience of operation and maintenance.

Item Technical data

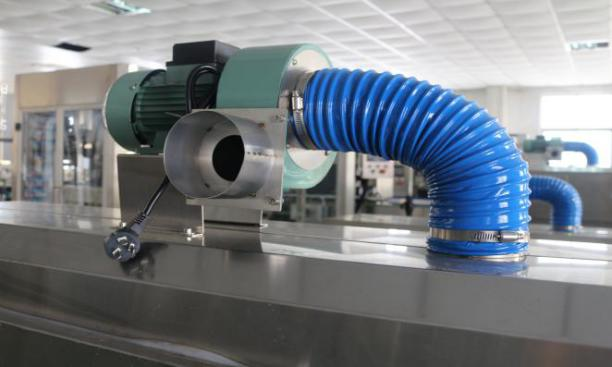

Input Voltage Supply of Blower ∮1, 220 VAC
Input Voltage Supply of Steam Generator 380V/ 50 Hz
Working Pressure <= 0.1 Mpa
Dimension of Shrink Tunnel L1800mm× W400mm × H450mm
Weight 150Kg

Production Lines Flow Chart


Warning: Invalid argument supplied for foreach() in /home/customer/www/sinopakmachinery.com/public_html/wp-content/themes/iwonder/functions.php on line 253

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
