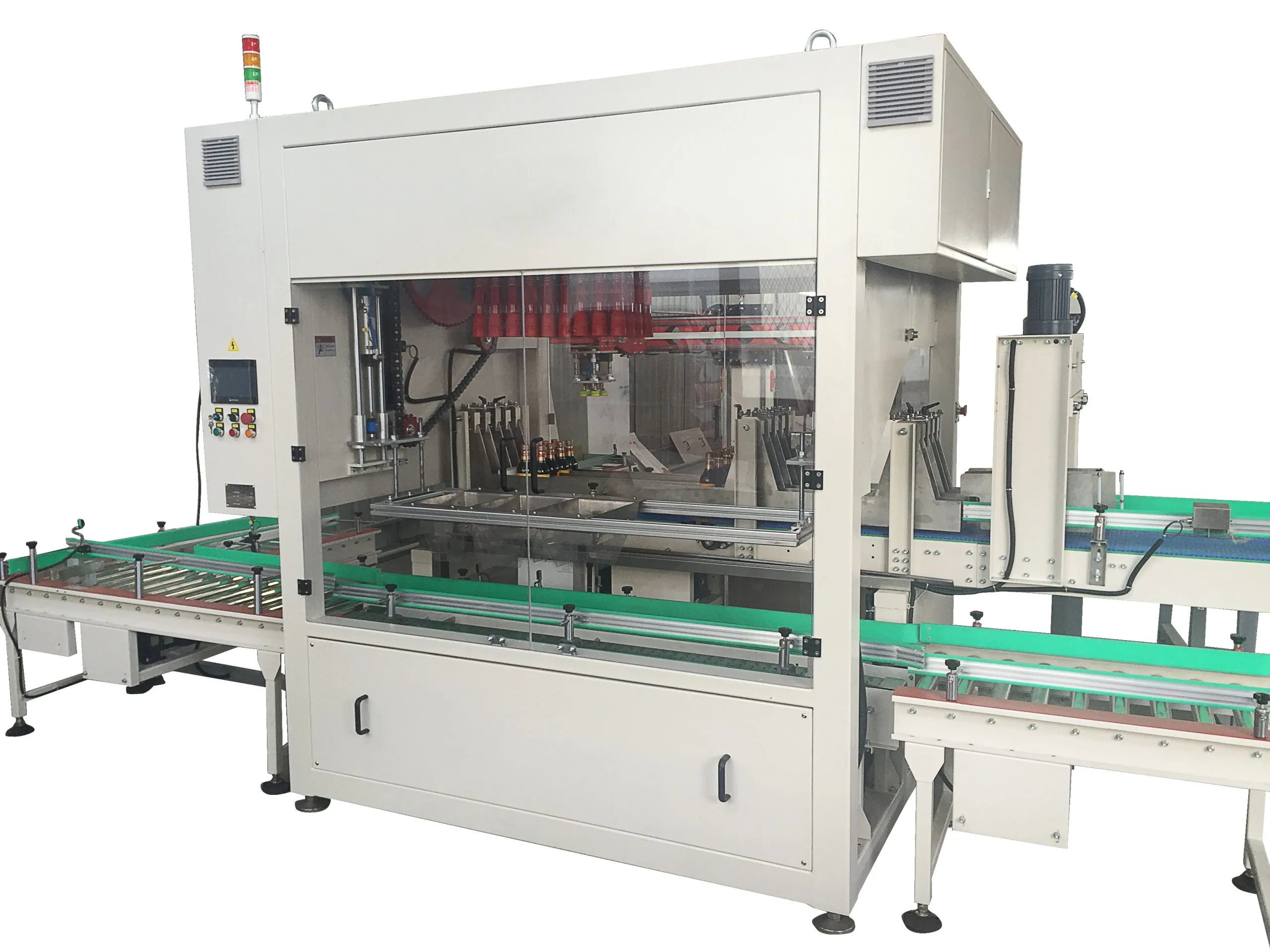

Erector and packing and taping machine 3-in-1 carton box packaging machine 15,000 boxes per hour

It can automatically carry out carton, open carton, bottom folding leaf folding, carton bottom tape sealed, and output.

After automatic palletizing of carton, push empty box to box.

Can automatically fold the upper part of the carton, tape paste seal box.


Detailed Images

Machine Parameters

Main features :

1. The Whole packing line automatically complete the open-packing-sealingprocess which effectively reduce labor coste
2.Side push packing, neat palletizing block object stable and reliable.Easyand accurate adjustment can be made.
3.Easy to adjust palletizing specifications and carton specificationse
4.Independent debugging and production control of single machine, controlscreen interface show: output count speed of machine running Degreeadjustment / equipment failure and other digital,Optional language5.Has carton quality and carton reserves detection and monitoring, faultalarm, fault shutdown and emergency shutdown and other safety protectionfunctionsu
6.Packing smooth, do not damage the appearance of cartons, finished cartonappearance intact, neat,appearance qualified.

Carton dimensionL200-600*W150-500*H120-500mm
Working plat height680-800mm
Machine Dimension L×W×H(mm)L1700×W800×H1180mm
Total Power:0.5Kw
Power Supply220V/50HZ

Production Lines Flow Chart

Water treatment system

Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc

Blow molding system

Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Automatic labeling machine

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

Shrink wrapping machine

This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
