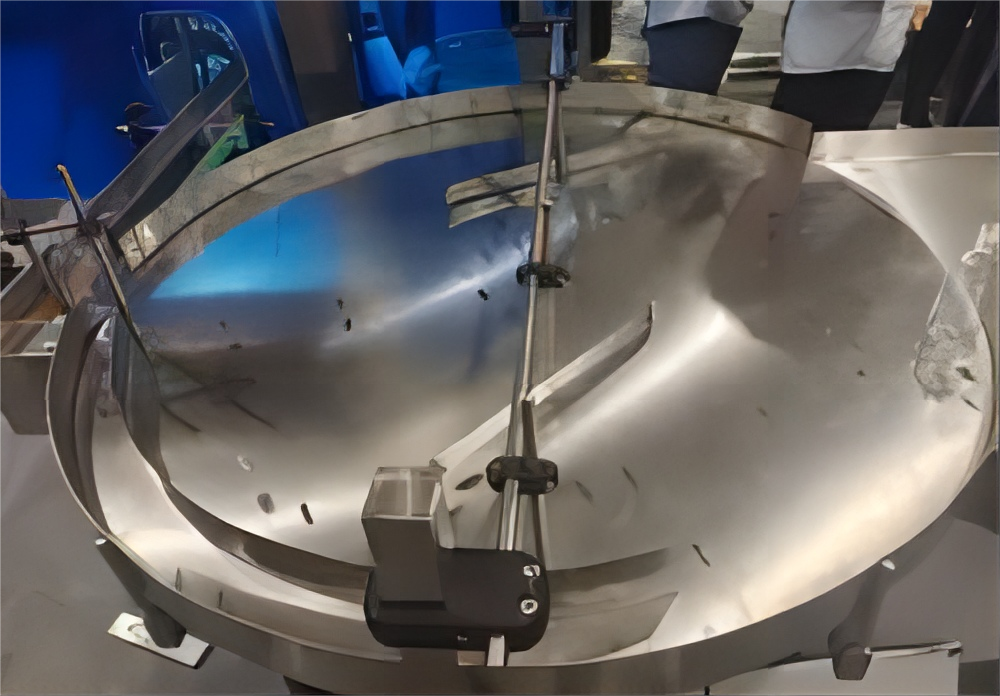

Automatic Plastic Edible Cooking Oil Bottle Handle Insert Machine

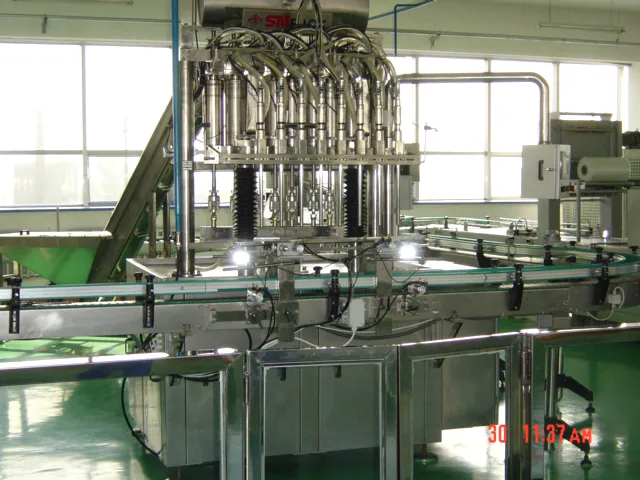

Automatic linear piston filling machines is an extremely flexible piston fillers capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to high viscosity paste or cream with or without chunks or particulates. Widely used in food industry(e.g.,paste filling machine, butter filling machine, jam filling machine, ketchup filling machine, honey filling machine, edible oil filling machine, sauce filling machine etc); household product industry(e.g.,shampoo filling machine, liquid soap filling machine, liquid detergent filling machine, hand wash filling machine etc), personal care industry(e.g.,cream filling machine, lotion filling machine, gel filling machine, perfume filling machine etc); Chemical industry(e.g., grease filling machine, lubricant filling machine etc); pharmaceutical industry(e.,g ointment filling machine, e liquid filling machine etc).
Detailed Images
Machine Parameters
Main features :
1 Equipped with a bottle mouth localizer to make the machine suitable for different shapes of bottles including irregular bottles
2 “No drip” filling nozzle can assure that dripping and stringing will not happen.
3 This machine has functions of “no bottle no fill”, “malfunction check and malfunction scan automatically”, “security alarm system for abnormal liquid level”.
4 The parts are connected with clamps, which makes the machine easy and quick to disassemble & assemble and clean.
5 The series of machine has compact, reasonable configuration and nice, simple appearance.
6 Filling mouth with anti-drip function, can be changed to lift for high foam products.
7 Material feeding device control box on the feeding, so that material is always kept at a certain range to ensure the accuracy of filling volume.
8 Rapid adjustment to achieve the overall filling volume, with counter display; the amount of each filling head can be individually fine-tuned, convenient.
9 With PLC programming control, touch-type man-machine interface, convenient parameter setting. Fault self-diagnosis function, clear failure display.
10 Filling head is an option, easy maintenance without affecting the other single head when filling.
Model | Filling Volume | The Number of Filling Nozzles | Air Consumption （Unit：L/min） | Dimensions （Unit：mm，without conveyor） |
TCL6-500 | 50-500ml | 6 | 500 | L1200*W1095*H2100 |
TCL 8-500 | 8 | 600 | L1500*W1095*H2100 | |
TCL 10-500 | 10 | 700 | L1800*W1095*H2100 | |
TCL 6-1000 | 100-1000ml | 6 | 700 | L1200*W1095*H2211 |
TCL 8-1000 | 8 | 800 | L1500*W1095*H2211 | |
TCL10-1000 | 10 | 1000 | L1800*W1095*H2211 |
Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.
Applications
1 Equipped with a bottle mouth localizer to make the machine suitable for different shapes of bottles including irregular bottles
2 “No drip” filling nozzle can assure that dripping and stringing will not happen.
3 This machine has functions of “no bottle no fill”, “malfunction check and malfunction scan automatically”, “security alarm system for abnormal liquid level”.
4 The parts are connected with clamps, which makes the machine easy and quick to disassemble & assemble and clean.
5 The series of machine has compact, reasonable configuration and nice, simple appearance.
6 Filling mouth with anti-drip function, can be changed to lift for high foam products.
7 Material feeding device control box on the feeding, so that material is always kept at a certain range to ensure the accuracy of filling volume.
8 Rapid adjustment to achieve the overall filling volume, with counter display; the amount of each filling head can be individually fine-tuned, convenient.
9 With PLC programming control, touch-type man-machine interface, convenient parameter setting. Fault self-diagnosis function, clear failure display.
10 Filling head is an option, easy maintenance without affecting the other single head when filling.
