Automatic Bottle pe Film Shrink Wrapping Packing Machine Factory price 45 packages per minute
As the latest upgraded packaging equipment, our equipment is a brand new packaging equipment designed and manufactured based on the characteristics of heating shrinkage of packaging film. It can arrange single product (such as PET bottle) automatically, assemble into groups, push bottle servo, wrap film servo, and finally form a set package after heating, shrinking, cooling and finalizing. After packaging, the products are bound firmly, the appearance is regular and beautiful, and the packaging cost is saved
Product Description
Main Features
*The sealing adopts the advanced structure of hot sealing and hot cutting, with firm sealing, neat edge, good sewing performance and no flash.
*Linear bottle feeding, small space occupation, convenient layout, stable transportation and high efficiency.
*Comprehensive protection function: when there is an obstacle at the sealing and cutting place, the equipment will be protected and an alarm will be given at the same time to prevent the package from being damaged.
*Adopt plastic steel chain conveyor belt, long-term use, no deformation, small jump, stable transportation.
*Unique patent subcontracting mechanism, accurate and stable subcontracting, convenient adjustment.
*Precise PID temperature controller, precise temperature control.
*The shrinking machine adopts a unique patented hot air diversion and circulation system, with adjustable air flow and natural heat recovery. The patented furnace structure not only achieves good packaging effect, but also plays the best role in energy saving. *The shrinkage furnace adopts special heat preservation structure, which can not only reduce energy consumption, but also ensure the safety of workers’ operation.

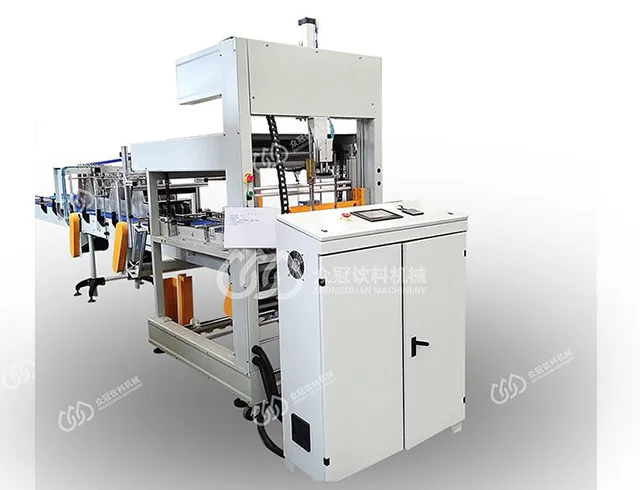

Detailed Images
Machine Parameters
Project Name: Shrink Wrap Packing Machine | |||||
Degree Of Automation | Semi Automatic | Full Automatic | |||
Model | ZG-A400-I | ZG-A400-II | ZG-A500-II | ZG-A500-III | ZG-A500-30B |
Power Supply | 3PH 380V/50HZ | ||||
Gas Source | ≥0.5MPa | 0.6~0.8MPa | |||
Overall Dimension Of Equipment (mm) | L5850 *W1200 *H1900 | L5850 *W4000 *H1900 | L9000 *W1100 *H1900 | L13200 *W1100 *H2000 | L13240 *W1260 *H2030 |
Maximum Package Size(mm) | L450 *W400 *H390 | L450 *W300 *H390 | L450 *W450 *H350 | L500 *W450 *H350 | L500 *W450 *H350 |
Packing Efficiency (bag/minute) | 6-12 | 10-15 | 15-20 | 20-25 | 25-36 |
Maximum Sealing Length(mm) | 620 | 650 | 700 | 700 | 700 |
Power(Kw) | 23.8-29.8 | 24.2-30.2 | 35 | 26-32 | 35 |
Working Surface Height(mm) | 850±30 | 900±30 | 900±30 | 900±30 | 900±30 |
Applicable Film | PE | ||||
Our Services
1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
6. We will supply the spare parts fast and with cost price.
