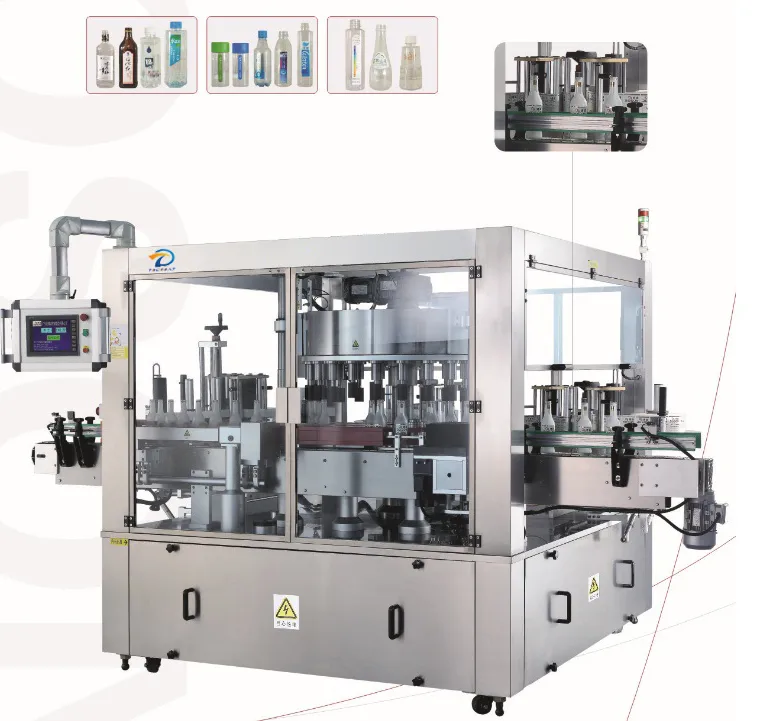

Automatic Rotary type Self-Adhesive Labeling Machine
The machine can simultaneously achieve two-sided circumferential surface labeling and labeling features to satisfy the flat bottles, square bottles and bottle shaped single-sided and double side labeling, the entire circumference of the cylindrical body, a half weeks labeling, widely used cosmetics industry, daily chemical
Detailed Images
Machine Parameters
Main features :
Control system： SIEMENS PLC control system, with high stable operation and extremely low failure rate;
Operation system： SIEMENS touch screen, with Chinese and English language, rich with help function and fault display function,easy operation;
Check system： German LEUZE check label sensor, automatic check label position, stable and convenient don’t have much higher requirement for the workerskill;
Send label system：American AB servomotor control system, stable with high speed；
Alarm function : such as label spill, label broken or other malfunction during machine working all will alarm and stop working.
Machine Material：The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;
Machine Material：The machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust;
Low voltage circuit all use the FranceSchneider brand.
Name | Economy Round Bottle Labeling Machine |
Labeling Speed | 20-200pcs/min(Depending on label length and bottle thickness) |
Height of Object | 30-280mm |
Thickness of Object | 30-120mm |
Height of Label | 15-140mm |
Length of Label | 25-300mm |
Label Roller Inside Diameter | 76mm |
Label Roller Outside Diameter | 380mm |
Accuracy of Labeling | ±1mm |
Power Supply | 220V 50/60HZ 1.5KW |
Gas Consumption of Printer | 5Kg/cm^2 |
Size of Labeling Machine | 2200(L)×1100(W)×1300(H)mm |
Weight of Labeling Machine | 150Kg |
Production Lines Flow Chart
Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.
Applications
Full automatic blow molding machine is suitable for producing PETplastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Features of main body:
- Stable performance with advanced PLC.
- Automatic preform conveyer to save human cost.
- Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
- High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
- High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
- Introduce the FESTO air cylinder to avoid contamination and noise.
- Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
- Strong clamping force with high pressure and double crank links to lock the mould.
- Two ways of operating: automatic and manual.
- Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
- Ideal cooling system make the finished bottles without any flaws.
