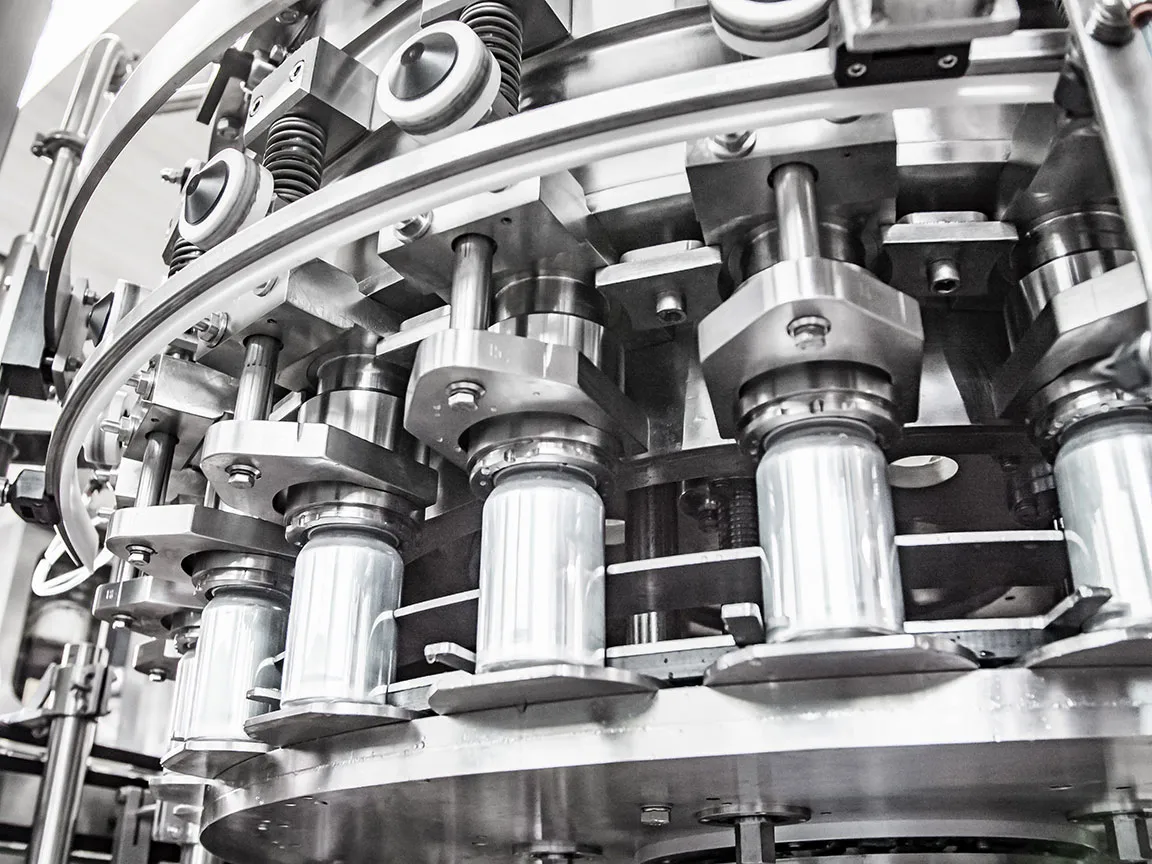

Beer Can Filling Seaming

It is applicable for equal pressure filler and capper of carbonated drinks in beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit. Filling and sealing is the overall designed, power system by filling sealing system to ensure that both the absolute synchronization and coordination. It adopts the advanced machine, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can equip long-distance control system according to the customers’ request. It is the preferred equipment for the medium beer and beverage plant.

Video

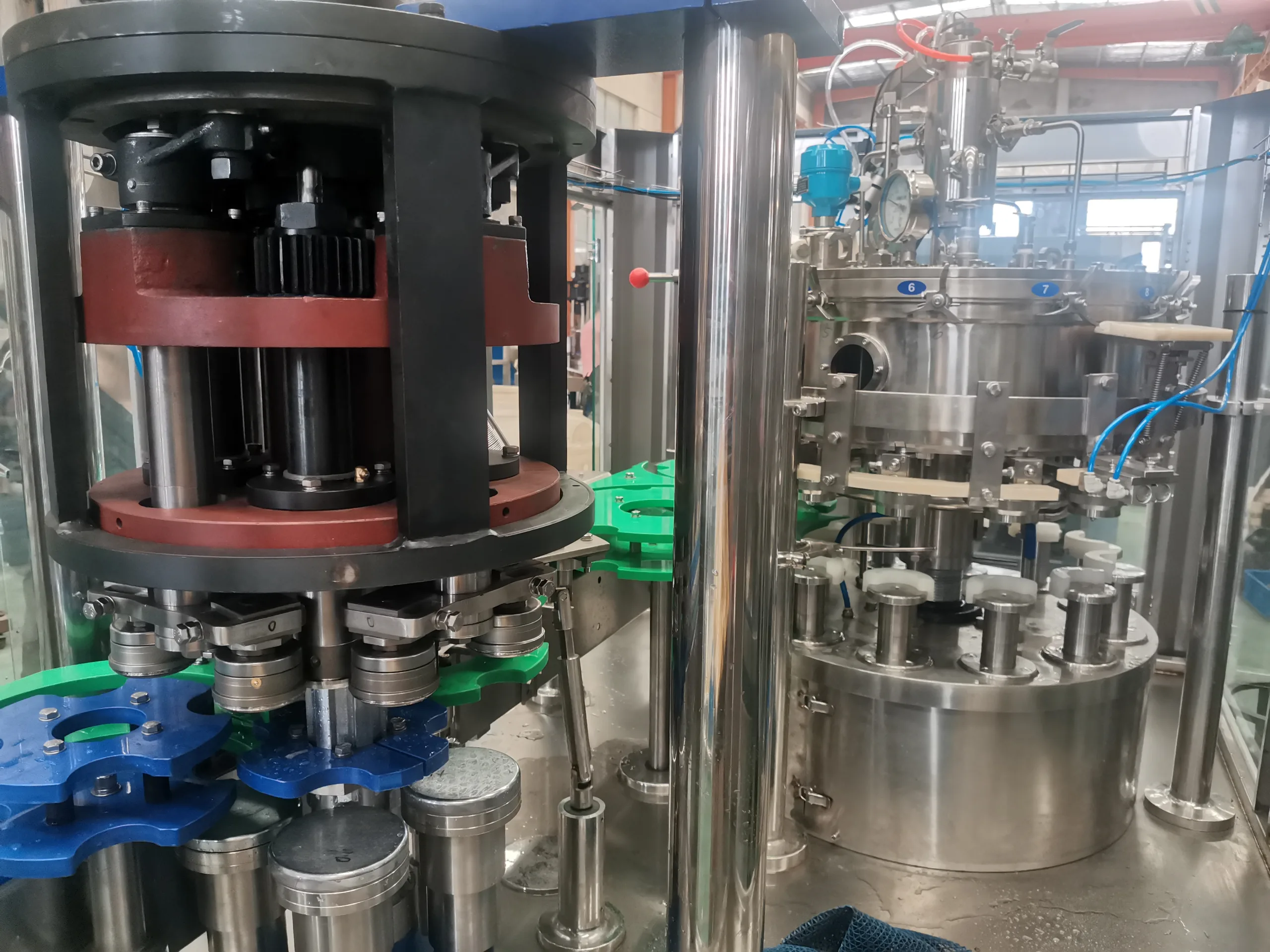

Detailed Images

Machine Parameters

Main features :

This machine works harmoniously with chain plate conveyor belt;

This machine integrated 2 functions: 1. filling the empty cans, 3. sealing the cans

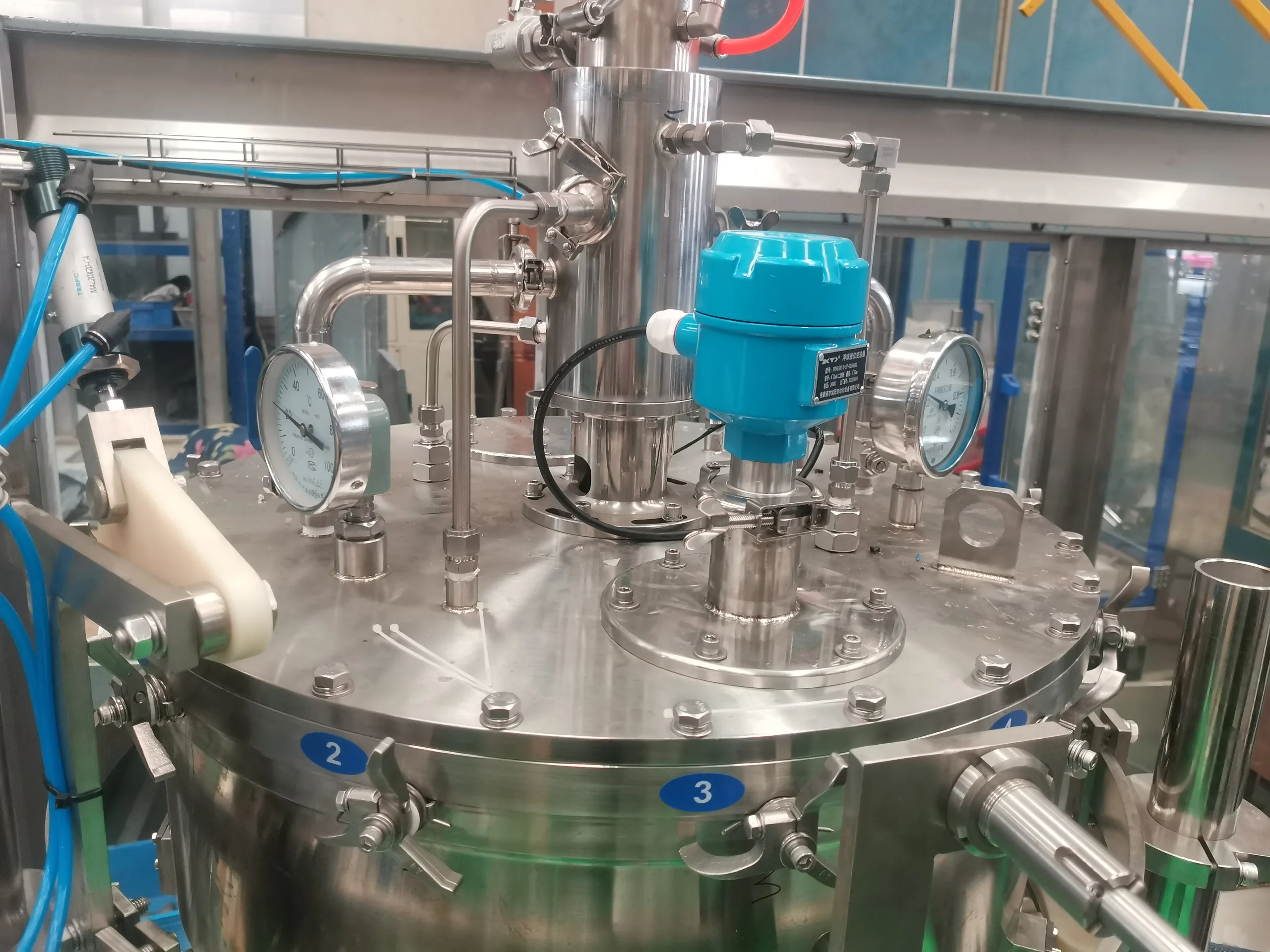

Filler Station:

  • High precision beer filling nozzle , ensure high filling precision & filling smoothly & steadily,
  • Isobaric Pressure filling nozzles which ensure minimal loss of CO2 from the drink
  • All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
  • CIP ( clean in place) sideway pipeline in-build, can connect with CIP station or Tap water to clean

Capper station:

  • Ingenious lid loading device to make sure no can, no lid loading, no sealing;
  • Energy saving model, one motor can process all actions;
  • Full sealing effect make sure to be suitable for liquid packing can;
  • The machine suitable for all kinds of cans with same diameter, height can be adjusted easily;
  • Twice sealing tech to make well sealing effect, no leakage;

Electric Part & Safe Device & Automation:

  • When accident system automatic stop & alarm
  • Emergency switch when accident
  • PLC control full-automatic working, inverter in-build, speed adjustable
  • Touch-screen Control Panel, easy operate
    Model TFS-D-6-1 TFS-D-12-1 TFS-D-12-4 TFS-D-18-4 TFS-D-20-4 TFS-D-30-6 TFS-D-40-6
    Capacity(BPH) 500 1200-1500 3000-3500 6000-7000 12000 15000 21000
    Suitable bottle PET Can,Aluminum Can ,Iron Can and so on
    Filling precision ≤±5mm
    Filling way add CO2 then fill,Double exhaust to relieve pressure
    Filling pressure ≤0.4Mpa
    Powder(KW) 2 2.2 2.2 3 3.5 3.5 5

Production Lines Flow Chart

Automatic Labeling Machine

Automatic Labeling Machine

This machine adopts international advanced technology; cover the circle label on the PET bottle. And then hot shrinking to fix on the position which bottle body designated.This machine’s structure is compact, and suitable for the production line of different direction and different height. The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.

View Details
Shrink Wrapping Machine

Shrink Wrapping Machine

As the latest upgraded packaging equipment, our equipment is a brand new packaging equipment designed and manufactured based on the characteristics of heating shrinkage of packaging film. It can arrange single product (such as PET bottle) automatically, assemble into groups, push bottle servo, wrap film servo, and finally form a set package after heating, shrinking, cooling and finalizing. After packaging, the products are bound firmly, the appearance is regular and beautiful, and the packaging cost is saved.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
