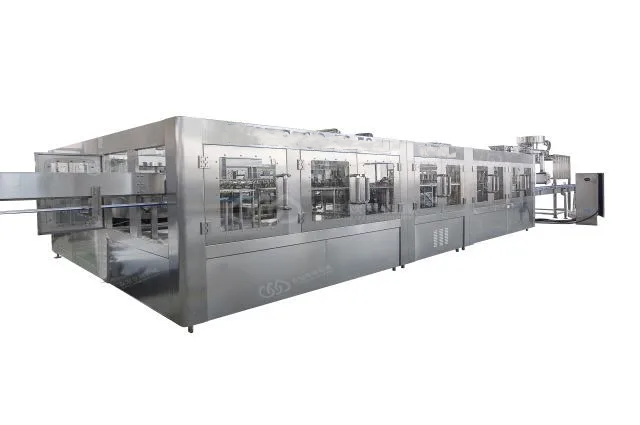

RXGF 50-50-12 18000BPH Condensed Apple Grape Juice Bottling Production Line/Juice Filling Machine Price

This 3 in 1 juice filling machine is a 3 in 1 filling machine which integrates washing, filling and capping. Mainly for the glass bottle juice beverage filling production, including igh position tank and back flow system, make filling quickly, stable and accurate, ensure the material filling temperature and reduce material loss.
This 3 in 1 juice filling machine with automatic lifting machine, vibration sorting device.

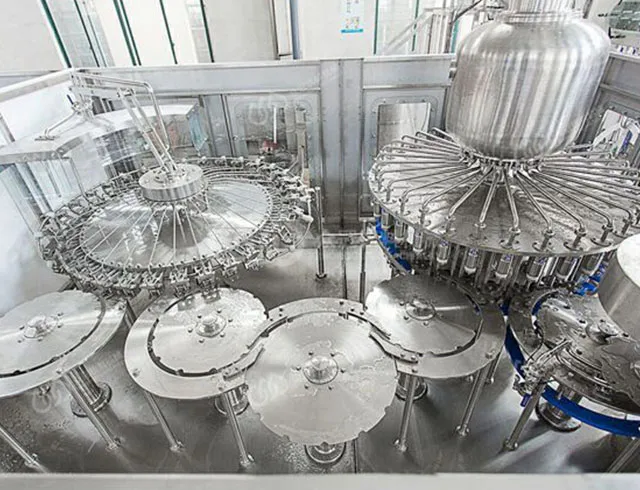

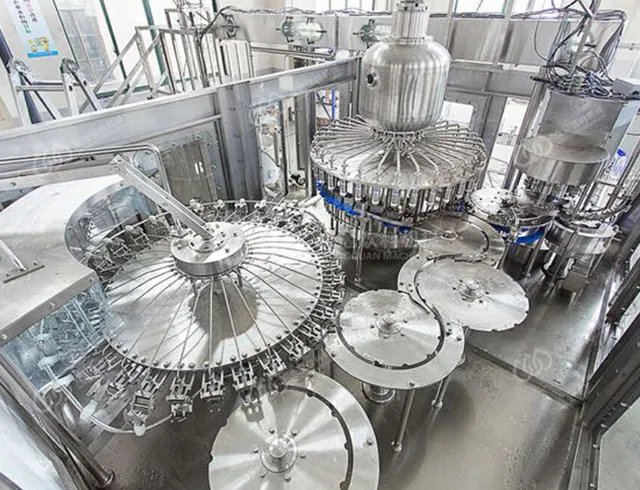

The 3 in 1 juice filling machine mainly contains three parts: bottle washing parts, filling parts, capping parts.

Video

Detailed Images

Machine Parameters

Washing part :

  1. The entire filler is micro negative pressure filling system .Unique re-flux design saves cost, convenient for external CIP (clean in place)cleaning system.
  2. High accurate SUS304L construction filling nozzle, make sure high accurate filling level SUS304L liquid bowl, pipeline system .
  3. Filling level adjustable by choosing different silicone gasket (quick change over parts) No bottles, no filling .
  4. Butterfly type liquid bowl, with automatic water level controller.
  5. If the fruit juice contains fruit granules, we need two different canned parts. First, fill the fruit granules with piston type filler, and then fill the fruit juice with equal pressure filler.

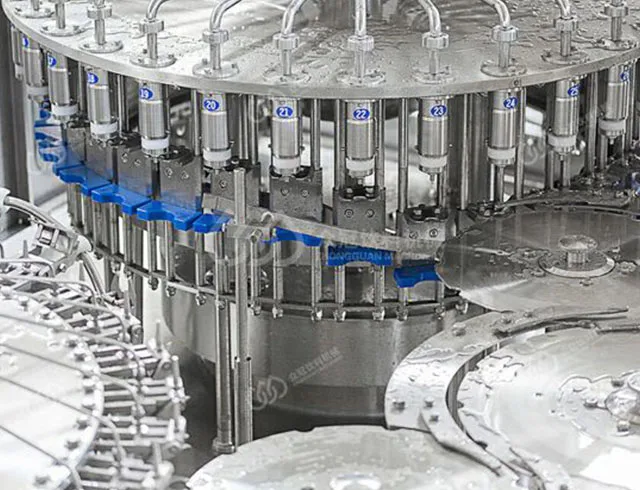

Filling part :

  1. The entire filler is micro negative pressure filling system .Unique re-flux design saves cost, convenient for external CIP (clean in place)cleaning system.
  2. High accurate SUS304 construction filling nozzle, make sure high accurate filling level SUS304L liquid bowl, pipeline system .
  3. Filling level adjustable by choosing different silicone gasket (quick change over parts) No bottles, no filling
  4. Butterfly type liquid bowl, with automatic water level controller.
  5. If the fruit juice contains fruit granules, we need two different canned parts. First, fill the fruit granules with piston type filler, and then fill the fruit juice with equal pressure filler.

Capping part :

  1. Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
  2. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.

  3. The capper is equipped with inlet bottle detection switch.

  4. Use waterfall or centrifugal cap cover machine.



    Project Name:Fruit Juice Hot Filling Machine
    Model RXGF RXGF RXGF RXGF RXGF RXGF
    14/12/5 16-16-5 24-24-8 32-32-8 40-40-10 50-50-12
    Washing Nos 14 16 24 32 40 50
    Filling Nos 12 16 24 32 40 50
    Capping Nos 5 5 8 8 10 12
    Capacity(BPH) 3500 5000 8000 12000 15000 18000
    Suitable bottle Glass bottle and PET bottle
    Bottle Volume 150ml to 2.5Ltr (Customized)
    Bottle diameter(mm) Dia50-Dia115
    Bottle height 160-320mm
    Compress air pressure(Mpa) 0.3-0.4
    Washing medium Aspetic water
    Rinsing pressure(Mpa) >0.06  <0.2
    Filling temperature 85~90℃
    (℃)
    Filling theory Micro negative pressure filling
    Application Fruit juice hot filling machine
    Total powder 2KW 2.2KW 3KW 4KW 7.5KW 7.5KW
    Measurement 2360*1770*2700 2760*2060*2700 2800*2330*2700 4215*2960*2700 4360*3300*2700 5900*3300*2700
    (mm)
    Weight 3200kg 4000kg 4500kg 6500kg 8000kg 9500kg

Production Lines Flow Chart

Water treatment system

Water treatment system

Through our water purification machine, we can effectively process fresh water, resulting in pure, drinking, and mineral water. Our manufacturing facility is equipped to manufacture drinking water, mineral water, pure water, and potable water, sourced from a wide range of water bodies including groundwater, mountain springs, rivers, wells, brackish water, and lakes. The raw water sources we work with include boreholes, rivers, wells, mountain springs, lakes, and more, forming the core of our water treatment operations.

View Details
Juice preparing system

Juice preparing system

Use squeezing, peeling, centrifugation, etc. to obtain juice from fresh fruits. Using sugar, mixing, UHT sterilization, homogenization, etc. to obtain blended fruit juice.

View Details
Blow molding system

Blow molding system

With our automatic blow molding machine, you can effortlessly create PET plastic containers and bottles in various shapes. It is widely utilized in the production of carbonated beverage bottles, mineral water containers, pesticide bottles, edible oil containers, cosmetic bottles, wide-mouth containers, and hot-fill bottles.

View Details
Automatic labeling machine

Automatic labeling machine

OPP hot melt glue labeling machine is the newest continuous operation of the labeling machine. The mainly used for container labeling cylindrical shape of detergents, beverages, mineral water, food etc. The material of label is using environmentally material of OPP films. It can be automatically oxidative decomposition and reduce production costs by more than 30 percent. Labeling machine is control by PLC touch screen, all electric eye is using imported advanced configuration. This labeling machine with high speed, high accuracy, stable performance, easy to operate and look elegant appearance.

View Details
Shrink wrapping machine

Shrink wrapping machine

As the latest upgraded packaging equipment, our equipment is a brand new packaging equipment designed and manufactured based on the characteristics of heating shrinkage of packaging film. It can arrange single product (such as PET bottle) automatically, assemble into groups, push bottle servo, wrap film servo, and finally form a set package after heating, shrinking, cooling and finalizing. After packaging, the products are bound firmly, the appearance is regular and beautiful, and the packaging cost is saved.

View Details

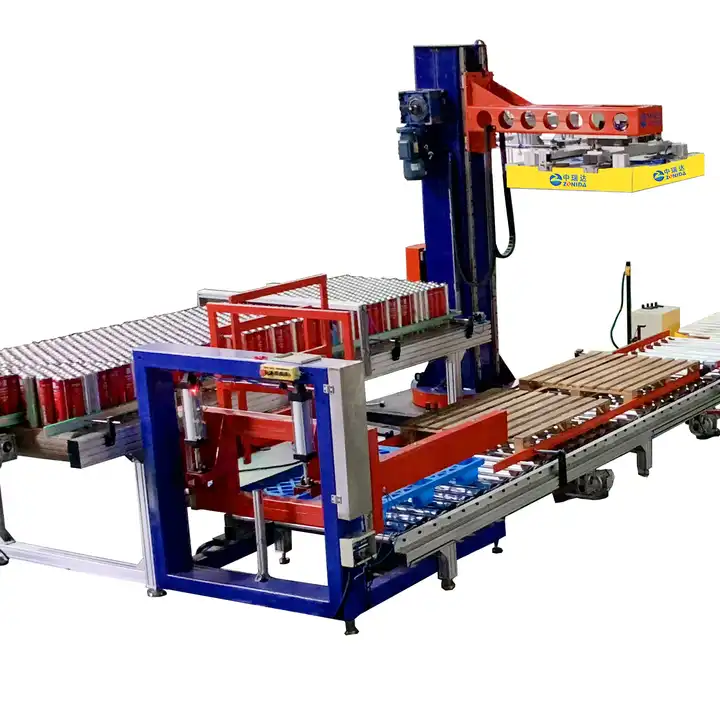

 Palletizer machine

Palletizer machine

According to a certain order, palletizer stacks the packed products(in box, bag, bucket) to the corresponding empty pallets through a series of mechanical actions so as to facilitate handling and transporting batches of products to improve production efficiency. Meanwhile it can use stack layer pad to improve the stability of each stack layer. Various forms designed to meet different palletizing requirements.

View Details

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
