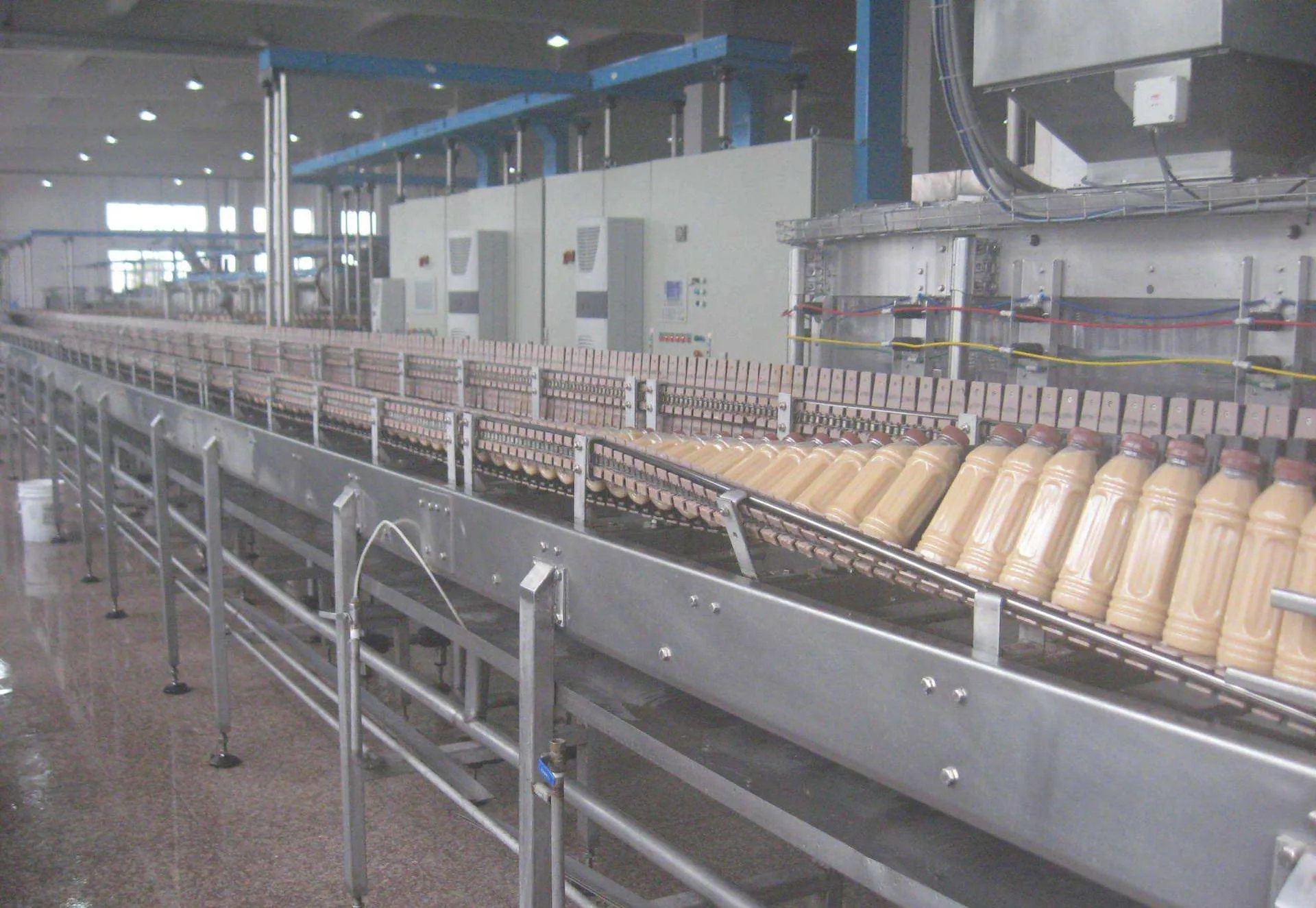

Bottle Inverse Sterilize Machine
It is mainly used in sterilizing PET bottles mouth and inside surface of caps in which haven’t been disinfected by thermal tea or juice which having been filled in PET bottle.
It mainly consist of chief conveyor chain system, body frame, bottle reversing chain system, bottle reversing guiding rod and bottle repositioning rod.
Using its inner thermal medium to disinfect bottle mouth and caps without any other heat sourceto save energy. The machine is fully made of SUS 304, more convenient in operation.
After filling and sealing, the bottles will be auto turned 90°C by this machine to flat,the mouth and caps will be sterilized by its own inner thermal medium . It uses the import chain which is stable and reliable without damage to the bottle, the speed of transmission can be adjustable.
Detailed Images
Machine Parameters
Main features :
This machine is a necessary machinery for juice, tea and other hot filling beverage production line.
Model | Production capacity(b/h) | Bottle reversing time(s) | Belt speed(m/min) | Power(kw) |
DP-8 | 3000-8000 | 15-20s | 4-20 | 3.8 |
DP-12 | 8000-15000 | 15-20s | 4-20 | 5.6 |
Production Lines Flow Chart
Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.
Applications
This machine is a necessary
machinery for juice, tea and
other hot filling beverage
production line.
