Juice and Tea Can Filling Seaming

It is widely used in the filling and sealing of cans such as beverages, mineral water and juice and other non-carbonated drinks.It has the characteristics of fast filling and sealing speed, consistent liquid level in the tank to the tank opening after filling, stable operation of the whole machine, good sealing quality, beautiful appearance, convenient use and maintenance, touch screen operation, frequency conversion speed regulation, etc. It is an ideal filling and sealing equipment for various juice beverages and water.

Video

Detailed Images

Machine Parameters

Main features :

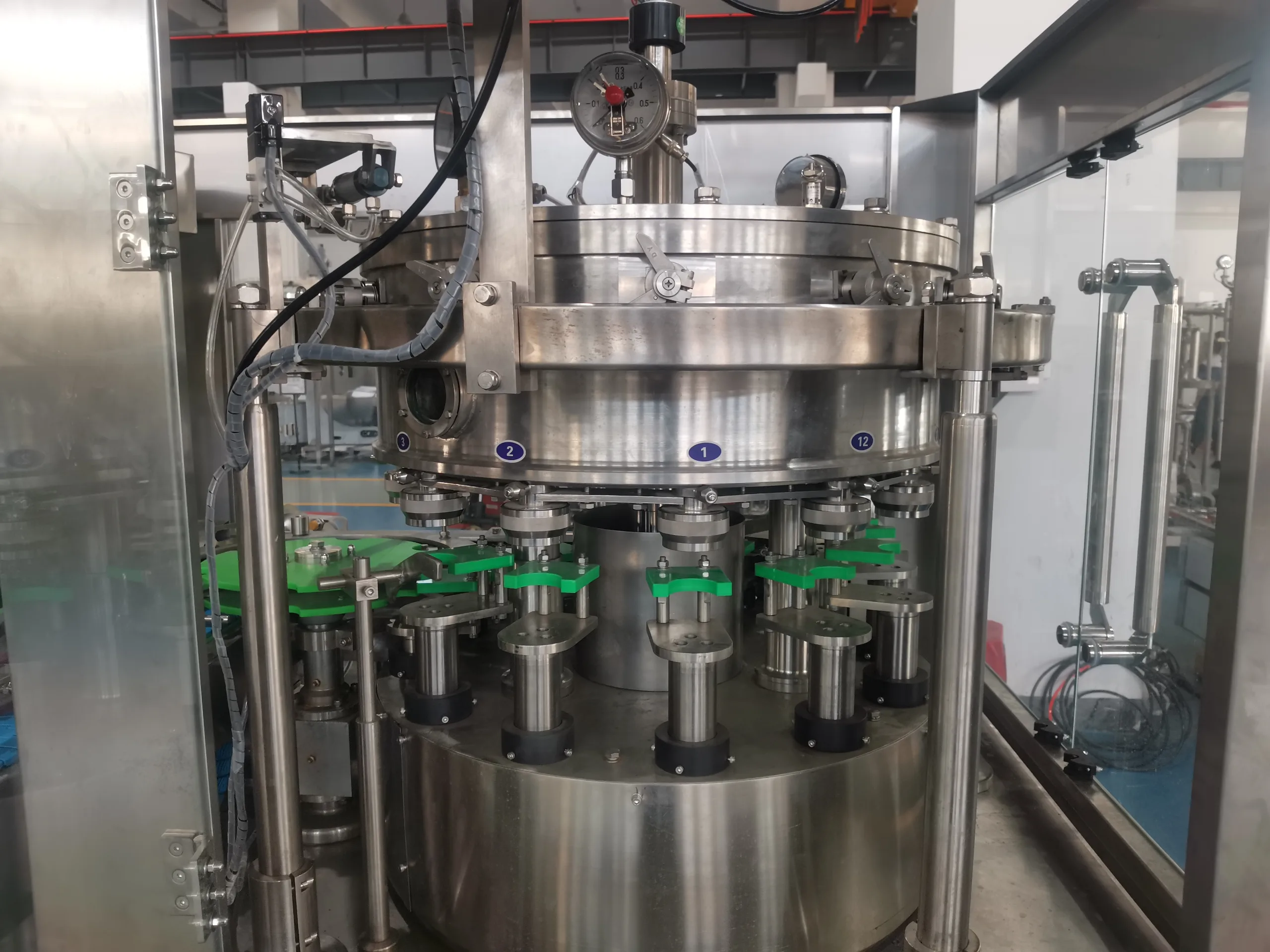

The filling valve adopts high-precision mechanical valve, which has fast filling speed and high liquid level precision.
The filling cylinder adopts a sealing cylinder designed by 304 material to realize micro-negative pressure gravity filling.
Filling valve flow rate is more than 125ml / s.
The main drive adopts a combination of a toothed belt and a gearbox open transmission, which has high efficiency and low noise.
The main drive adopts variable frequency stepless speed regulation, and the whole machine adopts PLC industrial computer control; the sealing machine and the filling machine are connected by a coupling to ensure the synchronization of the two machines.
The sealing technology is from Ferrum Company of Swiss.

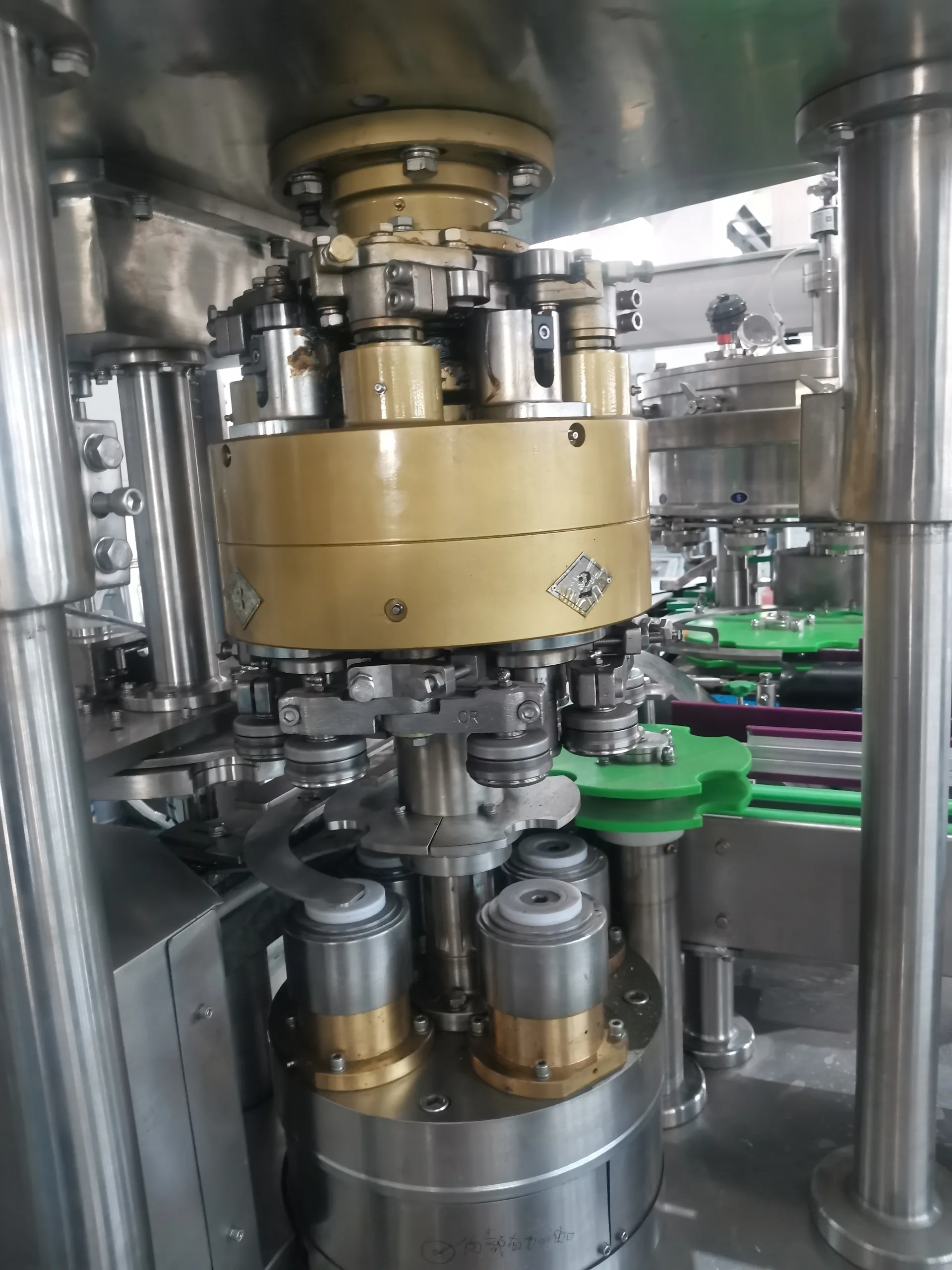

The sealing roller is quenched with high hardness alloy (HRC>62), and the sealing curve is precision machined by optical curve grinding to ensure the quality of sealing. The guide bottle system can be changed according to the bottle type.
The sealing machine introduces Taiwan sealing rollers and indenters to ensure the quality of the sealing. This machine has a can bottom cover, no cans and no cover control system to ensure the normal operation of the machine and reduce the cover loss rate.
The machine has CIP cleaning function and centralized lubrication system.

Working process:

This machine has the remarkable characteristics of fast filling speed, consistent liquid level in the tank to the top of the tank after filling, stable operation of the whole machine, good sealing quality, beautiful appearance, convenient use and maintenance, etc.

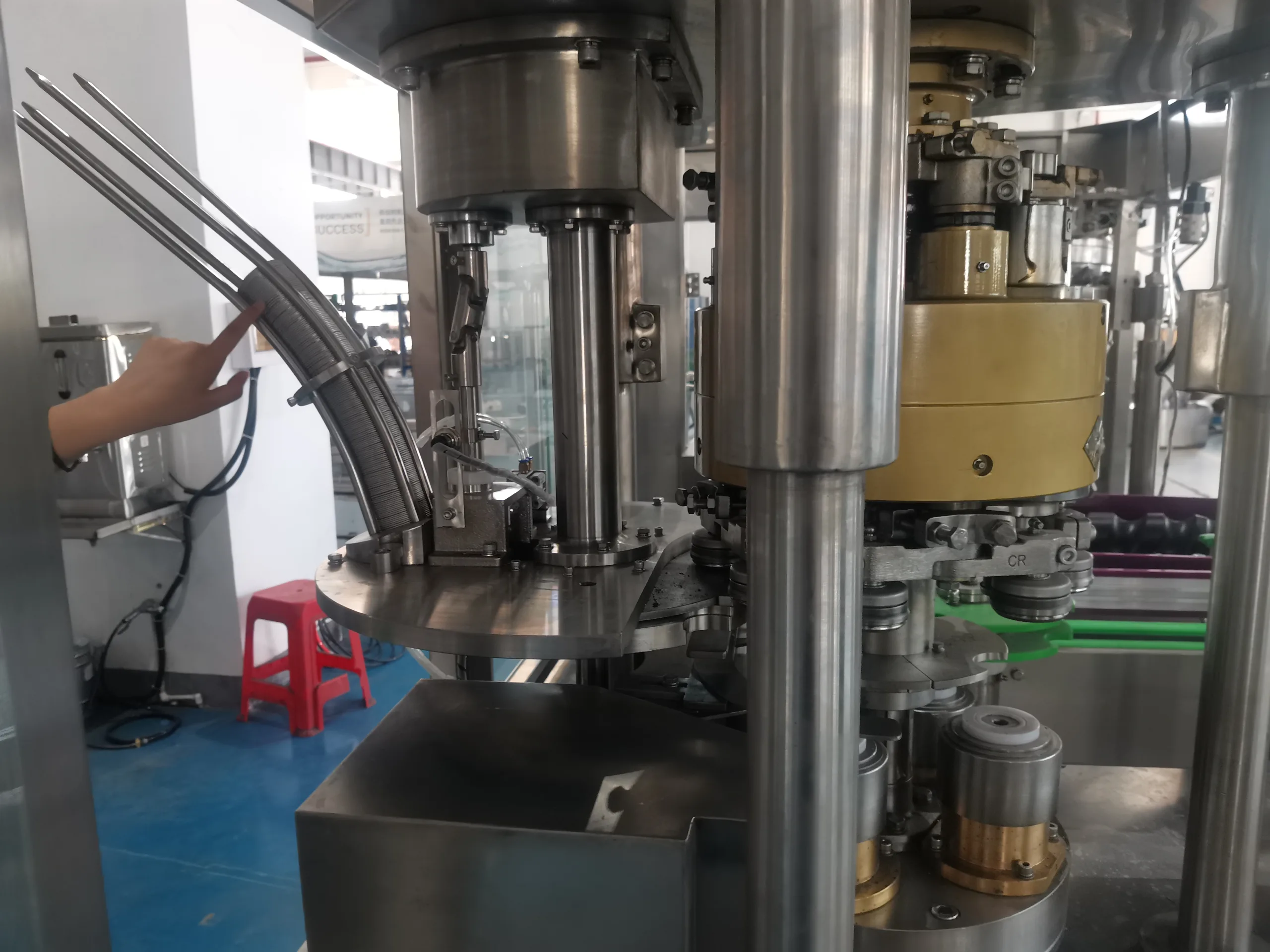

Using the normal pressure filling principle, when the empty can enters the lifting tray through the dial, the filling valve and the empty can are aligned, the empty can is raised and sealed, and the valve port of the filling valve is automatically opened. Stop filling when the valve return port is blocked. The filled can is sent to the head of the sealing machine through the hook chain, and the lid is sent to the can mouth through the cap feeder and the pressure head. When the tank holding mechanism is raised, the pressure head presses the tank mouth, and the sealing wheel is pre-sealed and then sealed.

Configuration:

The main electrical components of this machine adopt high-quality configuration such as Siemens PLC, Omron proximity switch, etc., and are designed into a reasonable configuration form by the company’s senior electrical engineers. The entire production speed can be set by itself on the touch screen according to the requirements, all common faults are automatically alarmed, and the corresponding fault causes are given. According to the severity of the fault, the PLC automatically judges whether the host can continue to run or stop.
Functional characteristics, the whole machine has various protections for the main motor and other electrical appliances, such as overload, overvoltage and so on. At the same time, the corresponding various faults will be automatically displayed on the touch screen, which is convenient for users to find the cause of the fault. The main electrical components of this machine adopt international famous brands, and brands can also be formulated according to customer requirements.
The whole machine is framed by stainless steel plate, which has good waterproof and anti-rust functions.

Model	TFS-D-6-1	TFS-D-12-1	TFS-D-12-4	TFS-D-18-4	TFS-D-20-4	TFS-D-30-6	TFS-D-40-6
Capacity(BPH)	800-1000	1800-2000	4000-5000	8000-9000	13000-14000	18000-20000	24000-25000
Suitable bottle	PET Can,Aluminum Can ,Iron Can and so on
Filling precision	≤±5mm
Filling pressure	≤0.4Mpa
Powder(KW)	2	2.2	2.2	3	3.5	3.5	5

Production Lines Flow Chart

Water treatment system

<p>Through our water purification machine, we can effectively process fresh water, resulting in pure, drinking, and mineral water. Our manufacturing facility is equipped to manufacture drinking water, mineral water, pure water, and potable water, sourced from a wide range of water bodies including groundwater, mountain springs, rivers, wells, brackish water, and lakes. The raw water sources we work with include boreholes, rivers, wells, mountain springs, lakes, and more, forming the core of our water treatment operations.</p>

View Details

Juice preparing system

<p>Use squeezing, peeling, centrifugation, etc. to obtain juice from fresh fruits. Using sugar, mixing, UHT sterilization, homogenization, etc. to obtain blended fruit juice.</p>

View Details

Automatic Labeling Machine

<div class="elementor-element elementor-element-faaad90 elementor-widget elementor-widget-text-editor" data-id="faaad90" data-element_type="widget" data-widget_type="text-editor.default"> <div class="elementor-widget-container"> <p>This machine adopts international advanced technology; cover the circle label on the PET bottle. And then hot shrinking to fix on the position which bottle body designated.This machine’s structure is compact, and suitable for the production line of different direction and different height. The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.</p> </div> </div> <div class="elementor-element elementor-element-cfeb924 elementor-widget elementor-widget-button" data-id="cfeb924" data-element_type="widget" data-widget_type="button.default"> <div class="elementor-widget-container"> <div class="elementor-button-wrapper"></div> </div> </div>

View Details

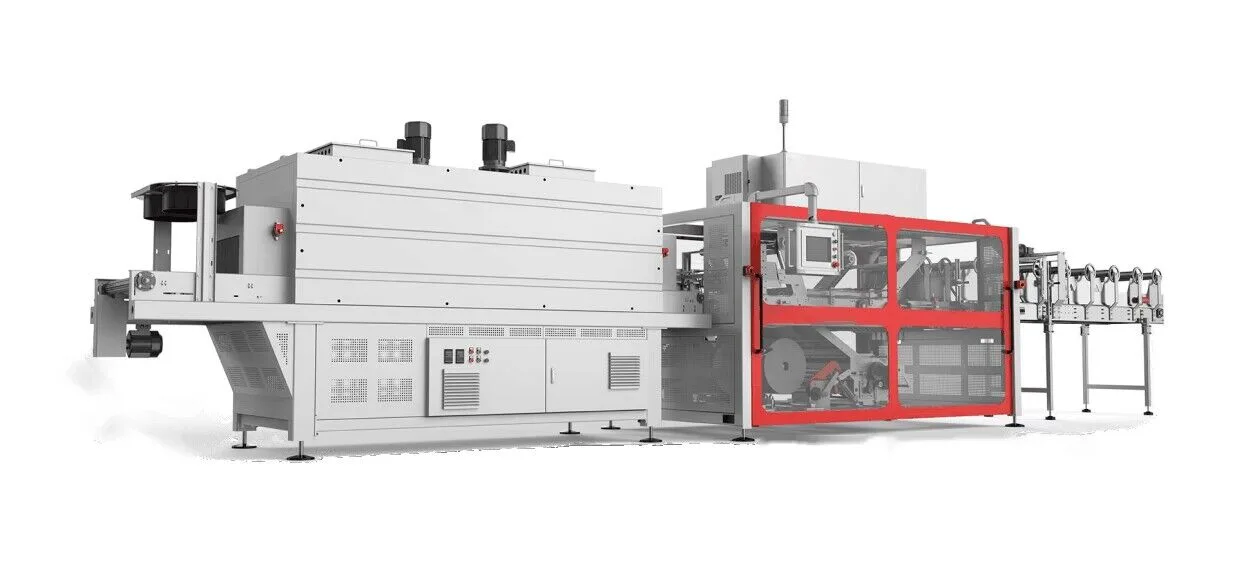

Shrink Wrapping Machine
