Juice preparing system

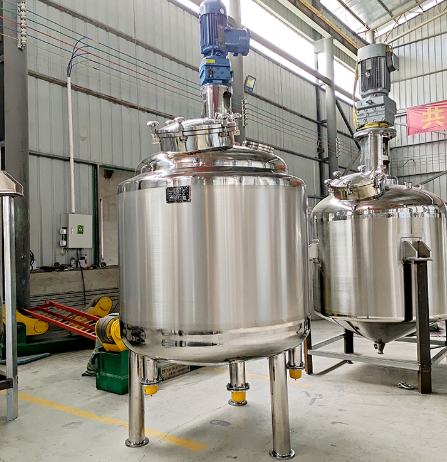

1. Sugar melting system

It is widely used in candy, pharmacy, dairy food, pastry, drink, can ect, also can be used in large restaurant or dining room to boil soup, cook, stew, boil congee, etc.. it is a good equipment of the  food processing to improve quality, shorten the time, improve working conditions.

2. Hot water system

The hot water system is used to provide the process hot water needed to melt the sugar in the juice pre-blending system. The hot water system is divided into two categories: electric hot water system and steam boiler heating system. Customers can choose the right hot water system according to their needs.



Function: 1. to preparing the syrup

2. to Assisted saccharification, sterilization

Video

Detailed Images

Machine Parameters

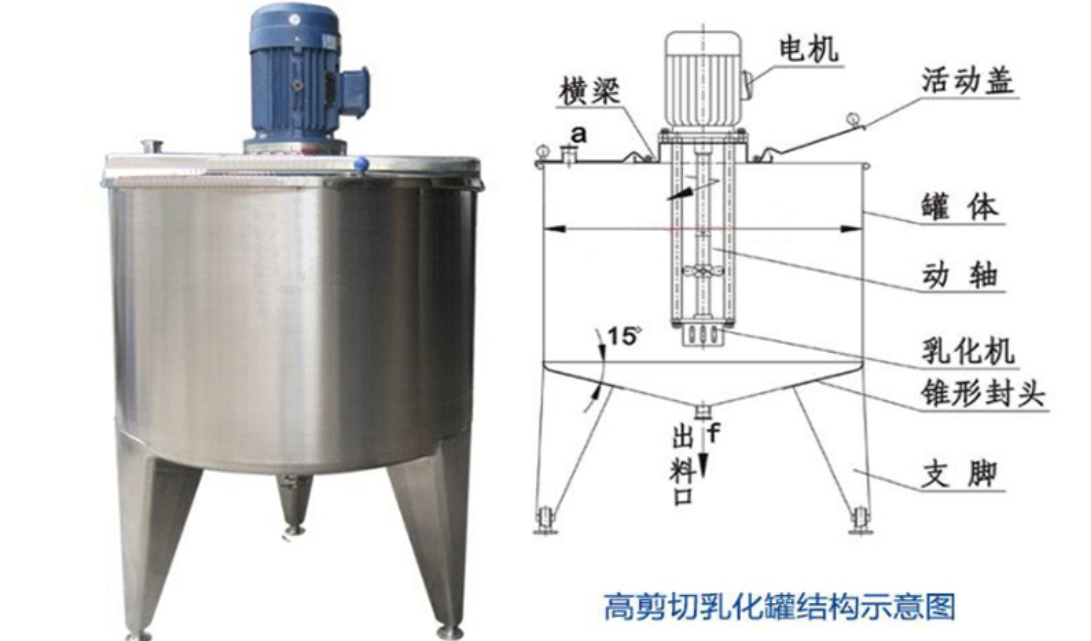

Blend tank/ Mix tank

Stir, mix, blend, and homogenize the materials. The design structure and configuration can be standardized according to the requirements of the production process. Stirred tank during agitation can be achieved feed control, the feed control, stirring and other manual controls automatic control

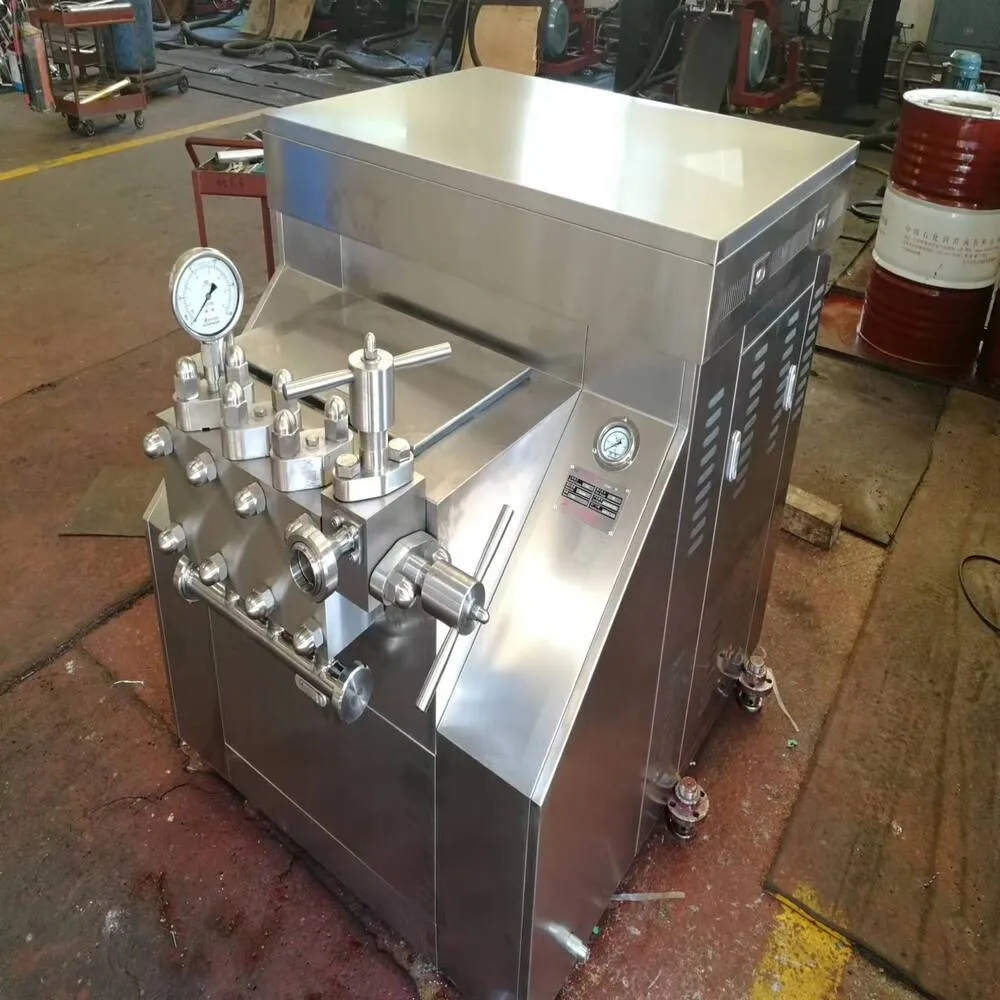

Homogenizer

The material is refined under the triple action of extrusion, strong impact and loss of pressure expansion, so that the materials can be more uniformly mixed with each otherFunction: to homogenize and emulsification the juice and the flavor, syrup together, make them in good taste. The configuration of the homogenizer needs to be configured according to the customer’s material requirements. If the customer’s drink is a relatively clear juice product, such as apple juice, there is no need for a homogenizer, if the customer’s drink is similar to mango juice, there is a certain turbidity of the juice, you need to configure a homogenizer.

Pasteurizer(plate type, tubular type)

1) Tubular UHT is controlled automatically, which considers exterior factors influence on sterilizing temperature, equips high-precision product/water temperature difference control and ensures equipment operation, technical index and material quality PLC control without complicated manual operation and surveillance. It also configures with CIP and SIP system for pre-/after production and can achieve rinsing and sterilizing requirements of equipments.Automatic tubular UHT sterilizes product within a fully-closed system with instant heating and cooling processing, which has less influence on product flavor and nutrition, avoiding second product pollution. Product pumps from closed balance tank, processed by ultra-high temperature, and then cools down to filling temperature, feeding to filler. Heating of product sterilizing uses over-heated water as medium. Filling exit temperature adjustment adopts cooling water as medium with high temperature control precision. All program can be preset according to technics and only needs index on touch screen, and then UHT can be operated according to set program.

2) Ultra-High Temperature plate-type is fully automatic plate which works at the division of general condition. The outer environment to the temperature of sterilization is highly concerned, to ensure the proper operation and quality of materials. For the requirement of hot filling techniques, 3-phase exchanger system is invited to utilize the heat source efficiently and lessen energy consumption. Water is used in both the adjustment of heating of materials and filling temperatures, to get high precise temperature control. All procedures can be designed according to the precondition of actual technics.

Production Lines Flow Chart


Warning: Invalid argument supplied for foreach() in /home/customer/www/sinopakmachinery.com/public_html/wp-content/themes/iwonder/functions.php on line 253

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.
