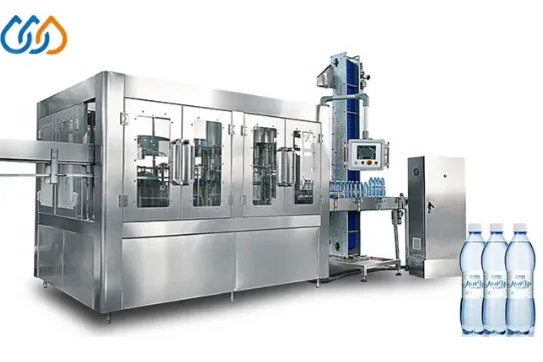

200-2000ml water filling machine

3-in-1 filling machine, combined with rinsing, filling and capping. It is used for mineral water, pure water, and other drinking water filling in PET bottles ranges from 200ml-2L, and capacity from 2000-24000BPH.

Video

Detailed Images

Machine Parameters

This machine is designed for bottling non-carbonated drinks,such as pure water,mineral water etc, itintegrates bottle washing, filling and capping into one monobloc unit.

Suspending bottle-neck clamping design makes bottle stable during the high-speed moving conditions.
By changing a few parts, it can meet the need of production of different types of bottles easily.
The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread.
Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.
Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly.
Capping is reliable and do no harm to the caps.Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
All parts that have direct contact with the water are made of high quality stainless steel.
The critical electrical components are from famous international companies, such as Mitsubishi,Omron etc
Project Name: Drinking Water Filling Machine
Model XGF8-8-3 XGF14-12-5 XGF16-16-5 XGF24-24-8 XGF32-32-8 XGF40-40-10 XGF50-50-15
Washing Nos 8 14 16 24 32 40 50
Filling Nos 8 12 16 24 32 40 50
Capping Nos 3 5 5 8 8 10 15
Capacity(BPH) 2000 5500 8000 12000 15000 18000 24000
Suitable bottle and cap PET circular or square with screw cap
Bottle Volume 150ml to 2.5Ltr (Customized)
Bottle diameter(mm) Dia50-Dia115mm
Bottle heighter 160-320mm
Compress air pressure(Mpa) 0.3-0.4Mpa
Washing medium Aspetic water
Rinsing pressure(Mpa) >0.06Mpa<0.2Mpa
Filling temperature Room temperature
Filling theory By gravity
Total powder 1.5KW 2KW 2.2KW 2.2KW 3KW 7.5KW 7.5KW
Dimension  (meter) 2*1.5*2.5 2.4*1.8*2.7 2.9*2.2*2.8 2.9*2.2*2.8 3.4*2.6*2.8 4.4*3.3*2.8 4.7*3.6*2.8

Production Lines Flow Chart

Why Choose US

  1. We are the direct manufacturer, we have been engaged in development and manufacturing of beverages and liquid food filling machines for more than 10 years, our plant area of 4000m2, with independent property rights.
  2. We have a professional team for exporting, we can supply stable quality faster delivery and clearly communications.
  3. We can make custom manufacturing, our technical team can design different size and products to meet your special requirements.
  4. Without getting customer’s approve, we will not ship the equipment hastily, every equipment will be tested continuously 24 hours before loading, we will control every step strictly in the process of manufacture.
  5. All of our equipment will have 12 months guarantee, and we will supply techinical servie all equipment life.
  6. We will supply the spare parts fast and with cost price.

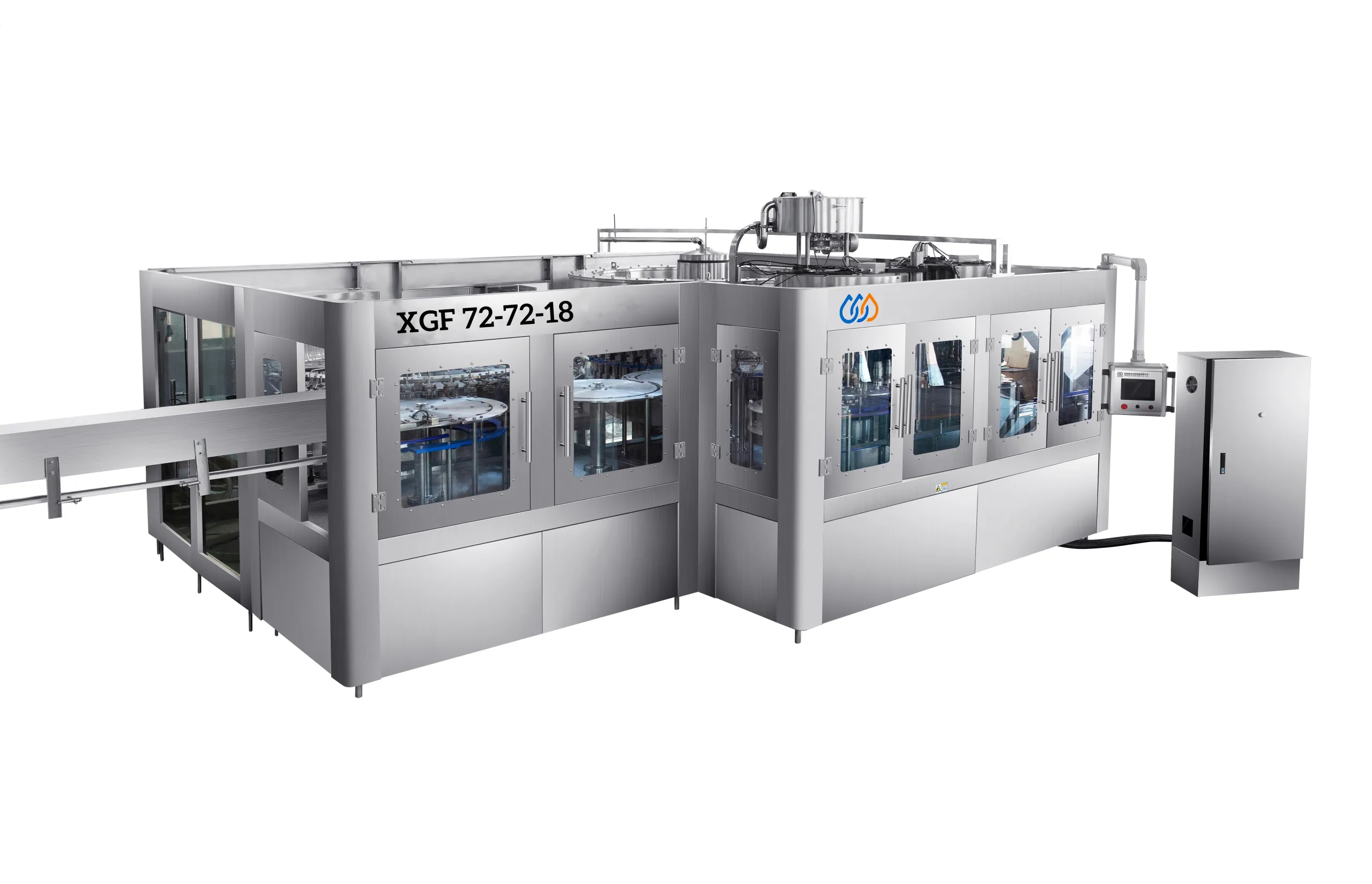

Related Cases

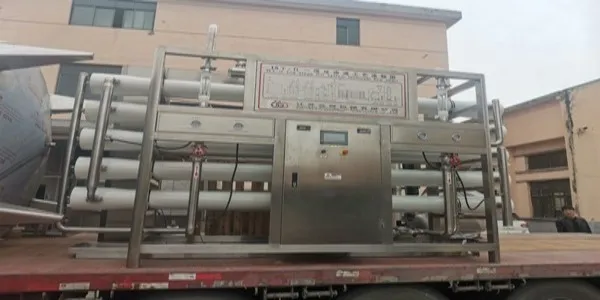

Delivery&Install
