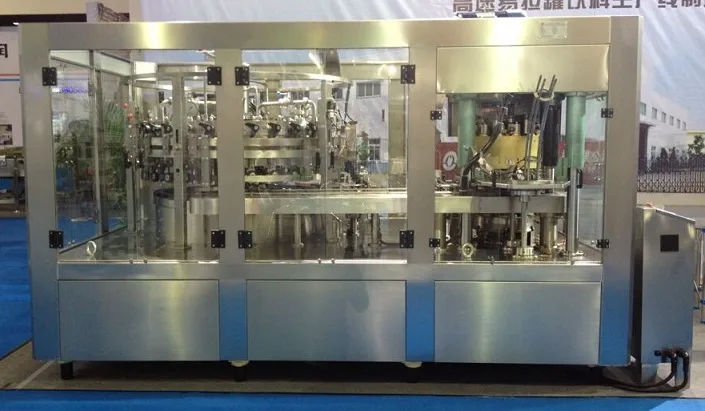

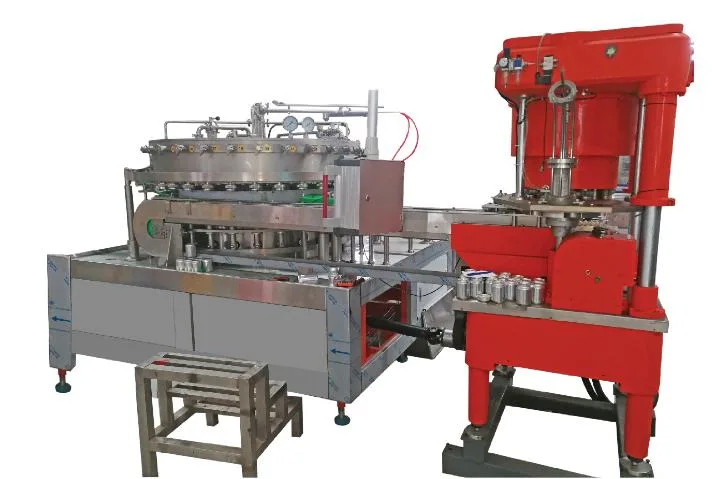

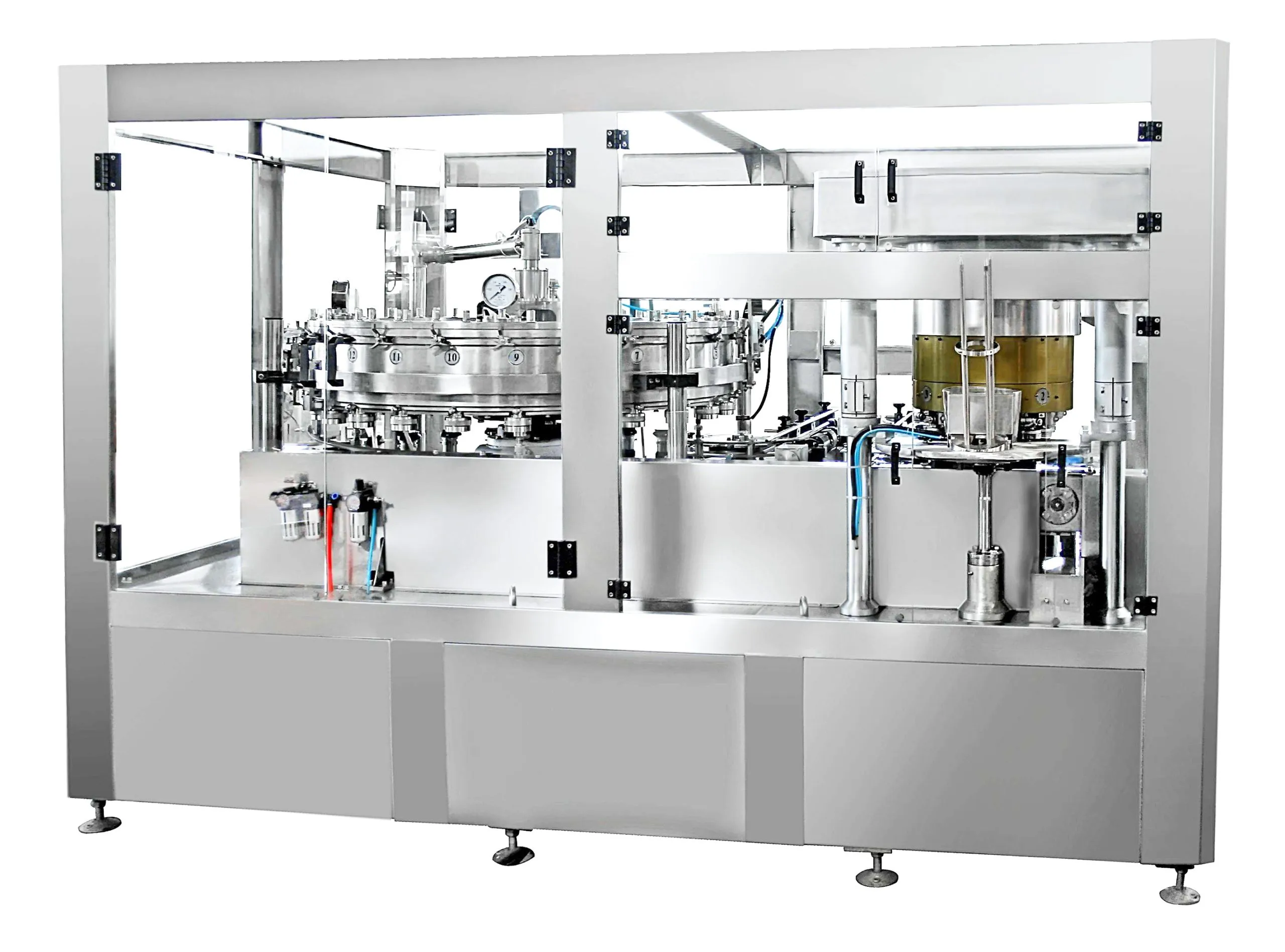

Carbonated Soft Drink Can Filiing Seaming

This machine is suitable for isobaric filling and sealing of carbonated beverages. It has the characteristics of fast filling and sealing speed, consistent liquid level in the tank to the tank opening after filling, stable operation of the whole machine, good sealing quality, beautiful appearance, convenient use and maintenance, touch screen operation, frequency conversion speed regulation, etc. It is an ideal filling and sealing equipment for various carbonated beverages and soft drinks.

Video

Detailed Images

Machine Parameters

Main features :

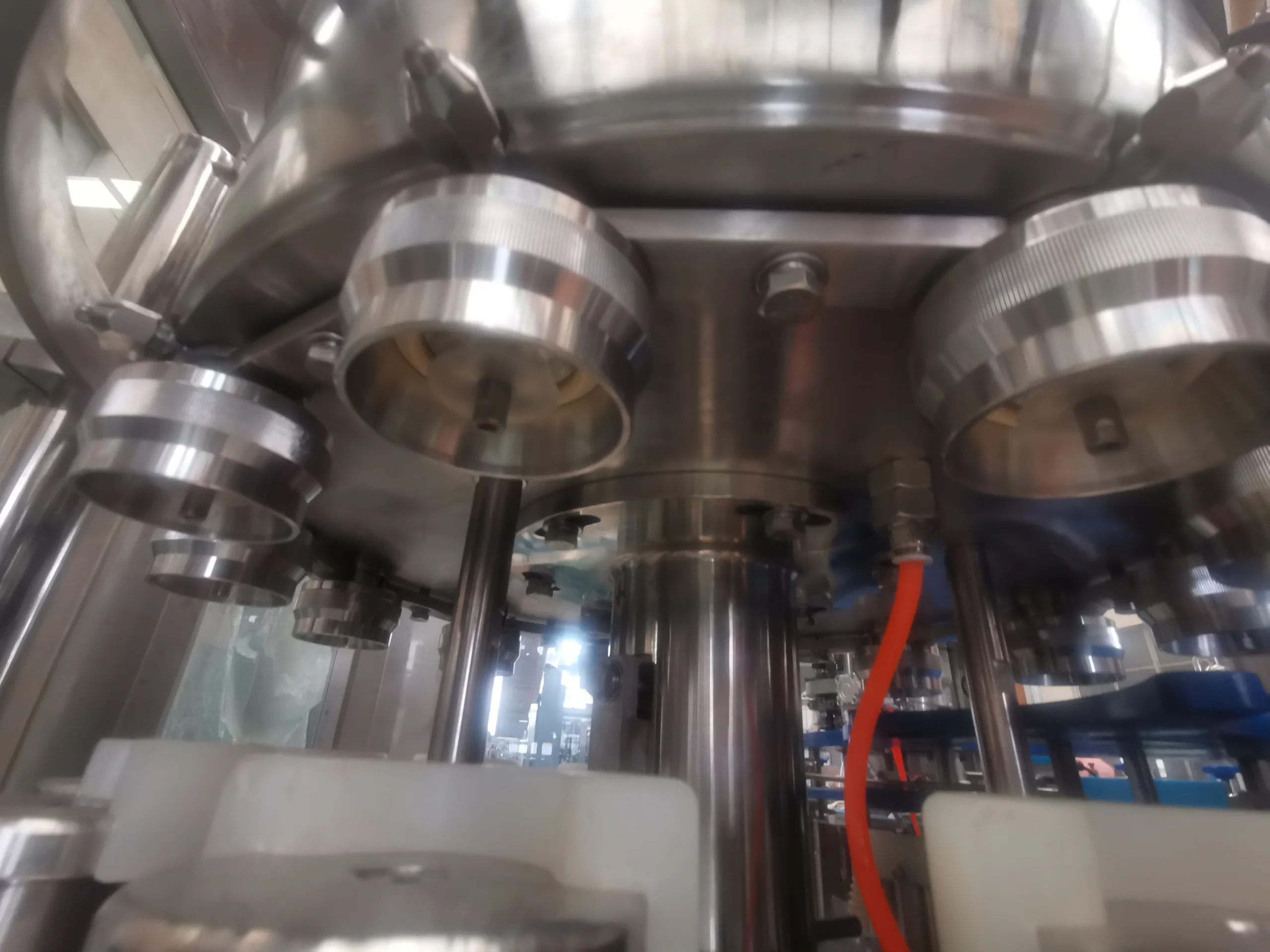

Filler Station:

High precision filling nozzle , ensure high filling precision & filling smoothly & steadily,
Isobar Pressure filling nozzles which ensure minimal loss of CO2 from the drink
All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
CIP ( clean in place) sideway pipeline in-build, can connect with CIP station or Tap water to clean

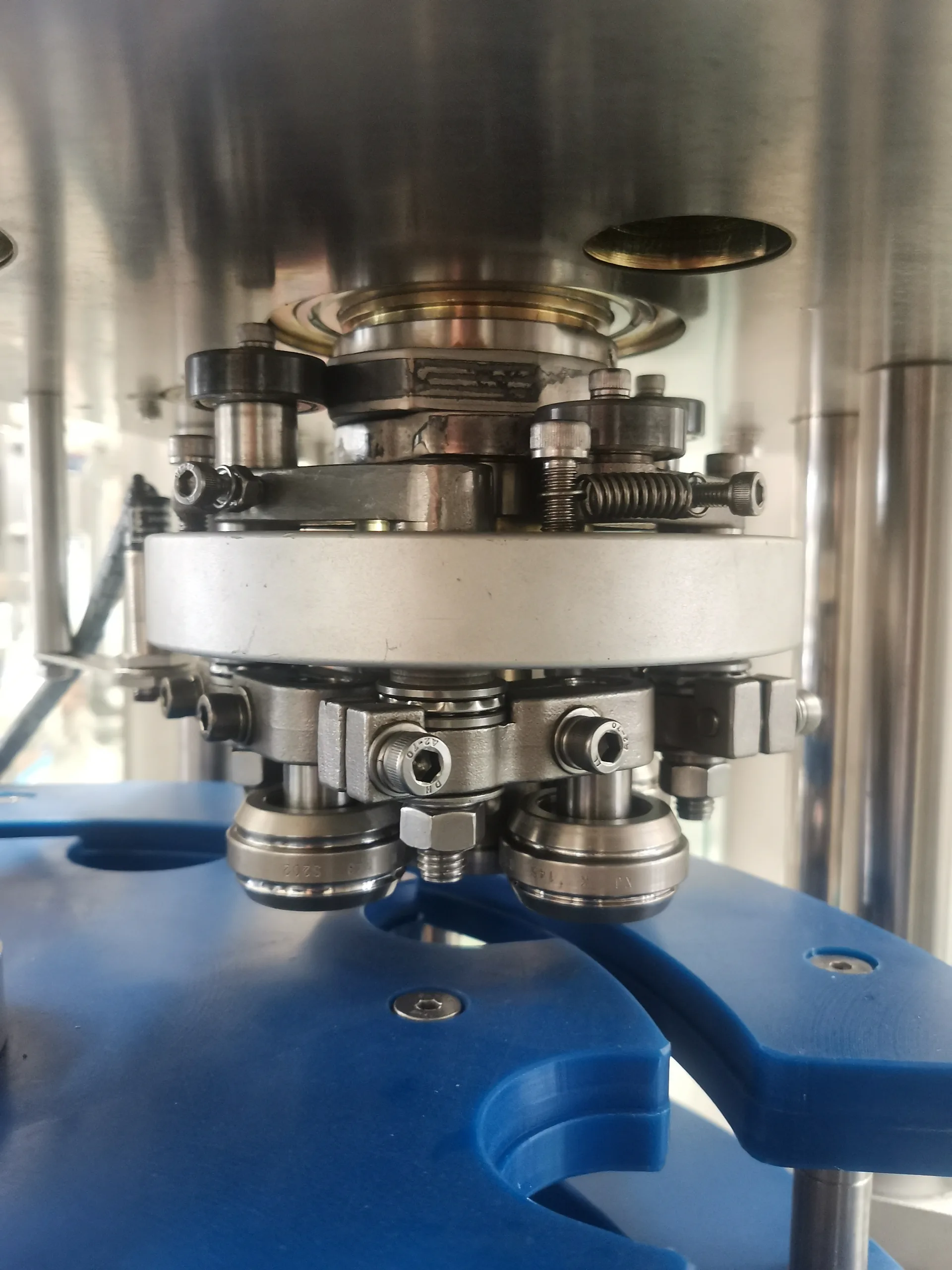

Capper station:

Electromagnetic sealing heads
All 304stainless steel construction
No cans no sealing and Automatic stop when lack of sealer

Electric Part & Safe Device & Automation:

When accident system automatic stop & alarm
Emergency switch when accident
PLC control full-automatic working, inverter in-build, speed adjustable
Touch-screen Control Panel, easy operate
Famous Omron brand sensor & other electric parts adopted, ensure system heavy duty running

Machine Base & Machine Construction:

304 stainless steel frame
Excellent start wheel design, easy change over parts
Machine Basewith anti-rust process, ensure the forever antirust
All seal where liquid may Leakage& base neck come with rubber, water proof
Manual lubrication system

Model	TFS-D-6-1	TFS-D-12-1	TFS-D-12-4	TFS-D-18-4	TFS-D-20-4	TFS-D-30-6	TFS-D-40-6
Capacity(BPH)	600-800	1500-1800	3000-4000	7000-8000	12000-13000	17000-18000	23000-24000
Suitable bottle	PET Can,Aluminum Can ,Iron Can and so on
Filling precision	≤±5mm
Filling pressure	≤0.4Mpa
Powder(KW)	2	2.2	2.2	3	3.5	3.5	5

Production Lines Flow Chart

Water treatment system

<p>Through our water purification machine, we can effectively process fresh water, resulting in pure, drinking, and mineral water. Our manufacturing facility is equipped to manufacture drinking water, mineral water, pure water, and potable water, sourced from a wide range of water bodies including groundwater, mountain springs, rivers, wells, brackish water, and lakes. The raw water sources we work with include boreholes, rivers, wells, mountain springs, lakes, and more, forming the core of our water treatment operations.</p>

View Details

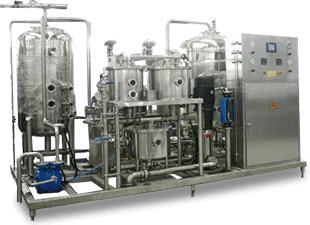

Carbonated Soft Drinks Mixing System

<p>Beverage CO2 mixer, used in the production of acidification and mixing of various gas contained beverages(water, syrup,Carbon dioxide), such as citric drink, coke, juice etc. aerated water, is the main equipment in a drink production line(especially the key equipment in the middle and high grade of drink production).</p>

View Details

Automatic Labeling Machine

<div class="elementor-element elementor-element-faaad90 elementor-widget elementor-widget-text-editor" data-id="faaad90" data-element_type="widget" data-widget_type="text-editor.default"> <div class="elementor-widget-container"> <p>This machine adopts international advanced technology; cover the circle label on the PET bottle. And then hot shrinking to fix on the position which bottle body designated.This machine’s structure is compact, and suitable for the production line of different direction and different height. The machinery part adopts combination designing of modularization, and makes the machine reasonable. The height adjustment adopts motor fluctuating; it is convenient to replace the material. The special cutter head designing, make the film-rolling cut more exactly and reliably.</p> </div> </div> <div class="elementor-element elementor-element-cfeb924 elementor-widget elementor-widget-button" data-id="cfeb924" data-element_type="widget" data-widget_type="button.default"> <div class="elementor-widget-container"> <div class="elementor-button-wrapper"></div> </div> </div>

View Details

Shrink Wrapping Machine

<p>As the latest upgraded packaging equipment, our equipment is a brand new packaging equipment designed and manufactured based on the characteristics of heating shrinkage of packaging film. It can arrange single product (such as PET bottle) automatically, assemble into groups, push bottle servo, wrap film servo, and finally form a set package after heating, shrinking, cooling and finalizing. After packaging, the products are bound firmly, the appearance is regular and beautiful, and the packaging cost is saved.</p>

View Details
