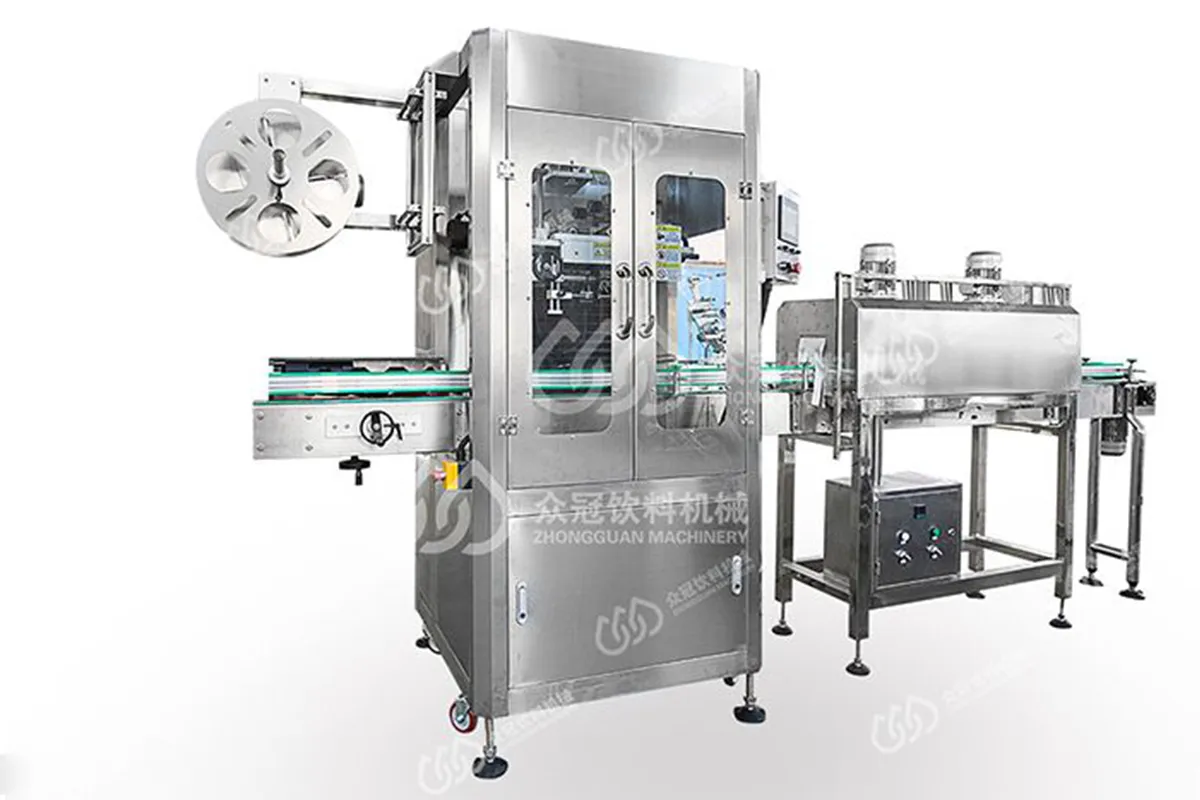

Sleeve shrink labeler for 5 Gallon Bottle Cap
PET Bottled and Tin Canned filling production line products.
Such as the filling and bottling production line of Mineral Water, Purified Water, Drinking Water, Beverage, Beer, Juice, Dairy, Condiment,etc.

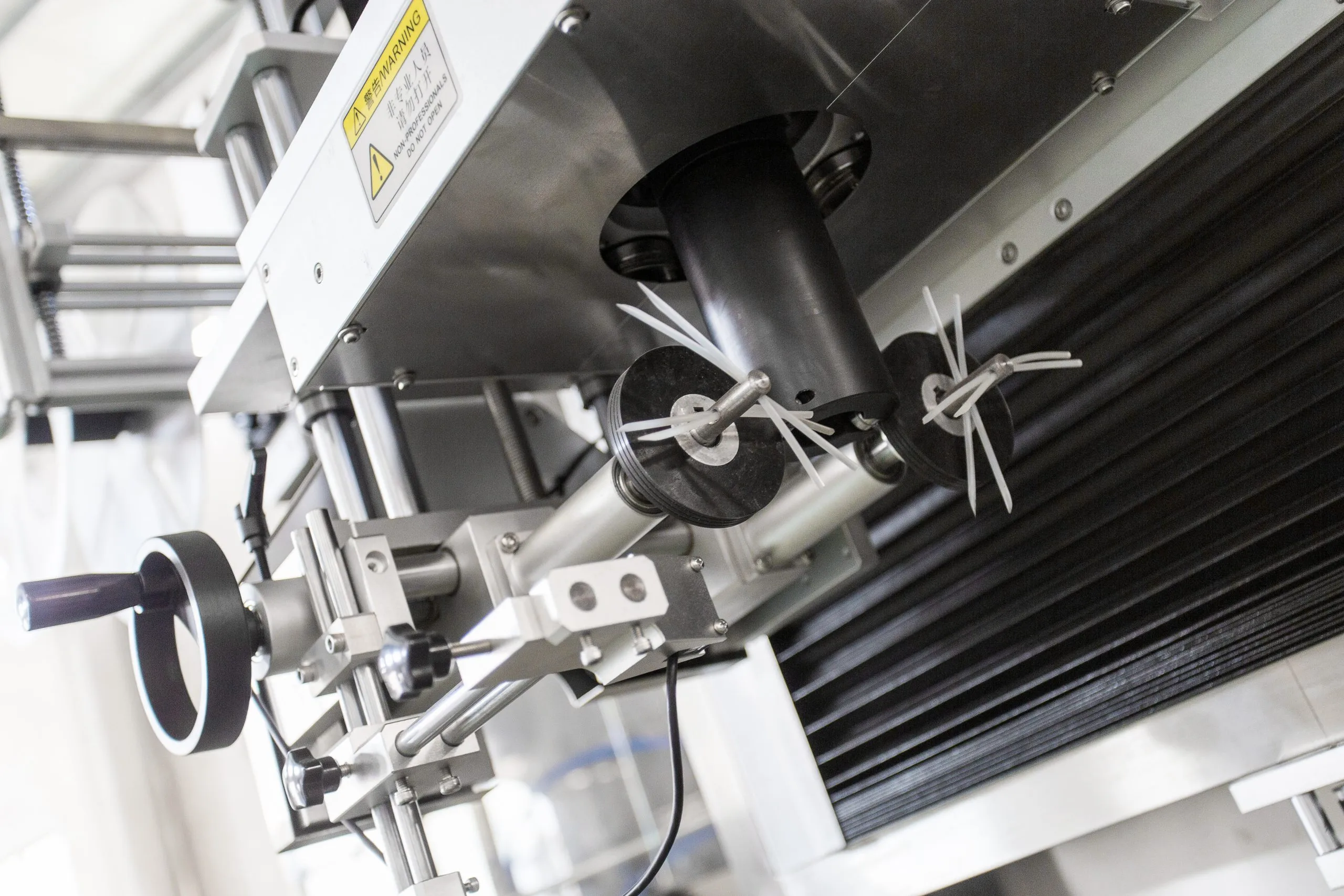

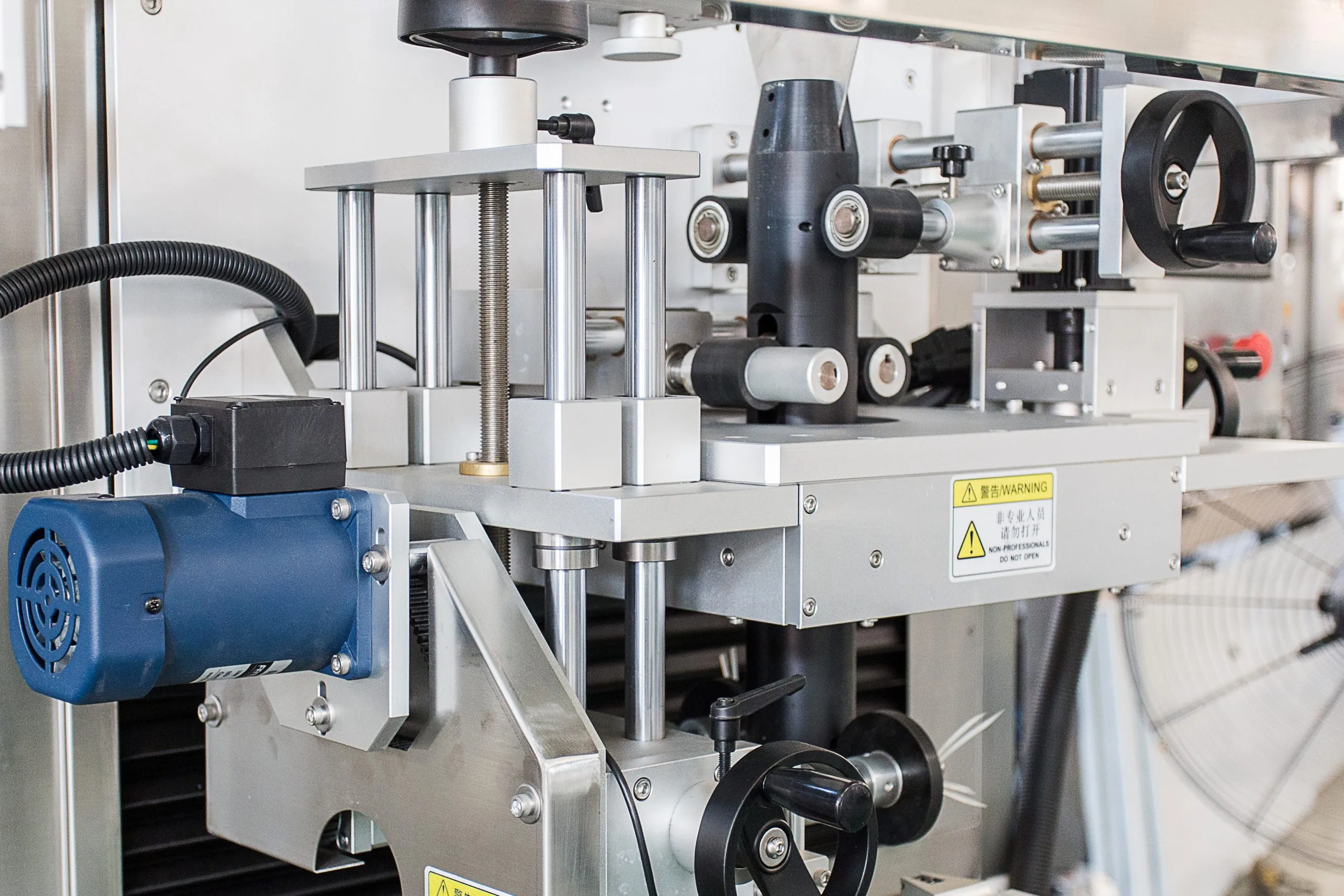

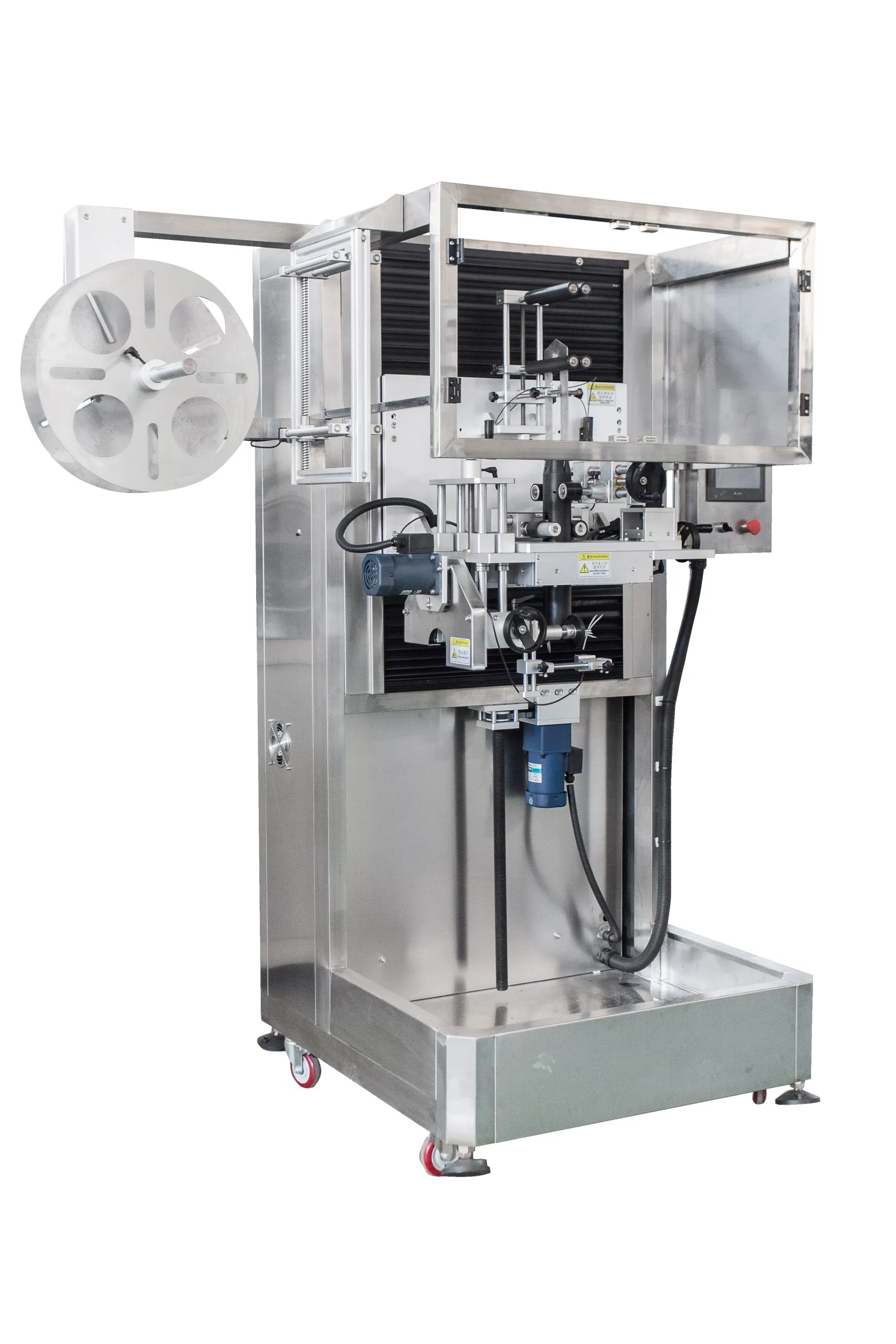

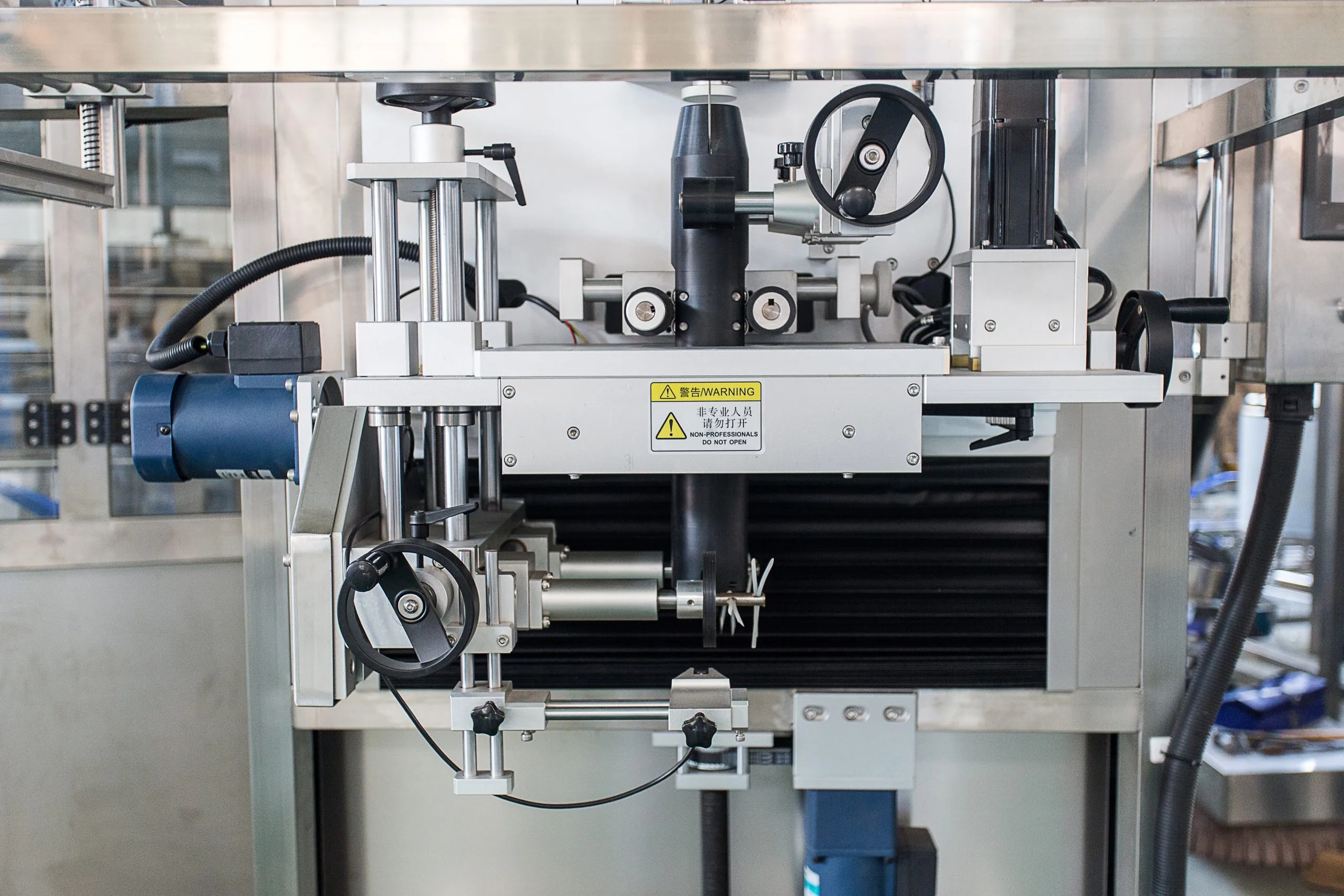

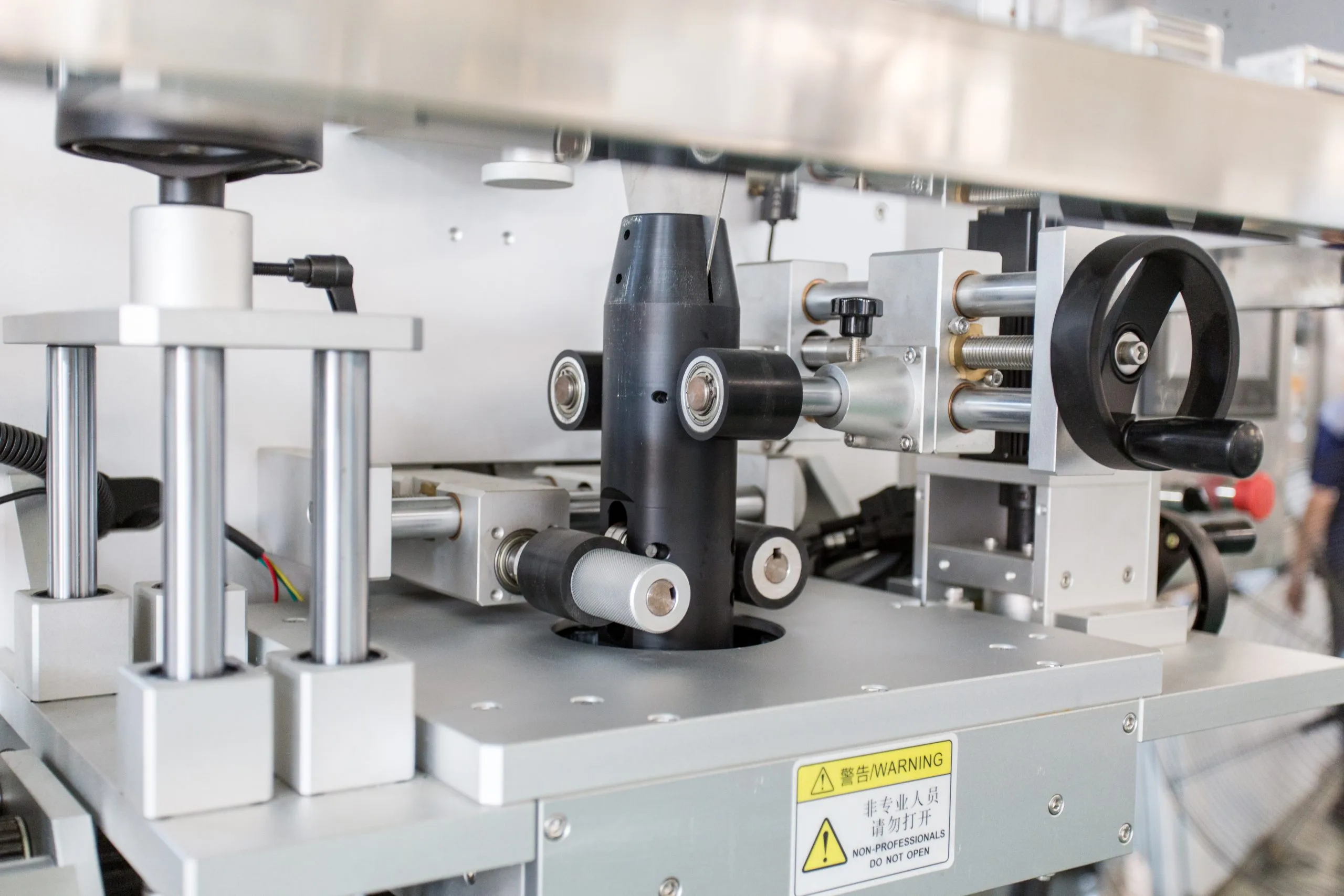

Detailed Images
Machine Parameters
Main features :
☆ the whole machine adopts stainless steel and high-quality aluminum, well-structured, compact and easy to adjust.
☆ without anchor bolts can be easily mobile, flexible space with the production.
☆ shrink film label rack, with adjustable brake, and paper tube according to label 5 “~ 10” to facilitate adjustment.
☆ unique set of standard methods, the use of compression-type sets of tender, in a convenient and reasonable.
☆ Automatic feed motors, at the same time leveling materials shrink film tension adjustment.
☆ Volume label detection system ensure that the minimum error.
☆ Unique design of the knife is special in the framework, can change blocks ATC freely, ATC quickly and easily.
☆ Center column clamping system, change quickly and without any tools.
☆ Label positioning device, according to the demand for container shape, position adjustment can be synchronized movements.
☆ Hours bottle-screw, positioning belt, chain adjustment using synchronous manner, and speed adjustment is simple, quick.
☆ Adopt Japanese servo motor and high-sensitivity photoelectric, standard length is precision
☆ Stainless steel electrical control box, control the use of Japan’s Mitsubishi PLC.
☆ adopt advanced automatic control technology of the man-machine interface, the key electrical components are adopted internationally renowned products
Main technical parameters of the equipment | |||||
Model | SL-100 | SL-200 | SL-300 | SL-400 | SL-500 |
Voltage | AC220V, 50/60HZ, 1.5-2KW (Host machine) AC380V,50/60HZ, 18KW (Shrinking machine) | AC220V, 50/60HZ, 1.5 KW (Host machine) AC380V,50/60HZ, 18KW (Shrinking machine) | AC220V, 50/60HZ, 2.5 KW (Host machine) AC380V,50/60HZ, 24KW (Shrinking machine) | AC220V, 50/60HZ, 3 KW (Host machine) AC380V,50/60HZ, 36KW (Shrinking machine) | AC220V, 50/60HZ, 3 KW (Host machine) AC380V,50/60HZ, 36KW (Shrinking machine) |
Production speed | 6000 BPH | 9000-12000 BPH | 15000-18000 BPH | 22000-24000 BPH | 28000-30000 BPH |
Diameter of bottle body | ∮28mm-∮125mm | ∮28mm-∮125mm | ∮28mm-∮125mm | ∮28mm-∮125mm | ∮28mm-∮125mm |
Length of label | 30mm-250mm | 30mm-250mm | 30mm-250mm | 30mm-250mm | 30mm-250mm |
Thickness of label | 0.035mm-0.13mm | 0.03mm-0.13mm | 0.03mm-0.13mm | 0.03mm-0.13mm | 0.03mm-0.13mm |
Material of label | PVC、 PET、 OPS | PVC、 PET、 OPS | PVC、 PET、 OPS | PVC、 PET、 OPS | PVC、 PET、 OPS |
Size (label sleeving host machine) | L2000mm*W850mm* H2000mm | L780mm*W1200mm* H2000mm | L2100mm*W1100mm*H2000mm | L2100mm*W850mm* H2000mm | L2500mm*W1200mm*H2000mm |
Size (Bulk of steam shrinking label) | L1800mm*W500mm* H1500mm | L1800mm*W500mm* H1500mm | L1800mm*W500mm* H1500mm | L1800mm*W500mm* H1500mm | L1800mm*W500mm* H1500mm |
Steam shrinking tunnel (quantity of steam) | 20Kg/H | 30Kg/H | 30Kg/H | 50Kg/H | 50Kg/H |

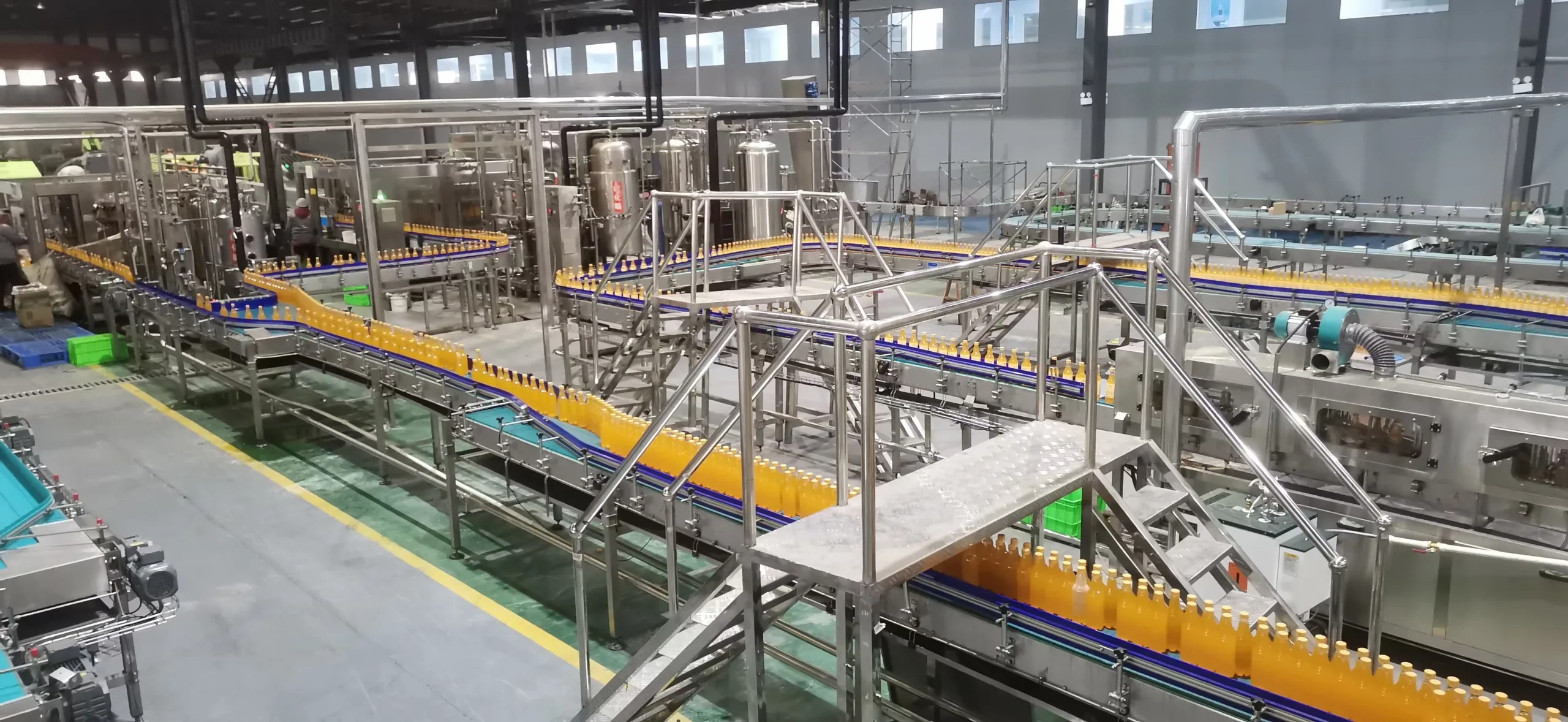

Production Lines Flow Chart
Water treatment system
Water purification machine to treat fresh water for pure, drinking, mineral water. Our plant could make drinking water, mineral water, pure water and potable water from the water sources: Ground, spring, well, river, brackish, lake water and etc.
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Blow molding system
Automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Automatic labeling machine
It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.
Shrink wrapping machine
This Pet Bottle Shrink Wrapping Machine is a kind of automatic unmanned operation of the L type sealing and cutting machine, widely used in mass production packaging line production, suitable for different width and height products. The Pet Bottle Shrink Wrapping Machine also has the function of contact , specially designed for packing small products.
Applications
Features of main body:
- PET Bottled and Tin Canned filling production line products.
- Such as the filling and bottling production line of Mineral Water, Purified Water, Drinking Water, Beverage, Beer, Juice, Dairy,Condiment,etc.
- The PVC shrink sleeve labeling machine is suitable for round bottles, flat, square bottles, curved bottles, cups and other products in food and beverage, medical, daily chemical and other light industries.
