XGF14-12-5 5500BPH Complete Automatic Pure Bottled Water Filling Bottling Production Line

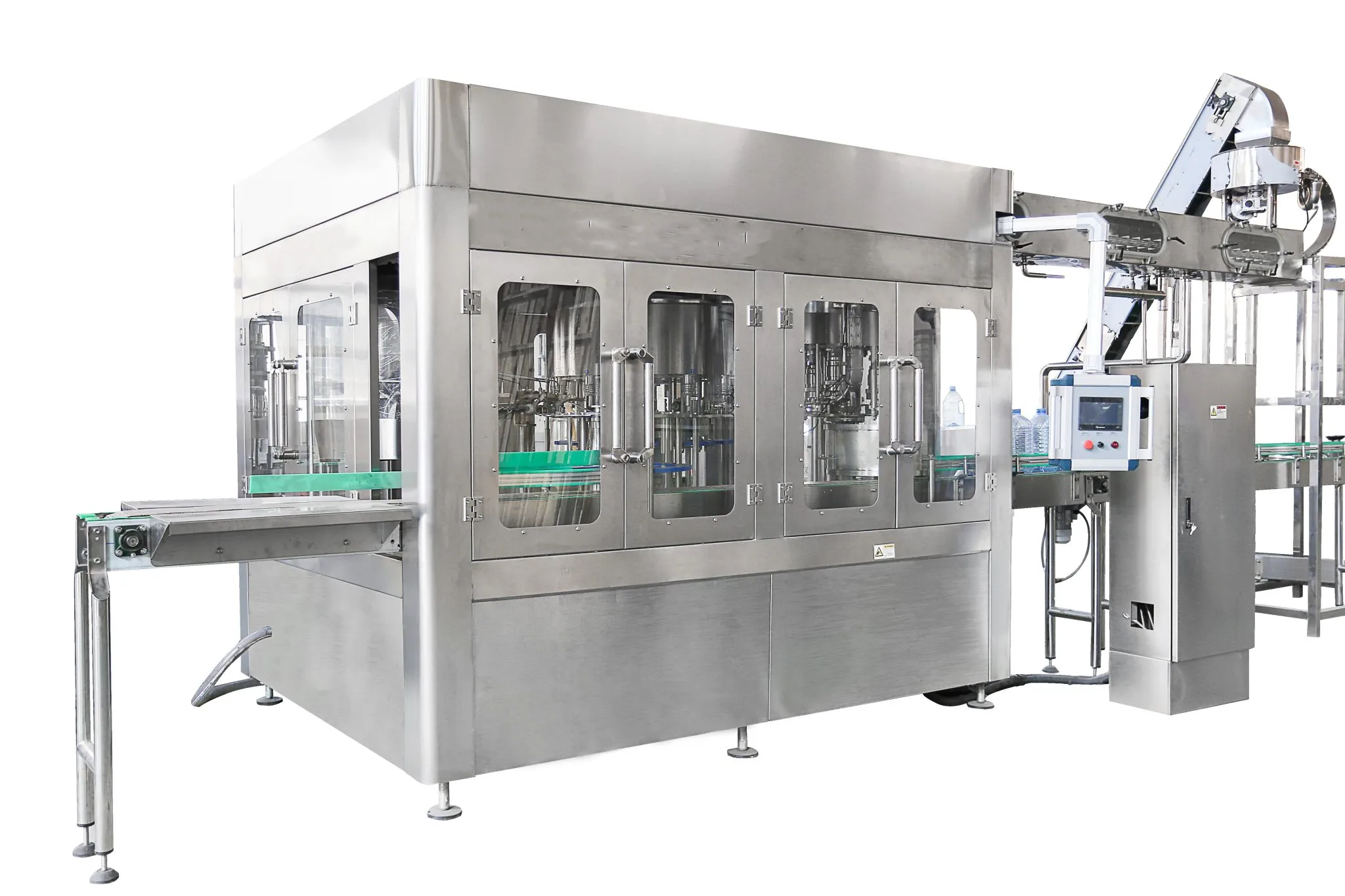

This machine works harmoniously with air-conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process. This machine is used to fill still water into pet bottle and with screw caps capping function. This machine integrated three function: 1. Rinse the empty pet bottle, 2. filling the rinsed bottles, 3. capping the filled bottles
Video
Rinser Part :
All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
304 stainless steel washing pumps
Filler Station :
High precision filling nozzle, PLC variable signal control, ensure high filling precision
Gravity filling, & filling smoothly & steadily
All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean
No bottle no filling
Capper station :
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304 stainless steel construction
No bottle no capping and Automatic stop when lack of bottle

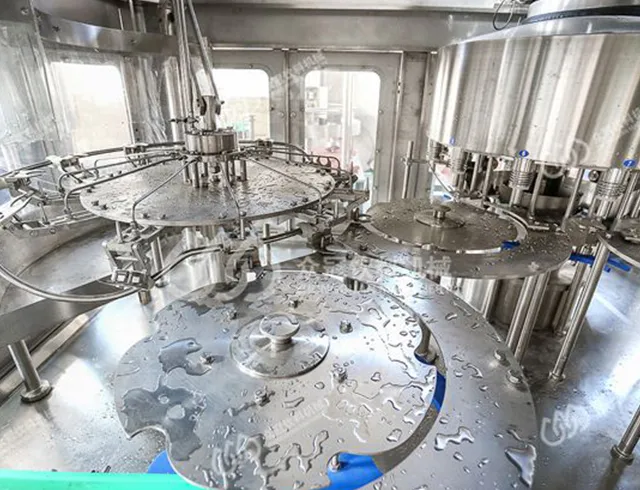

Detailed Images
Machine Parameters
Project Name: Drinking Water Filling Machine | ||||||||
Model | XGF8-8-3 | XGF14-12-5 | XGF16-16-5 | XGF24-24-8 | XGF32-32-8 | XGF40-40-10 | XGF50-50-15 | |
Washing Nos | 8 | 14 | 16 | 24 | 32 | 40 | 50 | |
Filling Nos | 8 | 12 | 16 | 24 | 32 | 40 | 50 | |
Capping Nos | 3 | 5 | 5 | 8 | 8 | 10 | 15 | |
Capacity(BPH) | 2000 | 5500 | 8000 | 12000 | 15000 | 18000 | 24000 | |
Suitable bottle and cap | PET circular or square with screw cap | |||||||
Bottle Volume | 150ml to 2.5Ltr (Customized) | |||||||
Bottle diameter(mm) | Dia50-Dia115mm | |||||||
Bottle heighter | 160-320mm | |||||||
Compress air pressure(Mpa) | 0.3-0.4Mpa | |||||||
Washing medium | Aspetic water | |||||||
Rinsing pressure(Mpa) | >0.06Mpa<0.2Mpa | |||||||
Filling temperature | Room temperature | |||||||
Filling theory | By gravity | |||||||
Total powder | 1.5KW | 2KW | 2.2KW | 2.2KW | 3KW | 7.5KW | 7.5KW | |
Dimension (meter) | 2*1.5*2.5 | 2.4*1.8*2.7 | 2.9*2.2*2.8 | 2.9*2.2*2.8 | 3.4*2.6*2.8 | 4.4*3.3*2.8 | 4.7*3.6*2.8 | |
Weight | ||||||||
| Configuration List | ||
| No | Name | Brand |
| 1 | Main Motor | ABB |
| 2 | Cap Unscrambler Motor | FEITUO(China) |
| 3 | Conveyor Motor | FEITUO(China) |
| 4 | Rinsing Pump | CNP (China) |
| 5 | Solenoid Valve | FESTO |
| 6 | Cylinder | FESTO |
| 7 | Air-T Contactor | FESTO |
| 8 | Pressure Adjust Valve | FESTO |
| 9 | Inverter | MITSUBISHI |
| 10 | Power switch | MIWE(TAIWAN) |
| 11 | Contactor | SIEMENS |
| 12 | Relay | MITSUBISHI |
| 13 | Transformer | MIWE(TAIWAN) |
| 14 | Approx Switch | TURCK |
| 17 | PLC | MITSUBISHI |
| 18 | Touch Screen | Pro-face |
| 19 | Air Components | FESTO |
| 20 | AC Contactor | Schneider |
| 21 | Micro relay | MITSUBISHI |
Applications
A bottled water filling machine line is used to filling mineral water or purified water into a PET bottle from 200ml-2000ml. Different models can satisfy the various requirement of output from 2000BPH to 36000BPH. The machine combines washing, filling, and capping three functions in a body; the whole process is automatic, suitable for PET bottles, plastic bottle filling mineral water, and pure water. Loading way using gravity or micro pressure filling makes the speed faster and more stable, so with the same model, our machine output is higher and more efficient. The machine adopts an advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable. The photoelectric sensor detects all part running state, with a high degree of automation, easy operation.
Applications
A bottled water filling machine line is used to filling mineral water or purified water into a PET bottle from 200ml-2000ml. Different models can satisfy the various requirement of output from 2000BPH to 36000BPH. The machine combines washing, filling, and capping three functions in a body; the whole process is automatic, suitable for PET bottles, plastic bottle filling mineral water, and pure water. Loading way using gravity or micro pressure filling makes the speed faster and more stable, so with the same model, our machine output is higher and more efficient. The machine adopts an advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable. The photoelectric sensor detects all part running state, with a high degree of automation, easy operation.
