Production Reliability – anytime and anywhere
A bottled water filling machine line is used to filling mineral water or purified water into a PET bottle from 200ml-2000ml. Different models can satisfy the various requirement of output from 2000BPH to 36000BPH. The machine combines washing, filling, and capping three functions in a body; the whole process is automatic, suitable for PET bottles, plastic bottle filling mineral water, and pure water. Loading way using gravity or micro pressure filling makes the speed faster and more stable, so with the same model, our machine output is higher and more efficient. The machine adopts an advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable. The photoelectric sensor detects all part running state, with a high degree of automation, easy operation.
| Model | Capacity(BPH) | Bottle Volume | Compress air pressure(Mpa) | Total powder | Dimension (meter) |
| XGF 32-32-8 | 15000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 7.5KW | 3.38*2.58*2.75M |
| XGF 24-24-8 | 12000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 2.2KW | 3.38*2.58*2.75M |
| XGF 8-8-3 | 8000 | 150ml to 2Ltr (Customized) | 0.3-0.4Mpa | 1.5KW | 2.0*1.5*2.5M |
| XGF 14-12-5 | 5500 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 2KW | 2.36*1.77*2.75M |
| XGF 16-16-5 | 8000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 2.2KW | 3.38*2.58*2.75M |
| XGF 80-80-22 | 42000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 19KW | 7.8*6.38*2.75M |
| XGF 72-72-18 | 36000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 15KW | 6.5*4.68*2.75M |
| XGF 60-60-15 | 30000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 15KW | 6.00*4.68*2.75M |
| XGF 50-50-15 | 24000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 7.5KW | 4.72*3.55*2.75M |
| XGF 40-40-10 | 18000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 7.5KW | 4.43*3.28*2.75M |

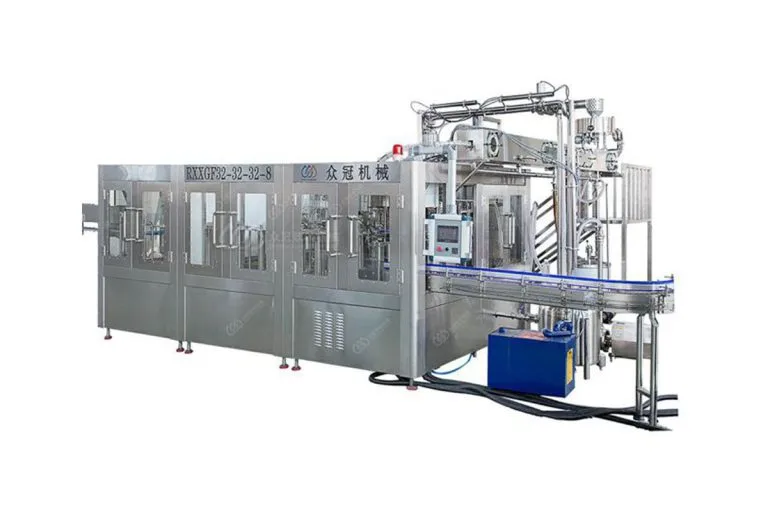

The Fruit Juice Hot Filling Machine, featuring a Wash-filling-filling-capping 4-in-1 unit, is designed for glass or PET bottled juice production. The RXGGF unit proficiently executes bottle pressing, filling, and sealing, reducing material contact for improved sanitation, increased production capacity, and enhanced economic efficiency.
The Fruit Juice Hot Filling Machine, equipped with its Wash-filling-filling-capping 4-in-1 unit, is specialized for producing glass or PET bottled juice. The RXGGF unit adeptly handles bottle pressing, filling, and sealing, minimizing material contact with external elements to improve sanitation, boost production capacity, and enhance economic efficiency.
