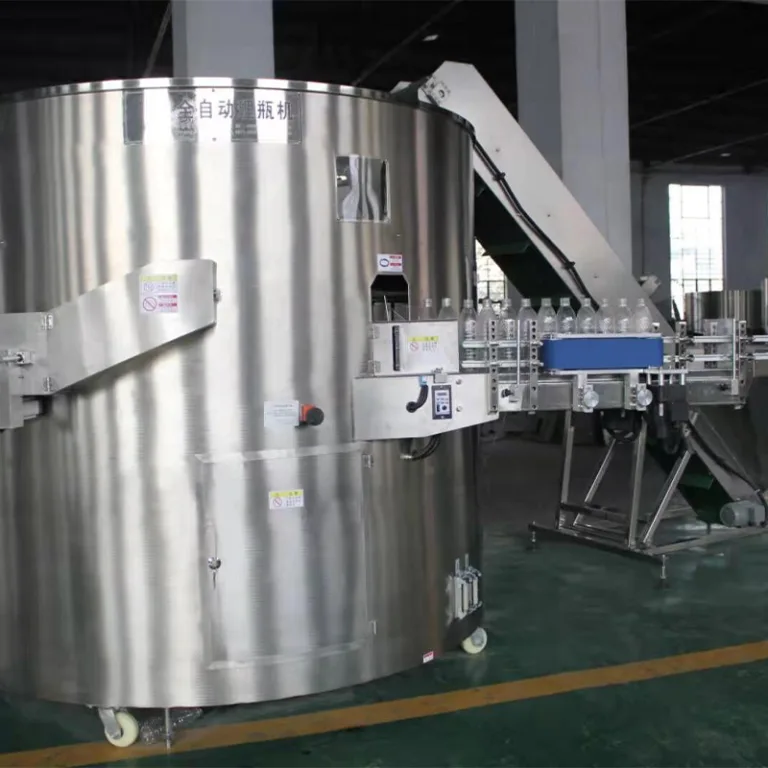

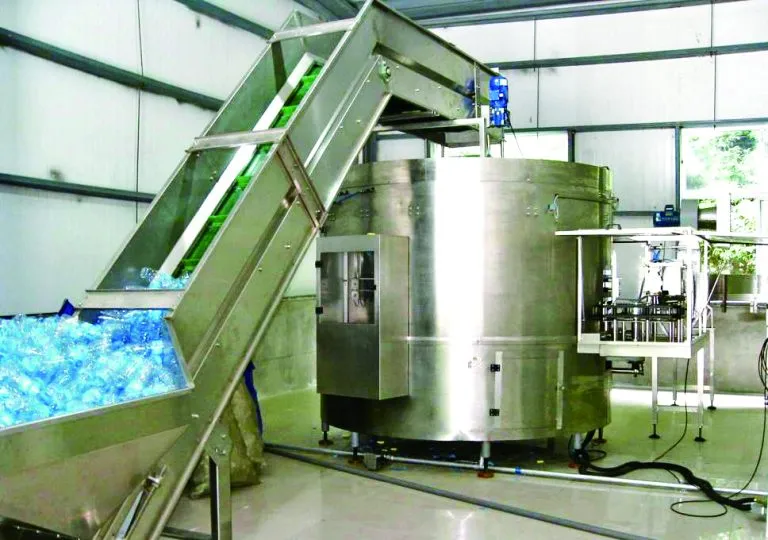

The machine is used for ordering disordered polyester bottles. The disordered bottles are carried into the storing bottle section by elevator. With the help of the pushing force of the rotating disk, the bottles enter their position. With the function of the turning bottle device and the air-flow, the bottles are ordered into bottle mouth-up-position and are carried into the next process with the air-transferring type conveying bottle system.

Speed:1000BPH-40000BPH

Applicable bottle type:All types of bottles can be customised

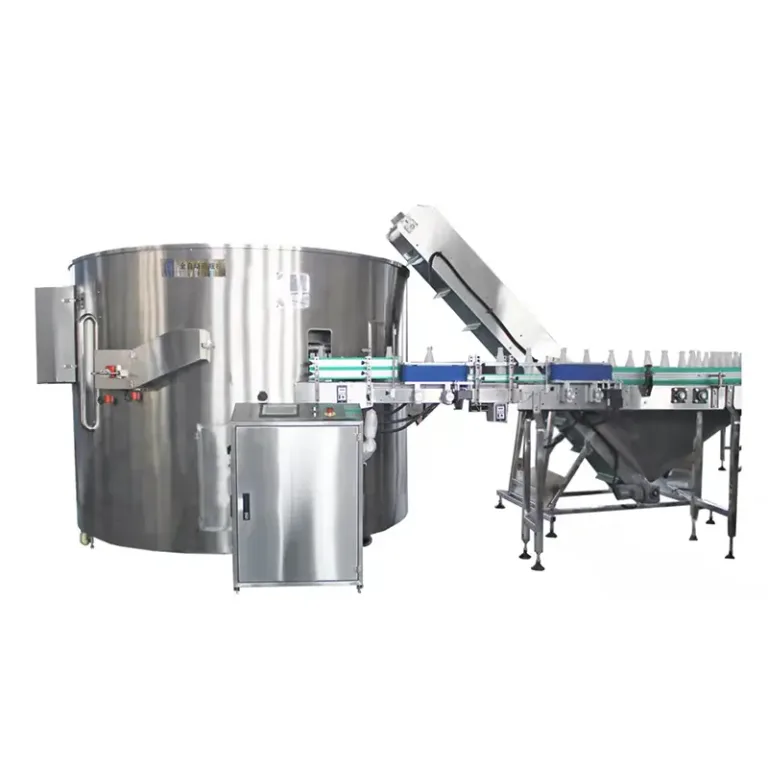

The equipment adopts the lifter and host split design, space-saving, mainly for wide-mouth bottles, the capacity of large differences in bottle finishing, compatibility 50-500ml round flat square bottle adjustable, can also be customised compatible. High-speed centrifugal disc, according to the diameter of the bottle type, bottle type replacement only need to replace the mould ring disassembly is convenient and fast.

Automatic Bottle Sorting Machine is a patented product developed by our company, which is widely used for multi-functional automatic bottle sorting in food, beverage industry and pharmaceutical industry, condiment, juice, milk and other industries.
The machine is customised according to the bottle type provided by the customer.



This machine is used for disordered bottle finishing, scattered and disorderly bottles through the elevator sent into the bottle storage machine bottle ring, by the centrifugal force of the turntable, bottle closing connected to the centrifugal disc, the exit of the multi-stage belt mechanism, through the stabilisation of the bottle body, clamping bottles into the hook claw mechanism, the mouth of the bottle forward to be hooked up to flip, the bottom of the bottle forward can not be hooked, and ultimately, bottle are forward and backward running, and then through the last level of the belt, will be the bottle upright, the bottle finishing process The bottle sorting process is completed, and output into the next process through the air-fed bottle conveyor system. This machine body material adopts high quality stainless steel, other parts also use non-toxic, durable series of materials, electrical, pneumatic system selection of some imported parts, the whole working process with PLC programming control, so the equipment failure rate is low, high reliability.

Applicable bottle type:Any bottle can be customised

Production speed:3000BPH-40000BPH

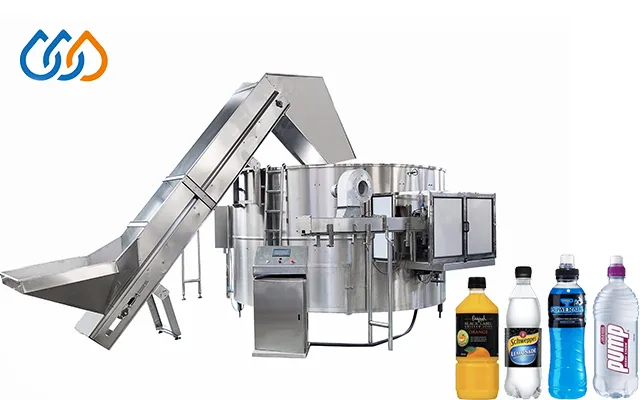

LP-16 Model Push type unscrambler are national advanced bottle unscrambling equipment, which are based on world advanced technology, designed and developed according to our country’s developing trend of high speed and automation of drink’s filling equipment.

The main machine has cylinder appearance with adjustable feet at the bottom for changing machine’s height and level. In the cylinder, there is a rotating cylinder, and outside of rotating cylinder, there is the dropping bottle slot, the inner side is equipped with lifting device, which the amount is the same with dropping bottle slots. At the center of machine, there is a fixed umbrella shape tower. When the lifting device send out short of bottle message according to the bottle detecting device on the tower, bottle will drop onto umbrella shape tower from top center of the machine, then enter lifting device from the edge of tower. Under the action of cam, the lifting device pushes bottle into the bottle slot. After unscrambling in the slot, the bottle rotates along with bottle slot to the exit of unscrambler. The poking bottle starwheel at the exit will push the bottle into air convey way. The starwheel joins shaft of main motor through time geared belt.

The machine is used for ordering disordered bottles, bottles are carried into the storing bottle section of the ordering bottle machine. With help of the pushing force of the rotating disk, bottles enter their position. With the function of the turning bottle device and the air-flow, bottles are ordered into bottle mouth-up-position and carried into the next process with the air-transferring type conveying bottle system. It is automatic controlled by PLC, speed can be adjusted by frequency. It can automatically screen out non-standard bottles.

Applicable bottle type:any bottle all can be customized
