Production Reliability – anytime and anywhere
A bottled water filling machine line is used to filling mineral water or purified water into a PET bottle from 200ml-2000ml. Different models can satisfy the various requirement of output from 2000BPH to 36000BPH. The machine combines washing, filling, and capping three functions in a body; the whole process is automatic, suitable for PET bottles, plastic bottle filling mineral water, and pure water. Loading way using gravity or micro pressure filling makes the speed faster and more stable, so with the same model, our machine output is higher and more efficient. The machine adopts an advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable. The photoelectric sensor detects all part running state, with a high degree of automation, easy operation.
| Model | Capacity(BPH) | Bottle Volume | Compress air pressure(Mpa) | Total powder | Dimension (meter) |
| XGF 32-32-8 | 15000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 7.5KW | 3.38*2.58*2.75M |
| XGF 24-24-8 | 12000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 2.2KW | 3.38*2.58*2.75M |
| XGF 8-8-3 | 8000 | 150ml to 2Ltr (Customized) | 0.3-0.4Mpa | 1.5KW | 2.0*1.5*2.5M |
| XGF 14-12-5 | 5500 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 2KW | 2.36*1.77*2.75M |
| XGF 16-16-5 | 8000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 2.2KW | 3.38*2.58*2.75M |
| XGF 80-80-22 | 42000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 19KW | 7.8*6.38*2.75M |
| XGF 72-72-18 | 36000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 15KW | 6.5*4.68*2.75M |
| XGF 60-60-15 | 30000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 15KW | 6.00*4.68*2.75M |
| XGF 50-50-15 | 24000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 7.5KW | 4.72*3.55*2.75M |
| XGF 40-40-10 | 18000 | 150ml to 2.5Ltr (Customized) | 0.3-0.4Mpa | 7.5KW | 4.43*3.28*2.75M |
The Fruit Juice Hot Filling Machine, featuring a Wash-filling-filling-capping 4-in-1 unit, is designed for glass or PET bottled juice production. The RXGGF unit excels at bottle pressing, filling, and sealing, streamlining operations to minimize material contact, thereby enhancing sanitation, production capacity, and economic efficiency.
The Fruit Juice Hot Filling Machine, equipped with its Wash-filling-filling-capping 4-in-1 unit, is specialized for producing glass or PET bottled juice. The RXGGF unit adeptly handles bottle pressing, filling, and sealing, minimizing material contact with external elements to improve sanitation, boost production capacity, and enhance economic efficiency.
The filling process employs a bottle bottom holding mechanism to transport bottles into the filling machine through the bottle inlet screw, facilitated by a threaded bottle star wheel. Subsequently, the bottles are secured by a lifting device, allowing for controlled vertical movement, guided by a lifting cam and down pressure cam.
The filling method employed is precision filling. Once the bottle neck reaches the valve and establishes contact, the valve opens, and the filling process commences. Upon completion of filling, the bottle neck descends, disengaging from the valve. Simultaneously, the bottle is guided out of the filling machine using the bottle-holding mechanism and transferred to a conveyor chain via the threaded bottle star wheel.
The Fruit Juice Hot Filling Machine comes in two variations: the Wash-filling-capping 3-in-1 unit and the washing-fruit pulps filling-liquid juice filling-capping 4-in-1 machine. These machines are designed for the production of drinking juice in glass or PET bottles.

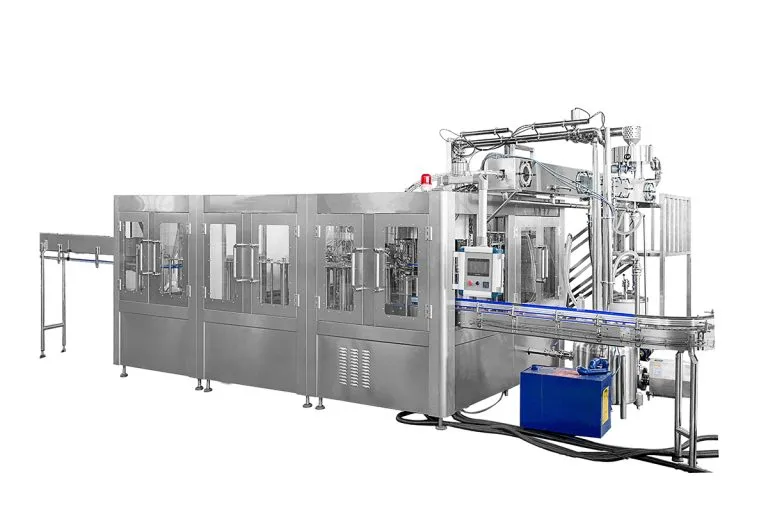

The RXGF Wash-filling-capping 3-in-1 unit is an all-in-one juice machinery that completes the entire process, including bottle washing, filling, and sealing. This streamlined operation minimizes contact between the materials and external factors, thereby improving both efficiency and product quality.
This machine works with an air-conveyor belt and securely holds bottles by the neck to prevent falls. It fills still water into PET bottles and features a screw caps capping function. It integrates three functions: rinsing, filling, and capping.
The Fruit Juice Hot Filling Machine has two variants: the Wash-filling-capping 3-in-1 unit and the washing-fruit pulps filling-liquid juice filling-capping 4-in-1 machine, designed for glass or PET bottled drinking juice production.
This Fruit Juice Hot Filling Machine Wash-filling-capping 3-in-1 unit is used to produce glass/PET bottled drinking juice. The RXGF Wash-filling-capping 3-in-1 unit:juice Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Juice and Still Beverage Drink Bottle Filling Machines are essential equipment in the beverage industry, designed to streamline the process of filling bottles with various types of juices and still beverages. These machines are meticulously engineered to ensure precision, efficiency, and hygiene, meeting the stringent standards of modern beverage production.
Our Juice and Still Beverage Drink Bottle Filling Machines are equipped with advanced technology to optimize the filling process, maximizing productivity while minimizing downtime.
With precise filling mechanisms, these machines ensure accurate filling levels, maintaining consistency and quality throughout the production cycle.
Whether it’s fruit juices, iced teas, flavored water, or other still beverages, our machines are adaptable to a wide range of products, offering versatility for diverse production needs.
Hygiene is paramount in beverage production. Our machines are constructed with materials that meet food-grade standards and are designed for easy cleaning and sanitation, ensuring the highest levels of hygiene and product safety.
Our machines feature automated filling processes, reducing manual intervention and minimizing the risk of human error.
Tailor the filling parameters to meet specific product requirements, including fill volume, speed, and bottle size, providing flexibility for different beverage formulations.
Integrated CIP systems facilitate thorough cleaning of the machine components, maintaining sanitation standards and preventing cross-contamination.
User-friendly touchscreen interfaces allow for intuitive operation and monitoring of the filling process, enabling easy adjustments and troubleshooting.
With high-speed filling capabilities, our machines can accommodate high-volume production demands, ensuring efficient throughput without compromising on quality.
Ideal for large-scale beverage manufacturing plants, our Juice and Still Beverage Drink Bottle Filling Machines offer the capacity and efficiency required to meet high production volumes.
Even small to medium-sized beverage companies can benefit from our machines, as they provide cost-effective solutions for automating the filling process and improving productivity.
Contract manufacturers can utilize our machines to offer filling services to a diverse clientele, accommodating various beverage formulations and packaging requirements with ease.
Our machines are compatible with a wide range of bottle sizes and materials, including PET, glass, and HDPE bottles, with customizable filling configurations to suit different bottle specifications.
Yes, our machines feature adjustable filling parameters to accommodate a variety of beverage viscosities, from thin juices to thicker smoothies and concentrates.
Our machines are designed with hygiene in mind, incorporating CIP systems for thorough cleaning and sanitation between production runs. Additionally, the materials used in construction meet food-grade standards to ensure product safety.
While our focus is on still beverages, we offer specialized equipment for carbonated beverage filling, tailored to the unique requirements of carbonation and bottle pressure control.
We offer comprehensive after-sales support, including installation, training, maintenance services, and access to spare parts to ensure the continued performance and longevity of our machines.
In conclusion, our Juice and Still Beverage Drink Bottle Filling Machines offer unparalleled efficiency, precision, and versatility for beverage producers across various scales. Whether you’re a large-scale manufacturer or a budding entrepreneur in the beverage industry, our machines are engineered to meet your production needs with reliability and excellence.
