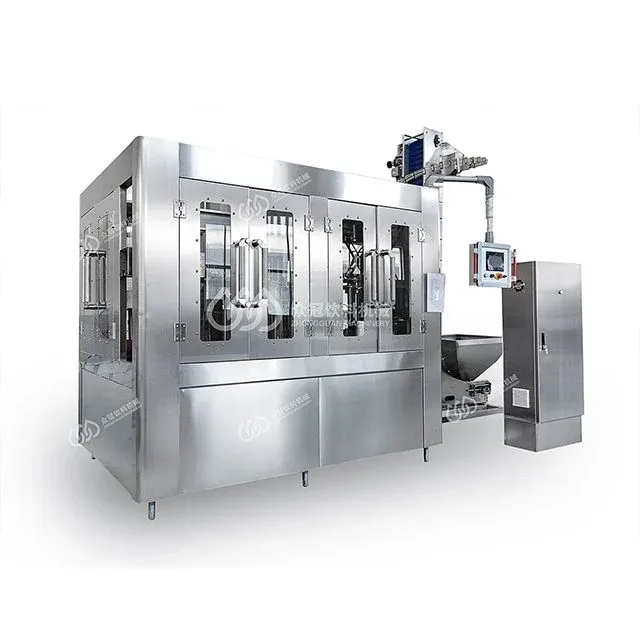

Drinking Water Filling Machine

Production Reliability – anytime and anywhere

Drinking Water Filling Machine

A bottled water filling machine line is used to filling mineral water or purified water into a PET bottle from 200ml-2000ml. Different models can satisfy the various requirement of output from 2000BPH to 36000BPH. The machine combines washing, filling, and capping three functions in a body; the whole process is automatic, suitable for PET bottles, plastic bottle filling mineral water, and pure water. Loading way using gravity or micro pressure filling makes the speed faster and more stable, so with the same model, our machine output is higher and more efficient. The machine adopts an advanced Mitsubishi programmable controller (PLC) to control the machine to run automatically, interworking with inverter running more stable and reliable. The photoelectric sensor detects all part running state, with a high degree of automation, easy operation.

Ideal for large water bottling lines, Stainless steel gripper prevents contamination, High-speed filling valve for rapid, precise filling, All parts food-grade stainless steel or plastic, Electric system meets food hygiene standards, Helical bottle-out starwheel for easy bottle size changes

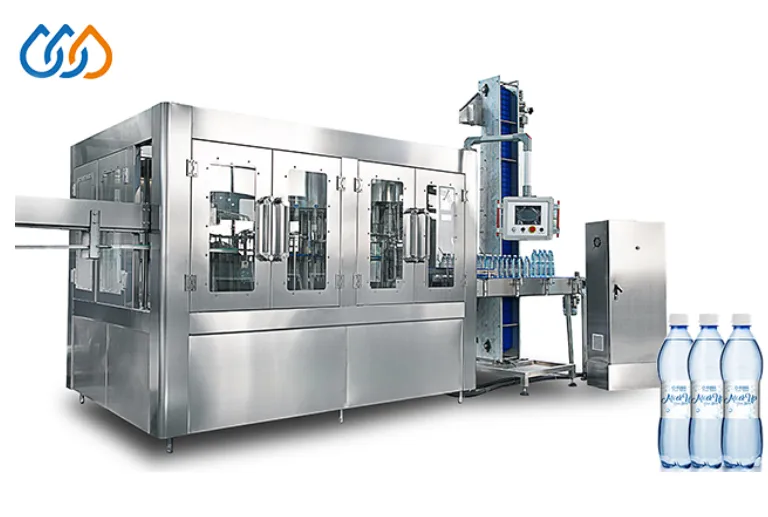

  • Model: XGF 80-80-22
  • Capacity(BPH): 42000
  • Bottle Volume: 150ml to 2.5Ltr (Customized); Bottle diameter(mm): Dia50-Dia115mm; Bottle heighter: 160-320mm
  • Compress air pressure(Mpa): 0.3-0.4Mpa
  • Total powder: 19KW
  • Dimension  (meter): 7.8*6.38*2.75M

3-in-1 filling machine, combined with rinsing, filling and capping. It is used for mineral water, pure water, and other drinking water filling in PET bottles ranges from 200ml-2L, and capacity from 2000-36000BPH.

  • Model: XGF 72-72-18
  • Capacity(BPH): 36000
  • Bottle Volume: 150ml to 2.5Ltr (Customized); Bottle diameter(mm): Dia50-Dia115mm; Bottle heighter: 160-320mm
  • Compress air pressure(Mpa): 0.3-0.4Mpa
  • Total powder: 15KW
  • Dimension  (meter): 6.5*4.68*2.75M

Beverage Machinery produces various beverages, Completes washing, filling, and sealing processes, Reduces material and outsider contact time, Improves sanitary conditions, capacity, and efficiency, Complete Bottled Mineral Water / Pure Water Production Line, Automatic process with integrated functions

  • Model: XGF 32-32-8
  • Capacity(BPH): 15000
  • Bottle Volume: 150ml to 2.5Ltr (Customized); Bottle diameter(mm): Dia50-Dia115mm; Bottle heighter: 160-320mm
  • Compress air pressure(Mpa): 0.3-0.4Mpa
  • Total powder: 7.5kw
  • Dimension  (meter): 3.38*2.58*2.75M

Fully automatic process, Faster and stable filling, Higher output and efficiency, Bottle range: 200ml-2L, Capacity: 2000-24000BPH

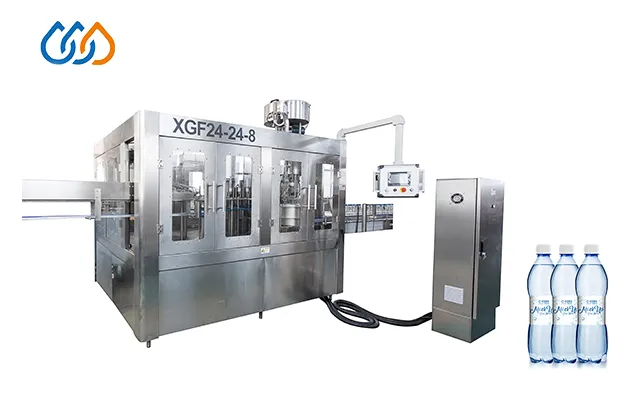

  • Model: XGF 24-24-8
  • Capacity(BPH): 12000
  • Bottle Volume: 150ml to 2.5Ltr (Customized); Bottle diameter(mm): Dia50-Dia115mm; Bottle heighter: 160-320mm
  • Compress air pressure(Mpa): 0.3-0.4Mpa
  • Total powder: 2.2kw
  • Dimension  (meter): 3.38*2.58*2.75M

3-in-1 filling machine, combined with rinsing, filling and capping. It is used for mineral water, pure water, and other drinking water filling in PET bottles ranges from 200ml-2L, and capacity from 2000-24000BPH.

  • Model: XGF 14-12-5
  • Capacity(BPH): 5500
  • Bottle Volume: 150ml to 2.5Ltr (Customized); Bottle diameter(mm): Dia50-Dia115mm; Bottle heighter: 160-320mm
  • Compress air pressure(Mpa): 0.3-0.4Mpa
  • Total powder: 2KW
  • Dimension  (meter): 2.36*1.77*2.75M

Works with air-conveyor belt, Neck-holds bottles for stability, Fills still water into PET bottles, Includes screw caps capping function, Integrates rinsing, filling, and capping functions

  • Model: XGF 16-16-5
  • Capacity(BPH): 8000
  • Bottle Volume: 150ml to 2.5Ltr (Customized); Bottle diameter(mm): Dia50-Dia115mm; Bottle heighter: 160-320mm
  • Compress air pressure(Mpa): 0.3-0.4Mpa
  • Total powder: 2.2KW
  • Dimension  (meter): 3.38*2.58*2.75M

3-in-1 filling machine, combined with rinsing, filling and capping. It is used for mineral water, pure water, and other drinking water filling in PET bottles ranges from 200ml-2L, and capacity from 2000-24000BPH.

  • Bottle Volume: 150ml to 2.5Ltr (Customized); Bottle diameter(mm): Dia50-Dia115mm; Bottle heighter: 160-320mm
  • Compress air pressure(Mpa): 0.3-0.4Mpa
  • Total powder: 1.5KW-7.5KW

Specializes in 3L-10L PET bottle pure water filling machines, Two equipment structures: rotary and straight line, Output range: 100-1000 bottles per hour, Customizable according to customer needs, Achieves washing, filling, and sealing in one process

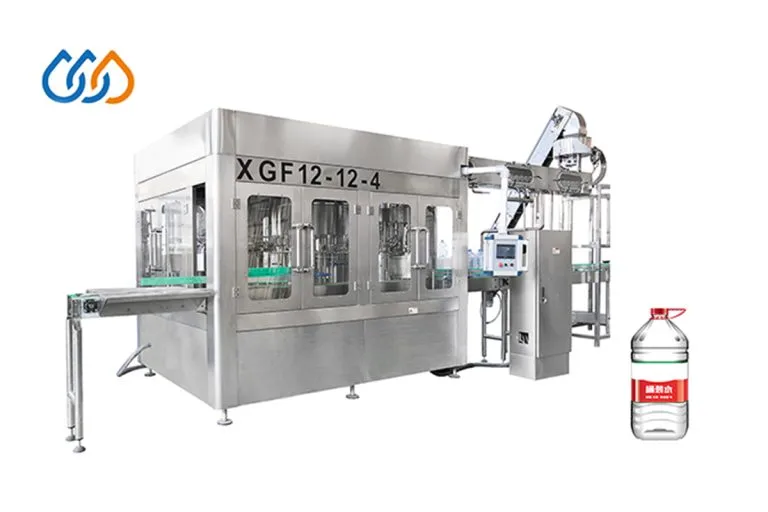

  • Model: XGF12-12-4
  • Production Output: 5000 ML CAPACITY 1,500BPH
  • Bottle Volume: 2000 to 20000ml
  • Total powder: 3.8KW

Fully automatic 3-10L water filling machine, PLC and touch screen control, Accurate filling, stable operation, Low noise, wide adjustment range, Digitally adjustable measurement, High-quality stainless steel construction, Beautiful appearance, GMP compliant

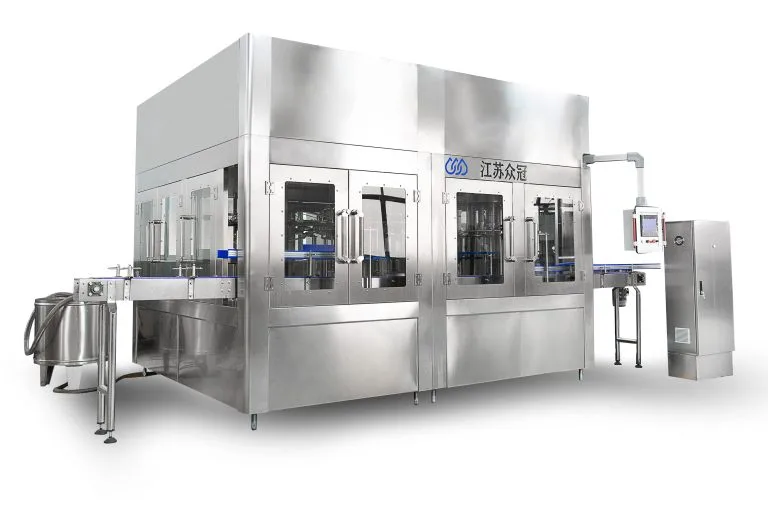

  • Model: XGF20-20-5
  • Production Output: 5000 M20222 CAPACITY 2000BPH
  • Total Power: 4.5KW
  • Bottle volume: 2000 to 20000ml

Fully automatic 3-10L water filling machine, PLC and touch screen control, Accurate filling, stable operation, Low noise, wide adjustment range, Digitally adjustable measurement, High-quality stainless steel construction, Beautiful appearance, GMP compliant

  • Model: XGF20-20-5
  • Total Power: 4.5KW
